1996 Kawasaki GPZ 1100 ABS Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 1996 Kawasaki GPZ 1100 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

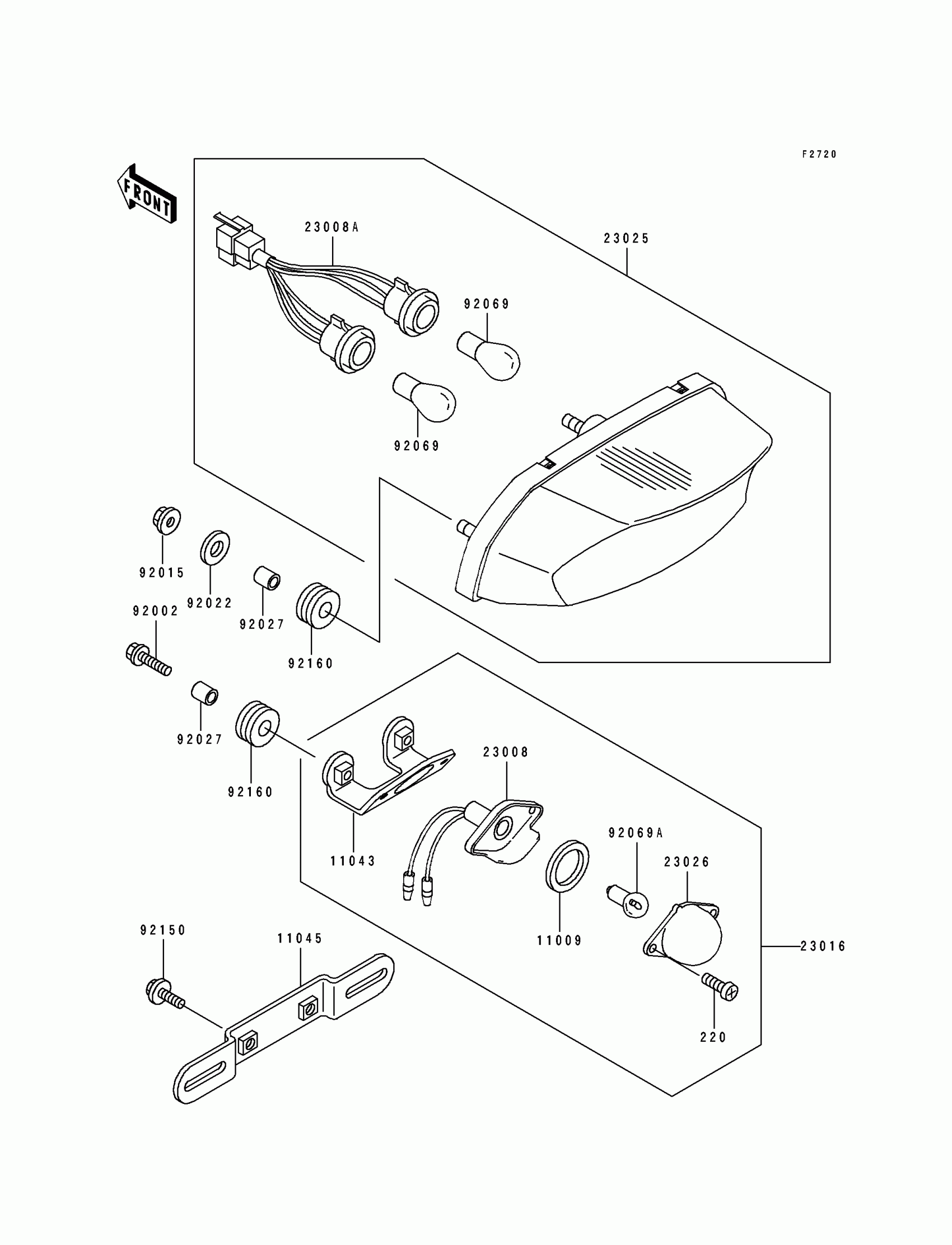

1996 Kawasaki GPZ 1100 ABS Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,LICENSE PLATE LAMP

11009-1372

1
Out of stock

11043

BRACKET,LICENSE PLATE LAMP

11043-1497

1
Out of stock

11045

BRACKET,LICENSE

11045-1387

1
Out of stock

23008

SOCKET-ASSY,LICENSE PLATE LAMP

23008-1221

1
Out of stock

23008A

SOCKET-ASSY,TAIL LAMP

23008-1413

1
Out of stock

23016

LAMP-ASSY,LICENSE PLATE

23016-1053

1
Out of stock

23025

LAMP-TAIL

23025-1246

1
Out of stock

23026

LENS,LAMP

23026-1054

1
Out of stock

92002

BOLT,6X25

92002-1135

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1
Out of stock

92022

WASHER,6.5X20X1.6

92022-1557

1
Out of stock

92027

COLLAR,6.8X10X12

92027-162

1
Out of stock

92069

BULB,12V 27/8W

92069-059

1
Out of stock

92069A

BULB,12V 8W

92069-1012

1
Out of stock

92150

BOLT,6X16

92150-1909

1
Out of stock

92160

DAMPER

92160-1162

1
Out of stock

220

SCREW PAN HEAD 4X10

220B0410

1
Out of stock
