1996 Kawasaki GPZ 1100 ABS Chassis Electrical Equipment Diagram

← All diagrams

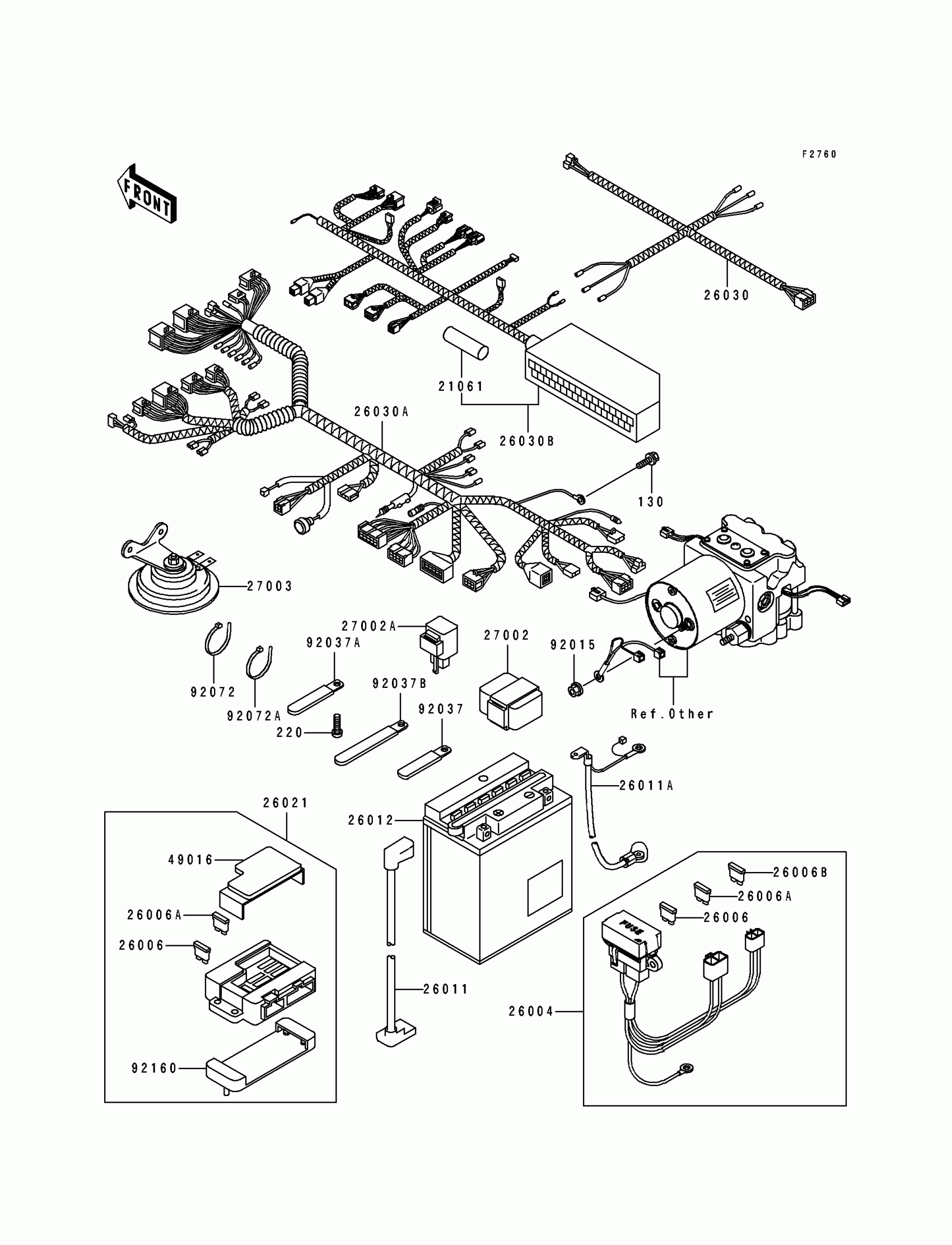

Find the part on the Chassis Electrical Equipment diagram for your 1996 Kawasaki GPZ 1100 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Kawasaki GPZ 1100 ABS Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21061

RECTIFIER

21061-1060

1
Out of stock

26004

FUSE-ASSY

26004-1103

1
Out of stock

26006

FUSE,BLADE,30A,GREEN

26006-1067

1
Out of stock

26006A

FUSE,10A-R

26006-1068

1
Out of stock

26006B

FUSE,15A-B

26006-1069

1
Out of stock

26011

WIRE-LEAD,BATTERY(+)

26011-1615

1
Out of stock

26011A

WIRE-LEAD,BATTERY(-)

26011-1630

1
Out of stock

26012

BATTERY,YTX14-BS,12V 12AH

26012-1279

1
Out of stock

26021

JUNCTION BOX

26021-1096

1
Out of stock

26030

HARNESS,FR

26030-1340

1
Out of stock

26030A

HARNESS,MAIN

26030-1342

1
Out of stock

26030B

HARNESS,A.B.S.

26030-1399

1
Out of stock

27002

RELAY-ASSY

27002-1065

1
Out of stock

27002A

RELAY-ASSY,SIGNAL LAMP

27002-1092

1
Out of stock

27003

HORN

27003-1385

1
Out of stock

49016

COVER-SEAL,FUSE

49016-1177

1
Out of stock

92015

NUT,FLANGED,5MM

92015-1656

1
Out of stock

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

1
Out of stock

92037A

CLAMP,L=45

92037-1539

1
Out of stock

92037B

CLAMP

92037-1993

1
Out of stock

92072

BAND,L=202

92072-1195

1
Out of stock

92072A

BAND,L=365

92072-1197

1
Out of stock

92160

DAMPER,JUNCTION BOX

92160-1650

1
Out of stock

130

BOLT-FLANGED,6X12

130J0612

1
Out of stock

220

SCREW-PAN-CROS,5X10

220C0510

1
Out of stock
