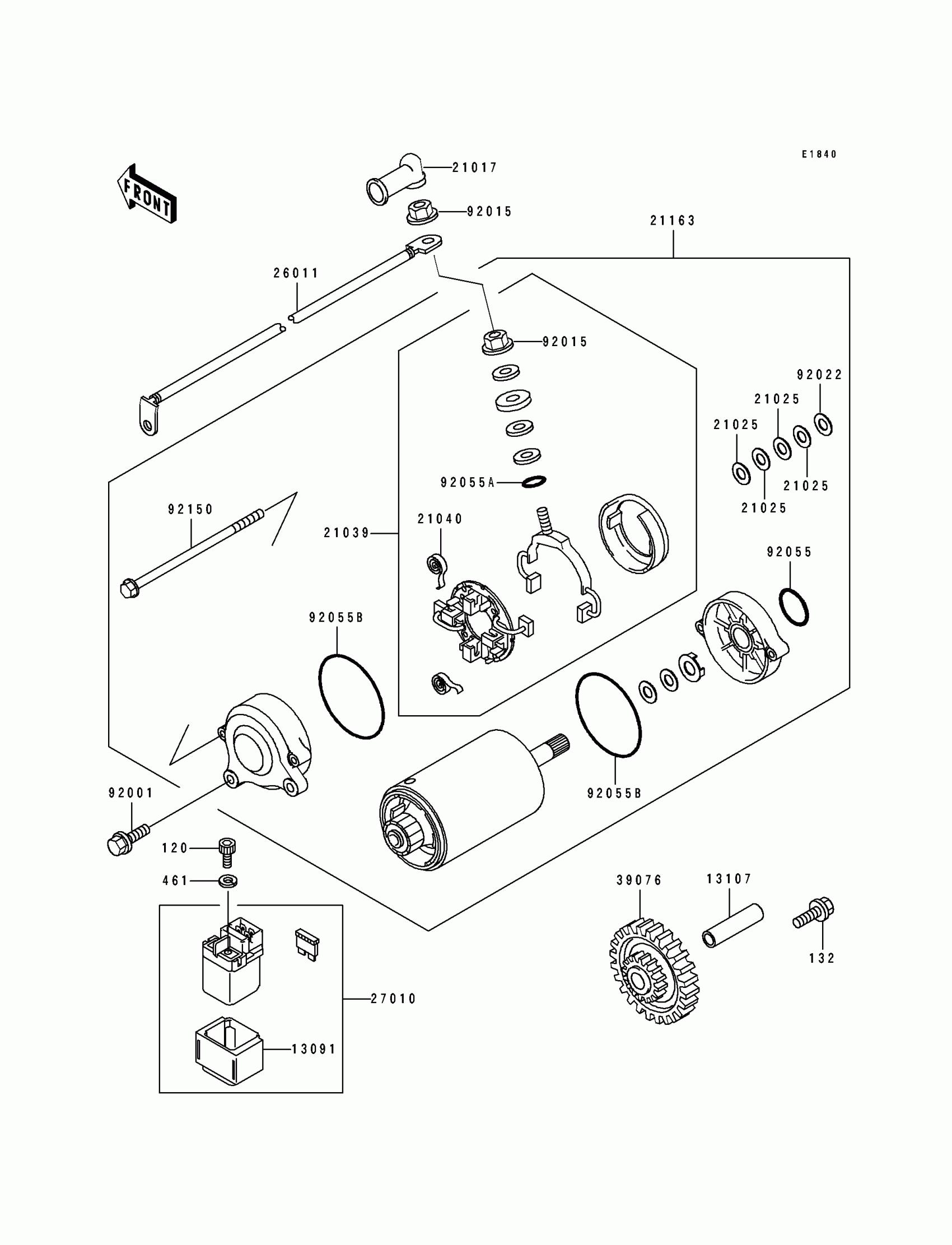

Find the part on the Starter Motor diagram for your 1996 Kawasaki GPZ 1100 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Kawasaki GPZ 1100 ABS Starter Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13091

HOLDER,SWITCH

13091-1883

1

$7.47

In stock

13107

SHAFT,IDLE GEAR

13107-1106

1
Out of stock

21017

GROMMET,STARTER TERMINAL

21017-017

1
Out of stock

21025

WASHER,9.1X18X0.2

21025-011

1
Out of stock

21039

BRUSH,CARBON

21039-1060

1
Out of stock

21040

SPRING-BRUSH

21040-1055

1
Out of stock

21163

STARTER-ELECTRIC

21163-1161

1
Out of stock

26011

WIRE-LEAD

26011-1613

1
Out of stock

27010

SWITCH,MAGNETIC

27010-1347

1
Out of stock

39076

1

$128.21

In stock

92001

BOLT,6X20

92001-1947

1
Out of stock

92015

NUT,STARTER MOTOR

92015-1476

1
Out of stock

92022

WASHER,9.1X18X0.8

92022-1132

1
Out of stock

92055

RING-O

92055-1276

1
Out of stock

92055A

RING-O,4.5X2.0

92055-1370

1
Out of stock

92055B

RING-O,STARTER MOTOR

92055-1381

1
Out of stock

92150

BOLT,5X110

92150-1143

1
Out of stock

120

BOLT-SOCKET,5X10

120S0510

1
Out of stock

132

BOLT-FLANGED-SMALL

132G0612

1
Out of stock

461

WASHER-SPRING,5MM,BLACK

461K0500

1
Out of stock
