1996 Kawasaki GPZ 1100 ABS Ignition Switch/locks/reflectors Diagram

← All diagrams

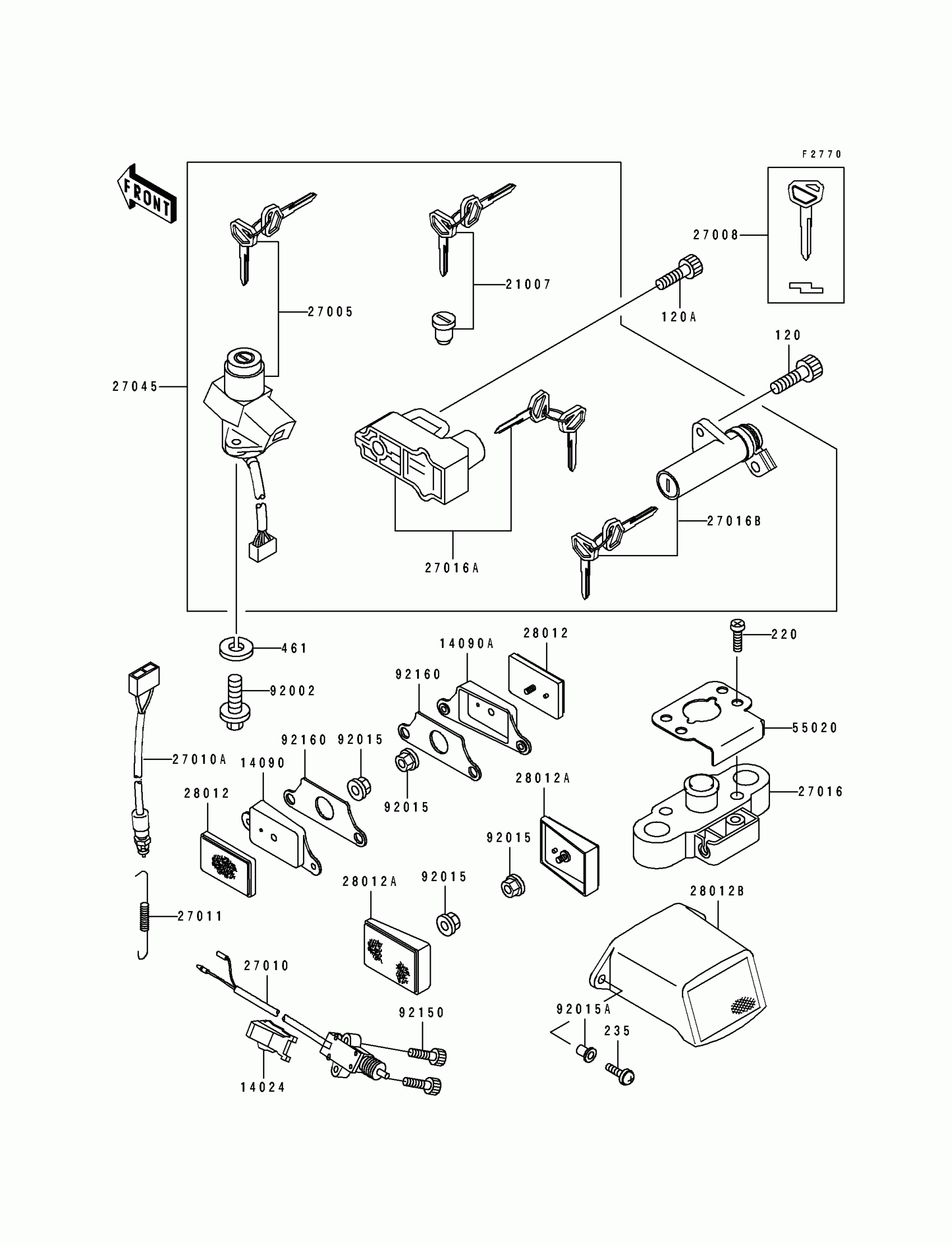

Find the part on the Ignition Switch/locks/reflectors diagram for your 1996 Kawasaki GPZ 1100 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Kawasaki GPZ 1100 ABS Ignition Switch/locks/reflectors Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14024

1

$8.88

In stock

14090

COVER,REFLECTOR,FR,LH

14090-1562

1
Out of stock

14090A

COVER,REFLECTOR,FR,RH

14090-1563

1
Out of stock

21007

ROTOR,LOCK,TANK CAP

21007-5037

1
Out of stock

27005

SWITCH-ASSY-IGNITION

27005-5101

1
Out of stock

27008

KEY-LOCK,BLANK

27008-1173

1
Out of stock

27010

SWITCH,SIDE STAND

27010-1226

1
Out of stock

27010A

SWITCH,BRAKE LAMP

27010-1357

1
Out of stock

27011

SPRING,BRAKE LAMP SWITCH

27011-011

1
Out of stock

27016

LOCK-ASSY,SEAT STRIKER

27016-1098

1
Out of stock

27016A

LOCK-ASSY,HELMET

27016-5203

1
Out of stock

27016B

LOCK-ASSY,SEAT

27016-5205

1
Out of stock

27045

SWITCH-ASSY

27045-5012

1
Out of stock

28012

REFLECTOR-REFLEX

28012-1003

1
Out of stock

28012A

REFLECTOR-REFLEX,RR

28012-1056

1
Out of stock

28012B

REFLECTOR-REFLEX,RR

28012-1066

1
Out of stock

55020

GUARD,SEAT STRIKER

55020-1498

1
Out of stock

92002

BOLT,TORX,6X16

92002-1333

1
Out of stock

92015

NUT,FLANGED,5MM

92015-1259

1
Out of stock

92015A

NUT

92015-1700

1
Out of stock

92150

BOLT,SOCKET,5X22

92150-1491

1
Out of stock

92160

DAMPER,REFLECTOR

92160-1586

1
Out of stock

120

BOLT-SOCKET,5X12

120S0512

1
Out of stock

120A

BOLT-SOCKET,6X16

120S0616

1
Out of stock

220

SCREW-PAN HEAD,6X30

220C0630

1
Out of stock

235

SCREW-PAN-WP-CROS,6X20

235C0620

1
Out of stock

461

WASHER-SPRING

461L0600

1
Out of stock
