2000 Yamaha GP800 (GP800Y) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 2000 Yamaha GP800 (GP800Y), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

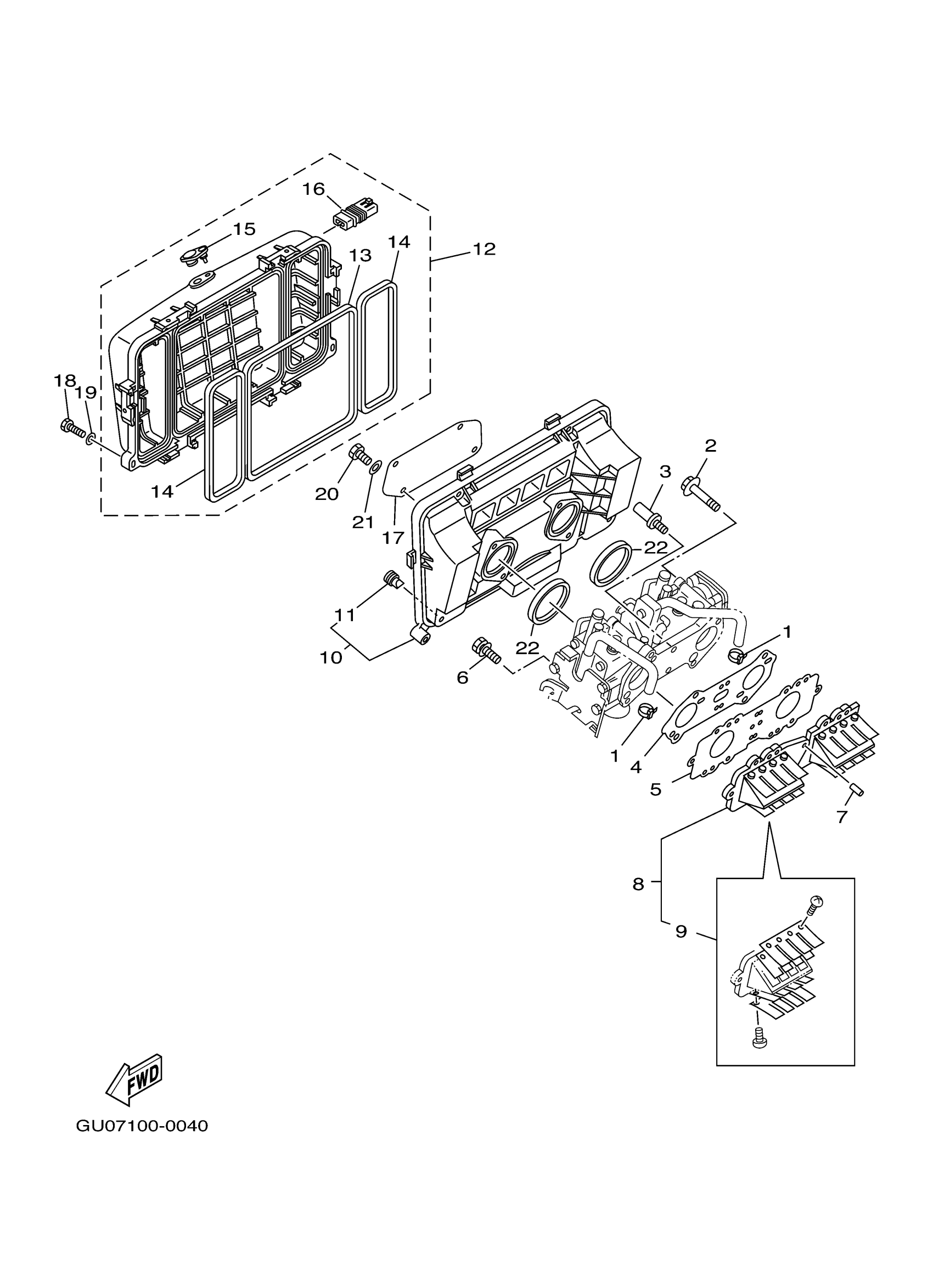

2000 Yamaha GP800 (GP800Y) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLAMP

90465-10098-00

1

$2.24

In stock

2

BOLT, WASHER BASED

90105-08M86-00

1

$13.14

In stock

3

BOLT

90109-06M00-00

1
Out of stock

4

. GASKET, MANIFOLD

66E-13556-00-00

1

$21.99

In stock

5

PLATE,REED VALVE

66E-13624-10-94

1

$77.99

In stock

6

BOLT, WITH WASHER(61B)

97513-06525-00

1

$1.88

In stock

7

. PIN, DOWEL

93606-19M23-00

1

$2.62

In stock

8

REED VALVE ASSY

66E-13610-00-00

1

$161.99

In stock

9

. REED SET

66E-W0004-00-00

1
Out of stock

10

COVER, CLEANER CASE 2

66E-1441E-00-00

1
Out of stock

11

. RUBBER, SEAL 2

66E-42717-00-00

1
Out of stock

12

COVER SUB ASSY

66E-14480-19-00

1

$244.99

In stock

13

. SEAL

66E-14457-10-00

1
Out of stock

14

. SEAL

66E-14452-00-00

1

$26.49

In stock

15

GROMMET

6K8-14435-00-00

1

$11.49

In stock

16

. HOLDER

66E-13898-11-00

1
Out of stock

17

ELEMENT, AIR CLEANER

66E-14451-00-00

1
Out of stock

18

BOLT(J52)

97080-06035-00

—

$4.49

In stock

19

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

20

BOLT, HEXAGON

97013-06045-00

—

$1.51

In stock

21

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

22

. O-RING

66E-13473-00-00

1

$5.14

In stock
