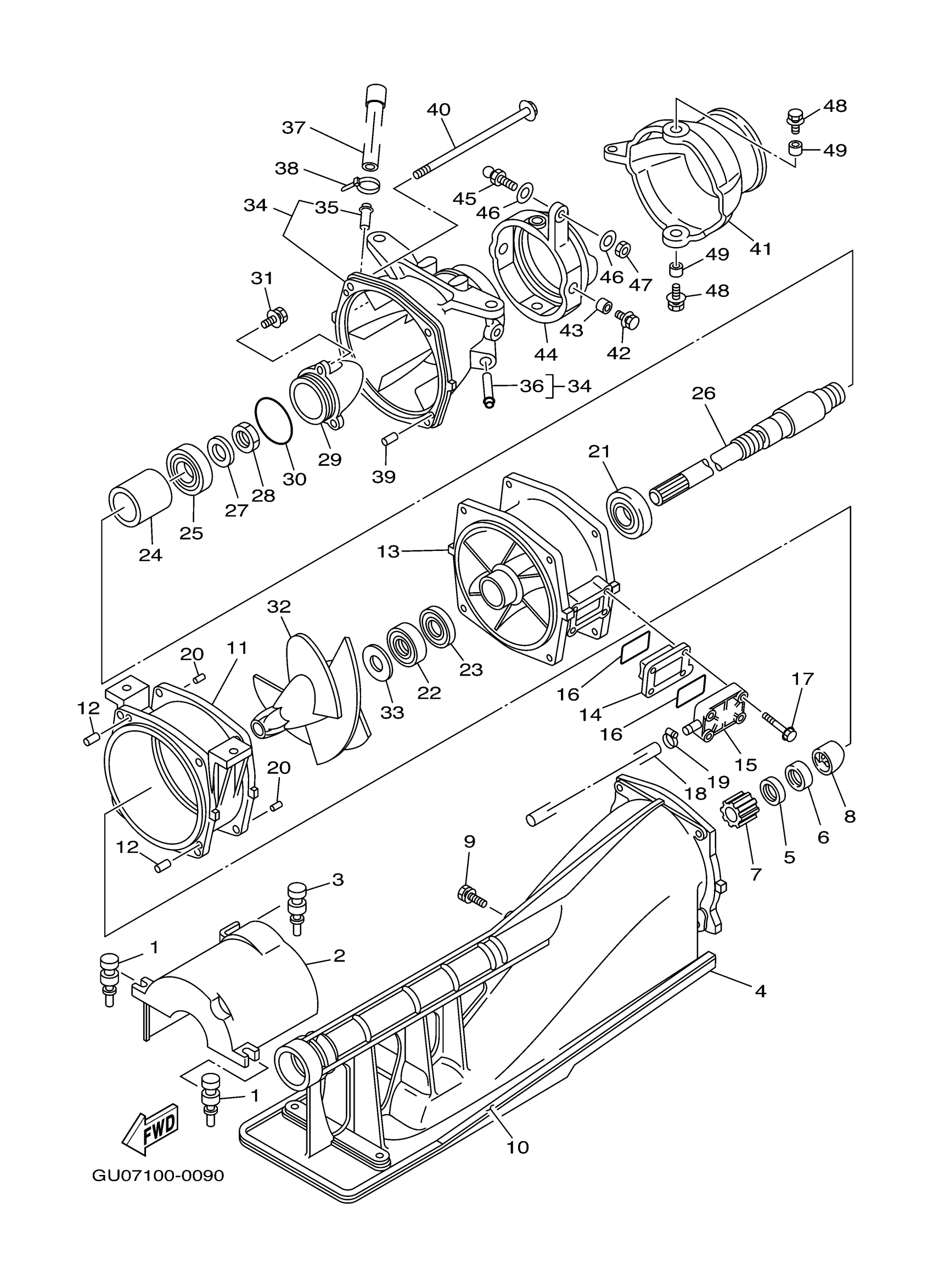

Find the part on the JET Unit 1 diagram for your 2000 Yamaha GP800 (GP800Y), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2000 Yamaha GP800 (GP800Y) JET Unit 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GROMMET(6R7)

90480-06M46-00

1

$9.97

In stock

2

COVER

66E-51381-01-00

1
Out of stock

3

GROMMET(6R7)

90480-06M46-00

1

$9.97

In stock

4

DUCT, INTAKE

65V-51311-01-94

1
Out of stock

5

OIL SEAL

93102-17M49-00

1

$9.94

In stock

6

OIL SEAL

93102-17M50-00

1
Out of stock

7

BUSHING, DRIVE SHAFT

65V-45318-00-00

1

$85.99

In stock

8

SPACER

65U-R1348-01-00

1
Out of stock

9

BOLT, WITH WASHER

90119-06892-00

1

$4.31

In stock

10

. FELT, PACKING

6R8-51367-01-00

1

$11.08

In stock

11

HOUSING, IMPELLER

6R8-51312-03-94

1

$397.49

In stock

12

PIN, DOWEL (614)

93606-12019-00

1
Out of stock

13

DUCT, IMPELLER

66E-51315-00-94

1
Out of stock

14

FILTER

66E-46882-00-00

1
Out of stock

15

COVER, WATER INLET

66E-45214-00-94

1
Out of stock

16

O-RING

66E-42414-00-00

1
Out of stock

17

BOLT, WITH WASHER

90119-069UW-00

1
Out of stock

18

HOSE

66E-4383A-00-00

1
Out of stock

19

BAND, HOSE 18

90601-118UF-00

1

$2.38

In stock

20

PIN, DOWEL (614)

93606-12019-00

1
Out of stock

21

BEARING (6K8)

93306-205U1-00

—

$21.14

In stock

22

OIL SEAL(6R7)

93102-25M34-00

—

$14.64

In stock

23

OIL SEAL(6R7)

93101-25M50-00

—

$22.28

In stock

24

SPACER 1

65V-45538-00-00

1

$31.67

In stock

25

BEARING

93306-304XB-00

1

$19.22

In stock

26

SHAFT, DRIVE

66E-45511-10-00

1
Out of stock

27

958-58204-00 WASHER,PLAIN

92990-16200-00

—
Out of stock

28

NUT

95317-16700-00

1

$4.45

In stock

29

CAP KIT

65A-R1326-10-KT

1
Out of stock

30

. O-RING

93210-46M16-00

1

$7.91

In stock

31

BOLT,WITH WASHER

90119-06890-00

1

$1.23

In stock

32

IMPELLER

66E-51321-B0-00

1
Out of stock

33

SPACER

62T-51348-00-00

1

$48.10

In stock

34

NOZZLE

65V-51318-00-94

1
Out of stock

35

. NIPPLE

6K8-51129-00-00

1

$12.99

In stock

36

. NIPPLE

62T-51129-00-00

1

$18.49

In stock

37

PIPE 1

61X-51673-00-00

1
Out of stock

38

BAND, HOSE 18

90601-118UF-00

1

$2.38

In stock

39

PIN, DOWEL (614)

93606-12019-00

1
Out of stock

40

BOLT, WITH WASHER

90119-06829-00

1
Out of stock

41

NOZZLE, DEFLECTOR

65V-51313-00-00

1

$60.18

In stock

42

BOLT, WITH WASHER

90119-08852-00

1

$4.31

In stock

43

COLLAR

90387-08M08-00

1

$12.11

In stock

44

RING,TRIM

64Y-51190-00-94

1

$118.99

In stock

45

STUD, JOINT BALL

GH3-U146E-00-00

1

$7.85

In stock

46

WASHER,PLATE

90201-068M4-00

—
Out of stock

47

NUT(650)

95380-06700-00

—

$6.17

In stock

48

BOLT, WITH WASHER

90119-08852-00

1

$4.31

In stock

49

COLLAR(6R7)

90387-08M06-00

—

$8.97

In stock
