2000 Yamaha GP800 (GP800Y) Fuel Diagram

← All diagrams

Find the part on the Fuel diagram for your 2000 Yamaha GP800 (GP800Y), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

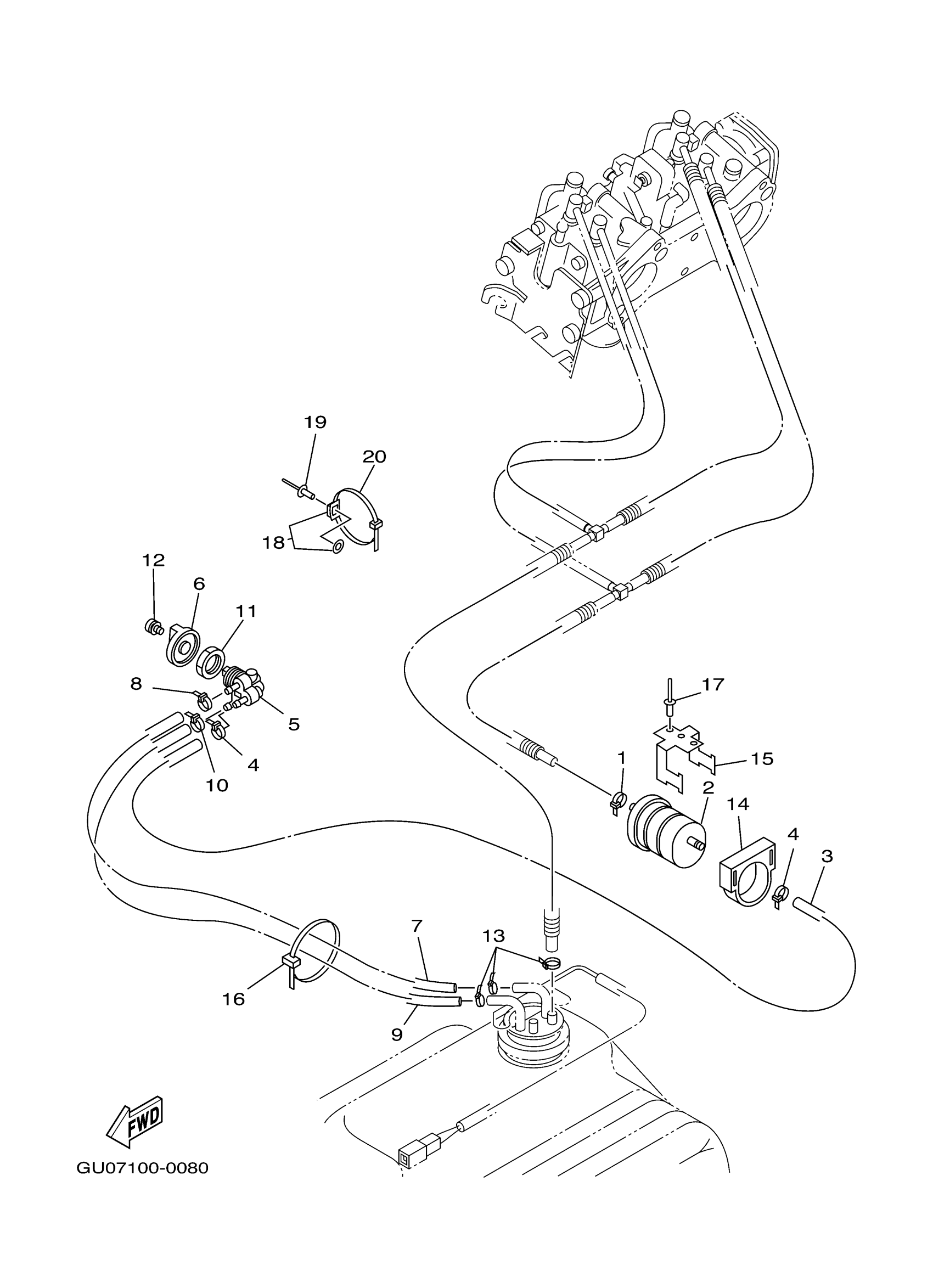

2000 Yamaha GP800 (GP800Y) Fuel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLAMP

90465-10098-00

1

$2.24

In stock

2

FILTER ASSY

6K8-24560-21-00

1

$25.83

In stock

3

HOSE (L400)

90445-10M43-00

1

$5.88

In stock

4

CLAMP

90465-10098-00

1

$2.24

In stock

5

FUEL COCK ASSY 1

65U-24500-02-00

1
Out of stock

6

LEVER, COCK

6K8-24524-10-00

1

$10.68

In stock

7

HOSE (L1040)

90445-10MA9-00

1

$58.64

In stock

8

CLAMP

90465-10098-00

1

$2.24

In stock

9

HOSE (L400)

90445-10M43-00

1

$5.88

In stock

10

CLAMP

90465-10098-00

1

$2.24

In stock

11

NUT

90170-22M11-00

1
Out of stock

12

SCREW, WITH WASHER

90159-04800-00

1
Out of stock

13

CLAMP

90465-10098-00

1

$2.24

In stock

14

HOLDER, FILTER

EU0-U7817-00-00

1

$15.37

In stock

15

BRACKET, FUEL FILTER

FN8-67816-00-00

1

$16.99

In stock

16

BAND

90601-200U1-00

1

$2.89

In stock

17

RIVET (EU0)

90267-48938-00

1

$5.08

In stock

18

CLAMP COMP (EU0)

90600-91736-00

—

$6.68

In stock

19

RIVET, BLIND

90267-48802-00

1

$2.06

In stock

20

CLAMP

90464-32801-00

1

$1.38

In stock
