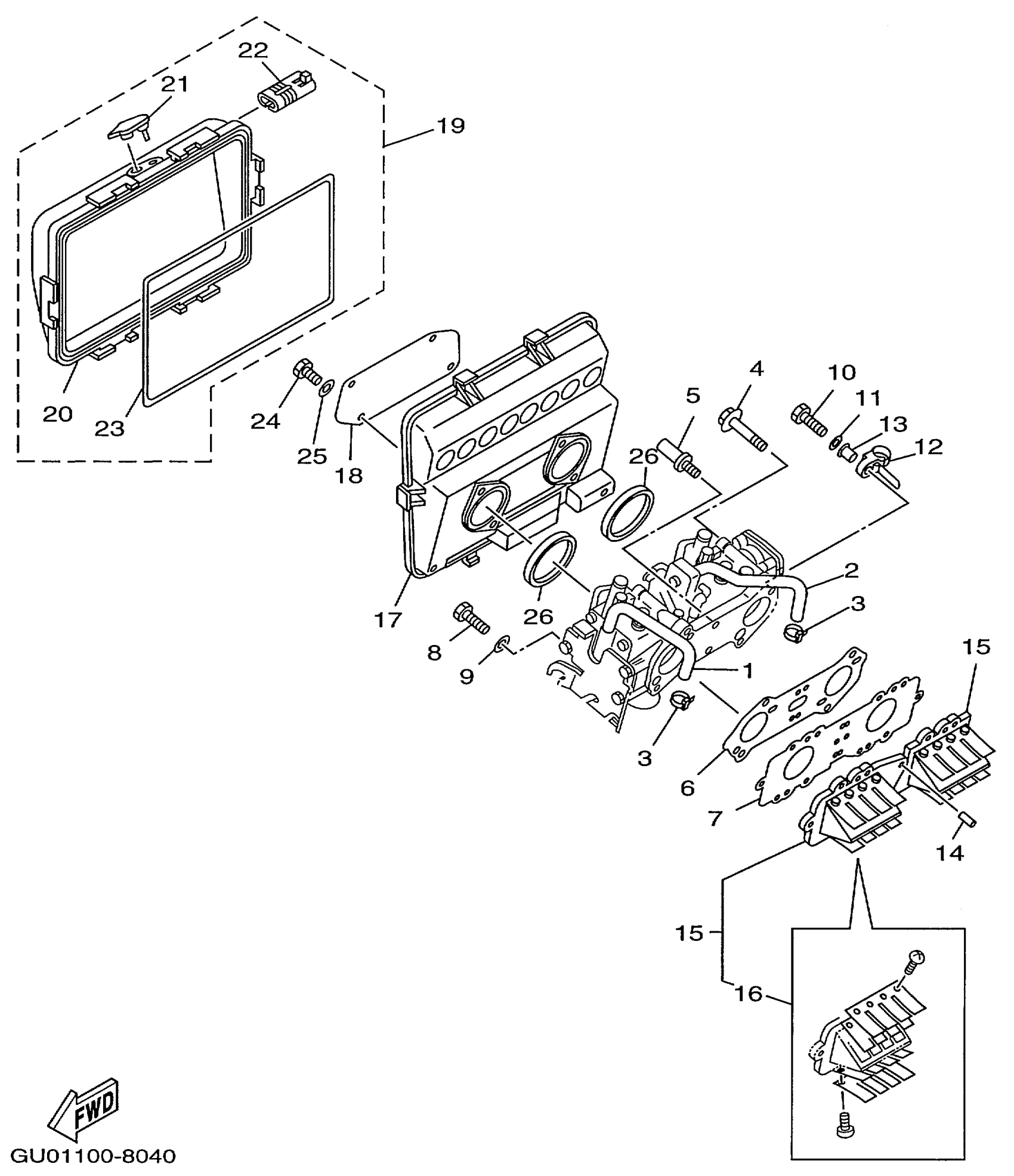

Find the part on the Intake diagram for your 1998 Yamaha Wave Runner GP800W (GP800W), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1998 Yamaha Wave Runner GP800W (GP800W) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PIPE 4

66E-24314-00-00

1

$36.49

In stock

2

PIPE 5

66E-24315-00-00

1

$45.49

In stock

3

CLAMP

90465-10098-00

1

$2.24

In stock

4

BOLT, WASHER BASED

90105-08M86-00

1

$13.14

In stock

5

BOLT

90109-06M00-00

1
Out of stock

6

. GASKET, MANIFOLD

66E-13556-00-00

1

$21.99

In stock

7

PLATE,REED VALVE

66E-13624-10-94

1

$77.99

In stock

8

BOLT(62Y)

97013-06025-00

1

$1.37

In stock

9

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

10

BOLT(3RV)

97014-06035-00

1

$1.54

In stock

11

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

12

CLAMP

90465-12M53-00

1

$5.08

In stock

13

COLLAR

90387-06M05-00

1

$7.12

In stock

14

. PIN, DOWEL

93606-19M23-00

1

$2.62

In stock

15

REED VALVE ASSY

66E-13610-00-00

1

$161.99

In stock

16

. REED SET

66E-W0004-00-00

1
Out of stock

17

COVER, CARBURETOR 2

66E-14284-00-00

1
Out of stock

18

ELEMENT, AIR CLEANER

66E-14451-00-00

1
Out of stock

19

COVER SUB ASSEMBLY

66E-14480-00-00

1
Out of stock

20

. COVER, CARBURETOR 1

66E-14283-00-00

1
Out of stock

21

GROMMET

6K8-14435-00-00

1

$11.49

In stock

22

HOLDER

66E-13898-01-00

1

$6.92

In stock

23

. SEAL

66E-14457-00-00

1
Out of stock

24

BOLT, HEXAGON

97013-06045-00

—

$1.51

In stock

25

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

26

. O-RING

66E-13473-00-00

1

$5.14

In stock
