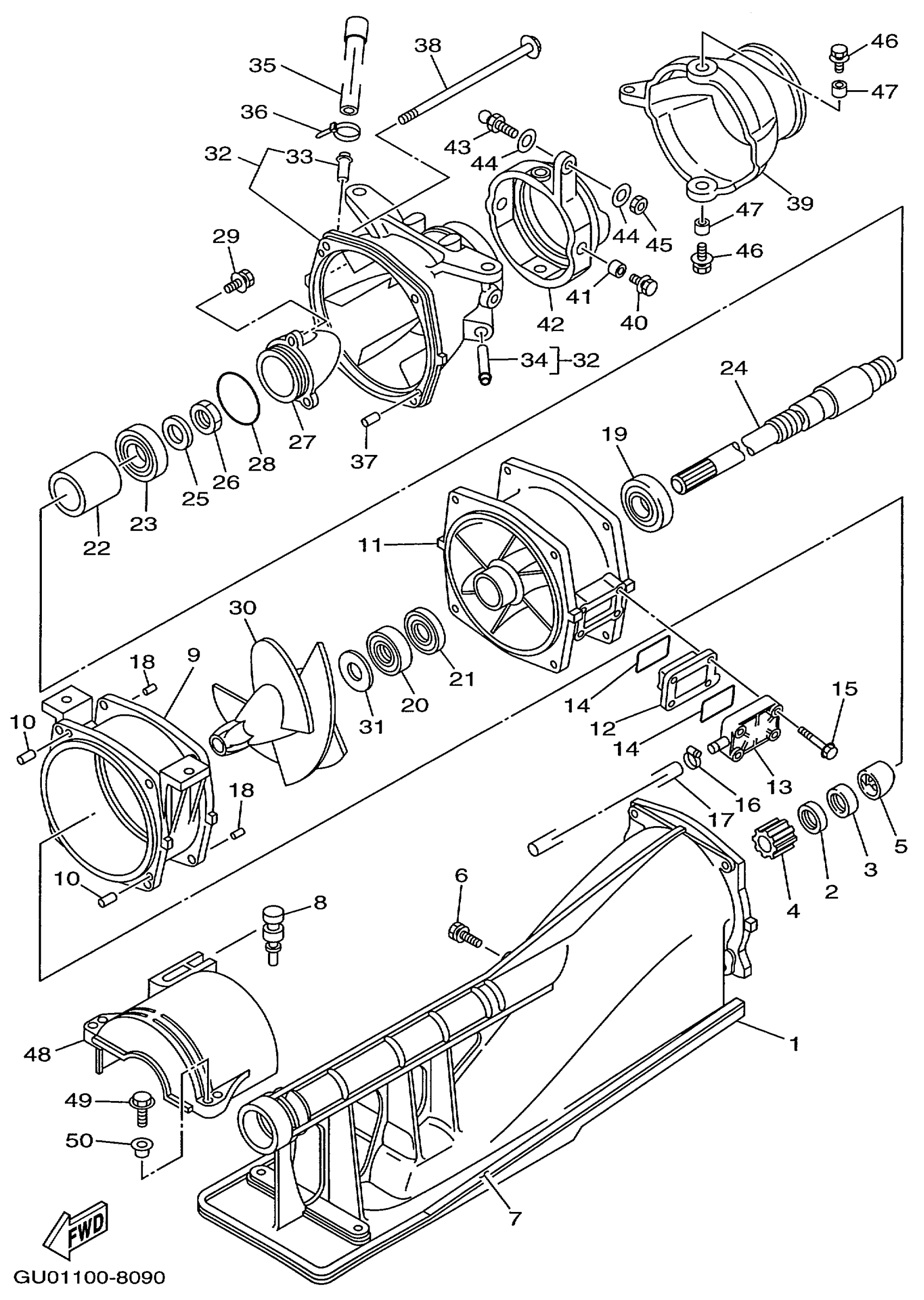

Yamaha GP800W (WAVE RUNNER GP800W) GU01 1998 JET UNIT 1 Diagram

#

Description
Price

1

DUCT, INTAKE

65V-51311-01-94

Unavailable

2

OIL SEAL

93102-17M49-00

$9.64

3

OIL SEAL

93102-17M50-00

Unavailable

4

BUSHING, DRIVE SHAFT

65V-45318-00-00

$83.57

5

SPACER

65U-R1348-01-00

Unavailable

6

BOLT, WITH WASHER

90119-06892-00

$4.01

7

. FELT, PACKING

6R8-51367-01-00

$10.63

8

GROMMET(6R7)

90480-06M46-00

$9.67

9

HOUSING, IMPELLER

6R8-51312-03-94

$386.55

10

PIN, DOWEL (614)

93606-12019-00

$3.50

11

DUCT, IMPELLER

66E-51315-00-94

Unavailable

12

FILTER

66E-46882-00-00

Unavailable

13

COVER, WATER INLET

66E-45214-00-94

Unavailable

14

O-RING

66E-42414-00-00

Unavailable

15

BOLT, WITH WASHER

90119-069UW-00

Unavailable

16

HOSE

66E-4383A-00-00

Unavailable

17

BAND, HOSE 18

90601-118UF-00

$2.22

18

PIN, DOWEL (614)

93606-12019-00

$3.50

19

BEARING (6K8)

93306-205U1-00

Unavailable

20

OIL SEAL(6R7)

93102-25M34-00

Unavailable

21

OIL SEAL(6R7)

93101-25M50-00

Unavailable

22

SPACER 1

65V-45538-00-00

$30.39

23

BEARING

93306-304XB-00

$17.94

24

SHAFT, DRIVE

66E-45511-00-00

Unavailable

25

958-58204-00 WASHER,PLAIN

92990-16200-00

Unavailable

26

NUT

95317-16700-00

$4.31

27

CAP KIT

65A-R1326-10-KT

Unavailable

28

. O-RING

93210-46M16-00

$7.59

29

BOLT,WITH WASHER

90119-06890-00

$1.15

30

IMPELLER

66E-51321-B0-00

Unavailable

31

SPACER

62T-51348-00-00

$49.39

32

NOZZLE

65V-51318-00-94

Unavailable

33

. NIPPLE

6K8-51129-00-00

$9.87

34

. NIPPLE

62T-51129-00-00

$18.49

35

PIPE 1

61X-51673-00-00

Unavailable

36

BAND, HOSE 18

90601-118UF-00

$2.22

37

PIN, DOWEL (614)

93606-12019-00

$3.50

38

BOLT, WITH WASHER

90119-06829-00

Unavailable

39

NOZZLE, DEFLECTOR

65V-51313-00-00

$57.75

40

BOLT, WITH WASHER

90119-08852-00

$4.01

41

COLLAR

90387-08M08-00

$11.48

42

RING,TRIM

64Y-51190-00-94

$116.40

43

STUD, JOINT BALL

GH3-U146E-00-00

$7.53

44

WASHER,PLATE

90201-068M4-00

Unavailable

45

NUT(650)

95380-06700-00

Unavailable

46

BOLT, WITH WASHER

90119-08852-00

$4.01

47

COLLAR(6R7)

90387-08M06-00

Unavailable

48

COVER

65A-R1381-00-00

Unavailable

49

COLLAR

90387-06M60-00

$6.83

50

BOLT, WITH WASHER

90119-06892-00

$4.01
