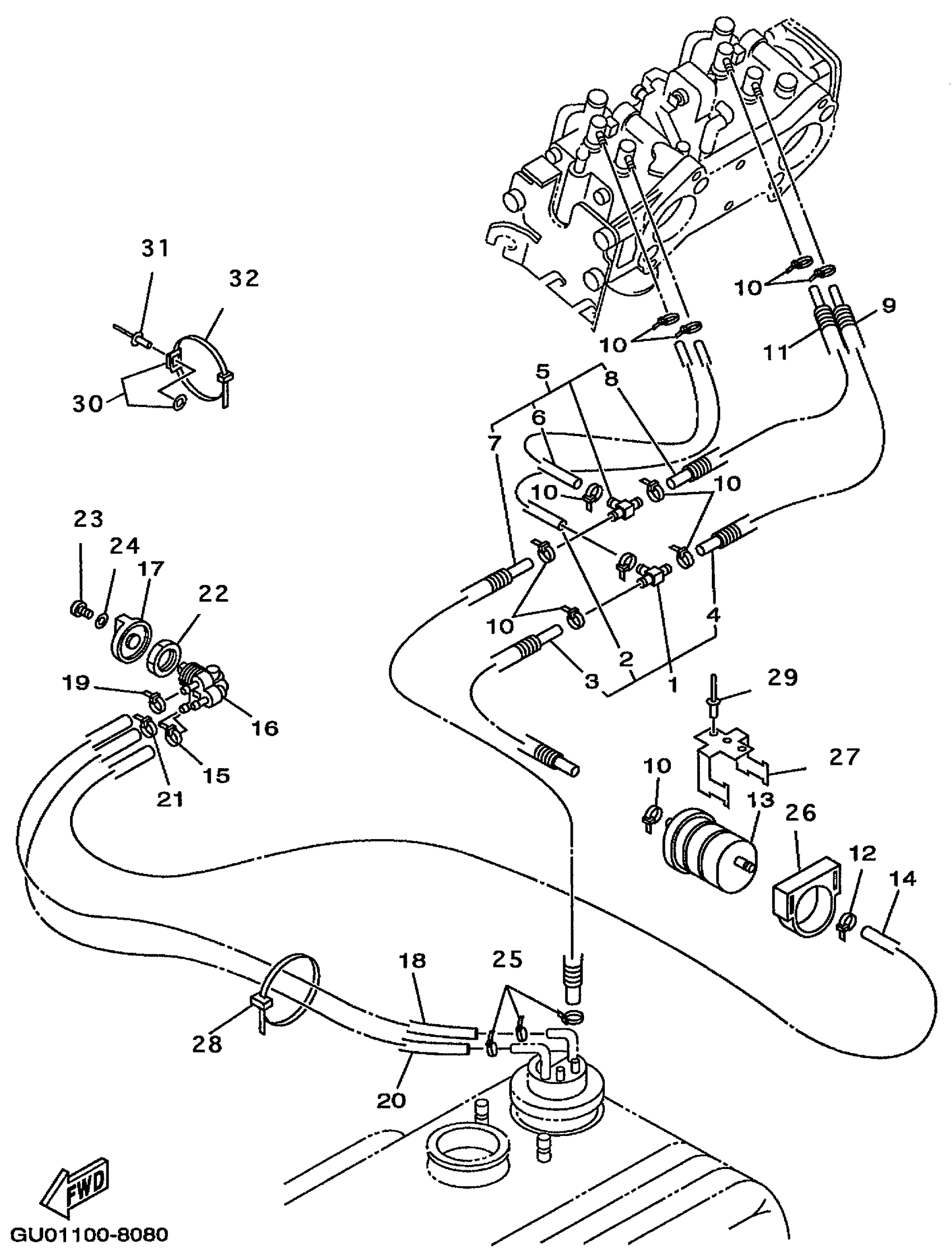

Yamaha GP800W (WAVE RUNNER GP800W) GU01 1998 FUEL Diagram

#

Description
Price

1

PIPE, JOINT 3

66E-24377-00-00

Unavailable

2

HOSE (L1040)

90445-10MA9-00

$56.27

3

. HOSE

90445-10M63-00

Unavailable

4

HOSE (L1040)

90445-10MA9-00

$56.27

5

PIPE, JOINT 4

66E-24378-00-00

Unavailable

6

HOSE (L1700)

90445-10M87-00

Unavailable

7

HOSE (L1040)

90445-10MA9-00

$56.27

8

. HOSE

90445-10MG4-00

Unavailable

9

HOSE

90446-14M98-00

Unavailable

10

CLIP, PIPE

35H-14139-00-00

$4.37

11

HOSE

90446-14M99-00

$15.89

12

CLAMP

90465-10098-00

$1.68

13

FILTER ASSY

6K8-24560-21-00

$28.64

14

HOSE (L400)

90445-10M43-00

$5.96

15

CLAMP

90465-10098-00

$1.68

16

FUEL COCK ASSY 1

65U-24500-02-00

Unavailable

17

LEVER, COCK

6K8-24524-10-00

$11.84

18

HOSE (L1040)

90445-10MA9-00

$56.27

19

CLAMP

90465-10098-00

$1.68

20

HOSE (L400)

90445-10M43-00

$5.96

21

CLAMP

90465-10098-00

$1.68

22

NUT

90170-22M11-00

Unavailable

23

SCREW, PAN HEAD (E56)

98580-04010-00

Unavailable

24

WASHER, PLAIN (646)

92990-04600-00

Unavailable

25

CLAMP

90465-10098-00

$1.68

26

HOLDER, FILTER

EU0-U7817-00-00

$13.63

27

BRACKET, FUEL FILTER

FN8-67816-00-00

$16.99

28

BAND

90601-200U1-00

$2.77

29

RIVET (EU0)

90267-48938-00

$5.00

30

CLAMP COMP (EU0)

90600-91736-00

Unavailable

31

RIVET, BLIND

90267-48802-00

$1.98

31

RIVET, BLIND

90267-48802-00

$1.98

32

BAND (EU0)

90601-20009-00

$6.36

32

BAND (EU0)

90601-20009-00

$6.36
