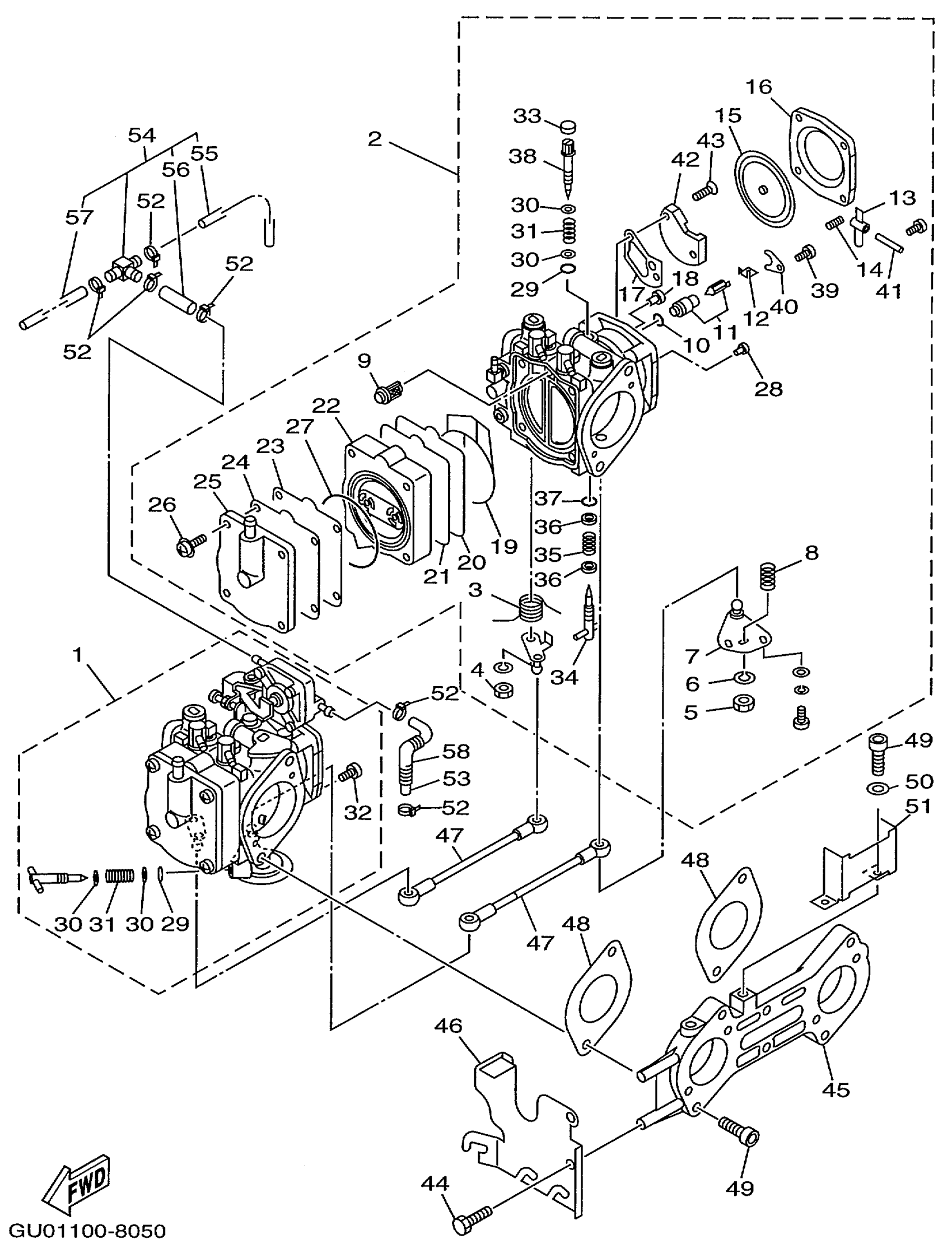

Yamaha GP800W (WAVE RUNNER GP800W) GU01 1998 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSEMBLY 1

66E-14301-00-00

Unavailable

2

CARBURETOR ASSEMBLY 2

66E-14302-00-00

Unavailable

3

. SPRING, CHOKE LEVER

66E-14218-00-00

Unavailable

4

. NUT

95382-06700-00

Unavailable

5

. NUT

3CF-14594-00-00

$2.27

6

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

7

. THROTTLE SHAFT ASSEMBLY

66E-14930-00-00

Unavailable

8

. SPRING

66E-14275-00-00

Unavailable

9

. STRAINER

6R7-14569-00-00

$11.48

10

O-RING

8F2-14147-00-00

$2.64

11

NEEDLE

64T-14916-01-00

$49.49

12

CLIP

7EG-14159-00-00

$4.27

13

. ARM, FLOAT

6K8-14547-01-00

$8.26

14

. SPRING

6R7-14253-00-00

$2.49

15

. DIAPHRAGM, PUMP

6R7-14541-00-00

$26.99

16

. BODY, PUMP 1

6R7-14542-00-00

$56.05

17

. GASKET

6K8-14536-11-00

$8.14

18

JET, MAIN (#155)

3G2-14231-31-00

Unavailable

18

JET,MAIN #157.5

3G2-1423A-82-00

Unavailable

19

. O-RING

66E-14563-00-00

Unavailable

20

. DIAPHRAGM

66E-24471-00-00

$32.99

21

. DIAPHRAGM

66E-24411-00-00

$39.38

22

BODY 2

66E-24413-01-00

$116.65

23

. VALVE, CHECK

66E-24421-00-00

$27.58

24

. GASKET, FUEL PUMP 1

66E-24431-00-00

$16.99

25

. COVER

66E-24452-00-00

Unavailable

26

. SCREW, PAN HEAD

90157-05M17-00

Unavailable

27

. O-RING

66E-14564-00-00

Unavailable

28

JET, MAIN (# 90)

830-14231-18-00

Unavailable

29

. O-RING

6K8-14562-00-00

$1.88

30

WASHER,NEEDLE

812-14235-00-00

$2.44

31

SPRING, THROTTLE VALVE

68V-14331-00-00

Unavailable

32

SCREW, PAN HEAD(3YL)

98580-05014-00

$6.99

33

. CAP, CARBURETOR

6K8-14471-10-00

$8.17

34

. SCREW, PILOT ADJUSTING

66E-14211-00-00

Unavailable

35

. SPRING

6K8-14589-00-00

$3.70

36

WASHER, NEEDLE

822-14235-00-00

Unavailable

37

O-RING

583-14561-00-00

Unavailable

38

. PLATE, NEEDLE FITTING

6K8-14946-10-00

$29.49

39

. SCREW

6M6-14503-00-00

$5.55

40

. PLATE

6K8-14527-11-00

$11.35

41

. PIN, FLOAT

439-14186-00-00

$12.49

42

. BODY 1

66E-24412-00-00

Unavailable

43

SCREW, STOP

6K8-14523-12-00

Unavailable

44

BOLT

90101-06M25-00

Unavailable

45

PLATE

66E-14243-00-00

Unavailable

46

BRACKET 1

66E-14291-00-00

Unavailable

47

ROD, ACCEL. LEVER

66E-41217-00-00

Unavailable

48

. GASKET

66E-14398-00-00

$31.57

49

BOLT, HOLDING

66E-14162-00-00

$13.99

50

WASHER, SPRING

90204-06M01-00

Unavailable

51

PLATE

66E-14146-00-00

$38.99

52

CLIP, PIPE

35H-14139-00-00

Unavailable

53

HOSE, VACUUM SENSING 5

68V-13534-00-00

Unavailable

54

PIPE, JOINT 1

66E-24376-00-00

Unavailable

55

HOSE (L1700)

90445-10M87-00

Unavailable

56

HOSE (L1040)

90445-10MA9-00

Unavailable

57

. HOSE

90446-10M61-00

Unavailable

58

HOSE

90446-10MA2-00

$16.99
