2000 Yamaha GP760 (GP760Y) OIL Pump Diagram

← All diagrams

Find the part on the OIL Pump diagram for your 2000 Yamaha GP760 (GP760Y), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

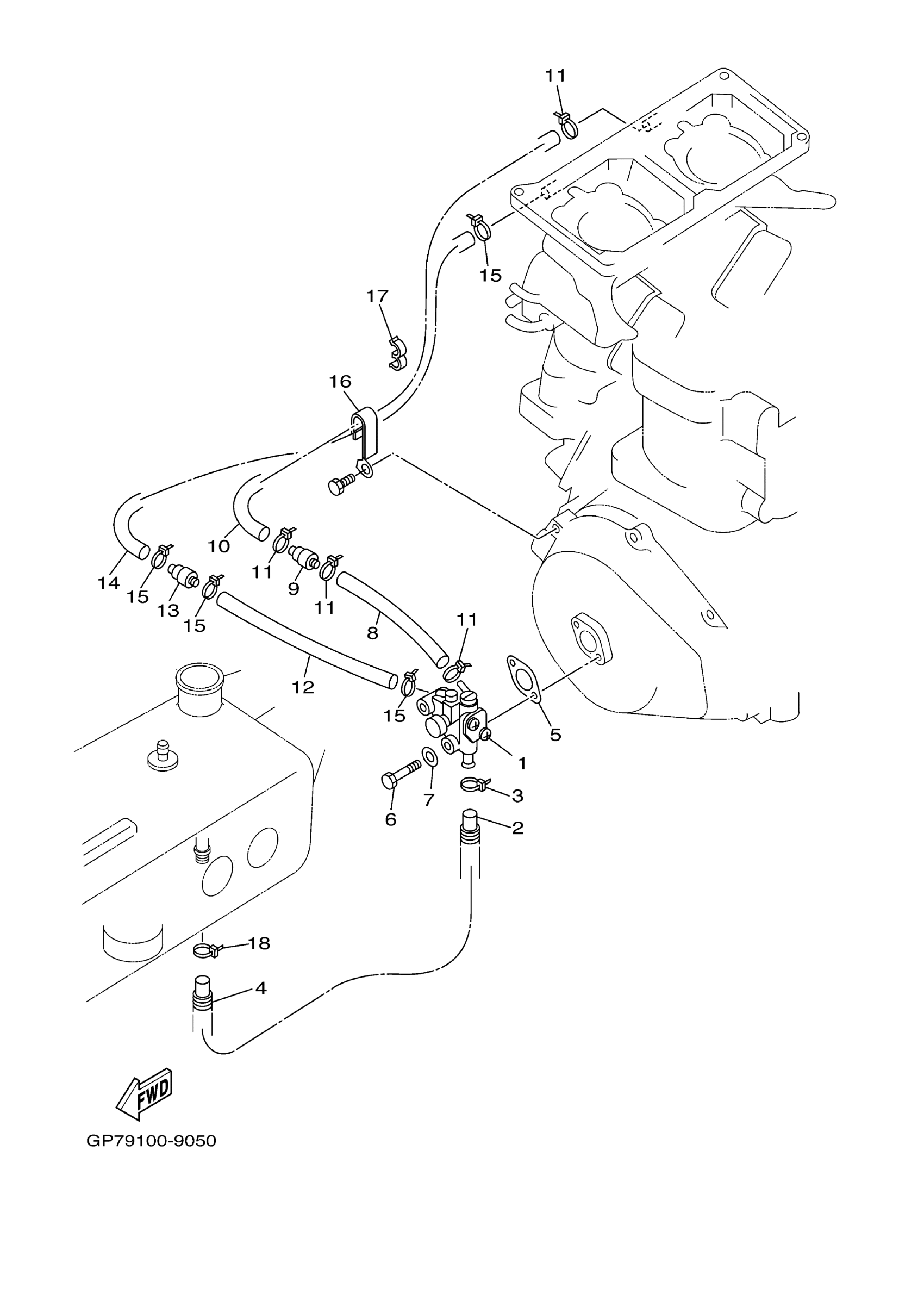

2000 Yamaha GP760 (GP760Y) OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

OIL INJECTION PUMP ASSY

62T-13200-13-00

1
Out of stock

2

HOSE (L700)

90445-117F2-00

1
Out of stock

3

CLAMP

90465-10098-00

1

$2.24

In stock

4

HOSE

90446-17M72-00

1

$7.45

In stock

5

. GASKET, PUMP CASE

6R8-13116-A0-00

1

$3.69

In stock

6

BOLT(J52)

97080-06035-00

—

$4.49

In stock

7

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

8

HOSE(62T)

90446-07M48-00

—

$7.02

In stock

9

VALVE, CHECK

6R3-13183-10-00

1

$43.55

In stock

10

HOSE(62T)

90446-07M48-00

—

$7.02

In stock

11

CLAMP

90465-10098-00

1

$2.24

In stock

12

HOSE(62T)

90446-07M48-00

—

$7.02

In stock

13

VALVE, CHECK

6R3-13183-10-00

1

$43.55

In stock

14

HOSE(62T)

90446-07M48-00

—

$7.02

In stock

15

CLAMP

90465-10098-00

1

$2.24

In stock

16

CLAMP

90465-08M69-00

—
Out of stock

17

CLAMP

90464-07M20-00

1
Out of stock

18

CLAMP

90465-10098-00

1

$2.24

In stock
