2000 Yamaha GP760 (GP760Y) Engine Hatch 1 Diagram

← All diagrams

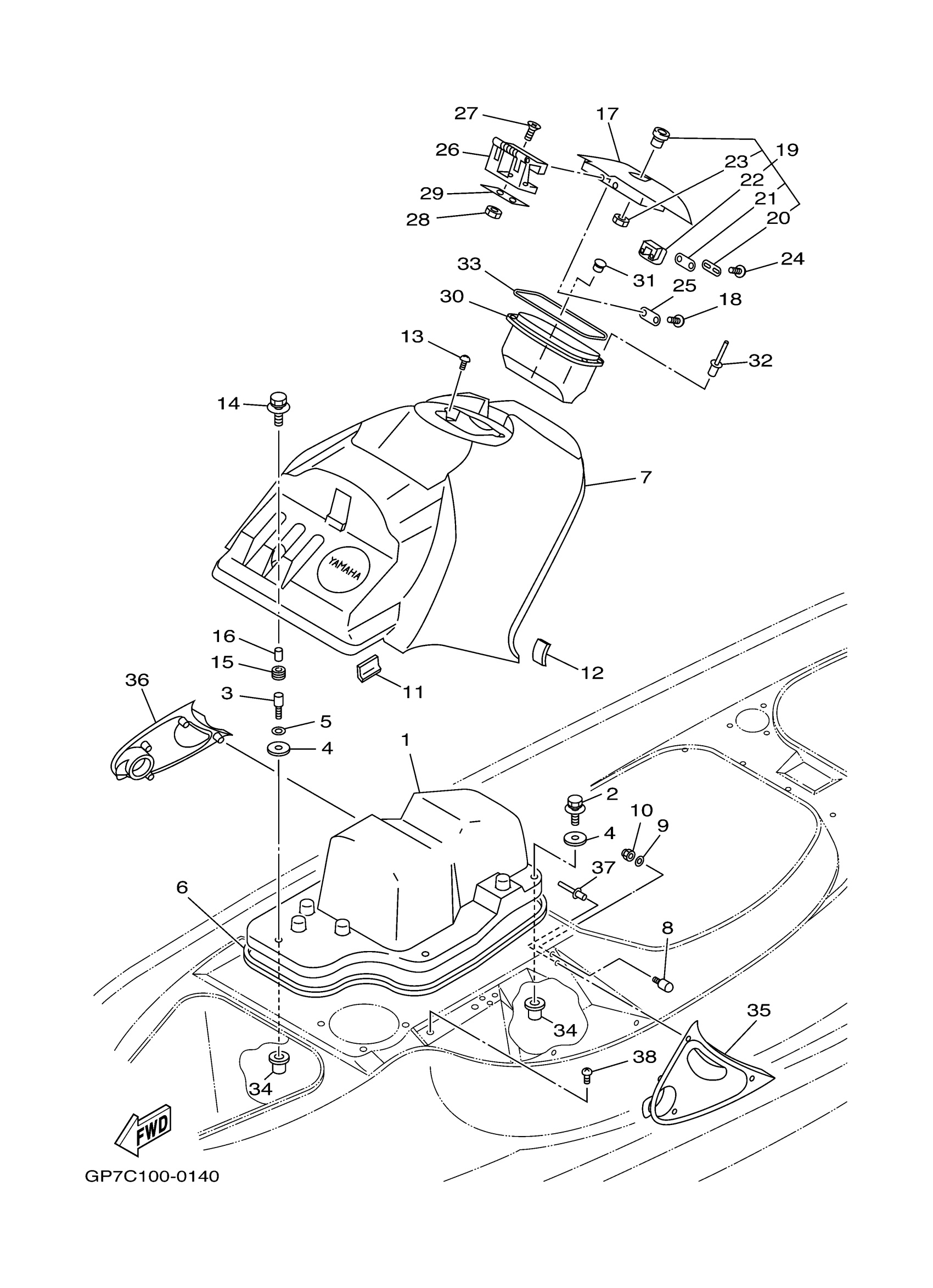

Find the part on the Engine Hatch 1 diagram for your 2000 Yamaha GP760 (GP760Y), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2000 Yamaha GP760 (GP760Y) Engine Hatch 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ENGINE HATCH COMP.

GP7-U516A-00-00

1
Out of stock

2

BOLT, WITH WASHER

90119-08907-00

1

$5.34

In stock

3

BOLT

90109-08913-00

1
Out of stock

4

WASHER, PLATE

90201-099U1-00

1

$2.46

In stock

5

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

6

PACKING 7

GP7-U266F-00-00

1
Out of stock

7

COVER, ENG. HATCH(MET.RED)

GP7-U516N-19-P0

1
Out of stock

8

DAMPER 3

GP7-6515G-01-00

1

$38.99

In stock

9

WASHER

9299R-06200-00

1

$0.45

In stock

10

NUT, NYLON

9572R-06300-00

1

$3.15

In stock

11

RUBBER, WATER PROOF

GP7-U5114-00-00

1
Out of stock

12

PAD, HATCH 1

GP7-U517M-01-00

1
Out of stock

13

SCREW, ROUND TAPPING

90160-05804-00

1
Out of stock

14

BOLT,WITH WASHER

90119-06940-00

1
Out of stock

15

GROMMET

90480-13907-00

1
Out of stock

16

COLLAR

90387-06920-00

1
Out of stock

17

LID HATCH (DARK RED MET.)

GP7-U517H-39-P0

1
Out of stock

18

SCREW, PAN HEAD

98580-05020-00

1

$1.39

In stock

19

LOCK ASSY

GP7-6287A-00-00

1
Out of stock

20

. PLATE, HOOK

GP7-62848-00-00

1

$6.46

In stock

21

. PLATE, HATCH LOCK

EW2-62846-00-00

1

$5.54

In stock

22

. HOOK, LOCK

GP7-6284J-00-00

1
Out of stock

23

. NUT, SPECIAL

GP7-62873-00-00

1

$5.54

In stock

24

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

25

PLATE, HOOD

GP7-U5148-00-00

1
Out of stock

26

HINGE, HATCH

GP7-6517G-01-00

1

$39.98

In stock

27

SCREW, FLAT HEAD

98780-05020-00

1

$2.22

In stock

28

NUT, FLANGE

9572R-05300-00

1

$1.62

In stock

29

PLATE, HATCH 2

GP7-U517S-00-00

1
Out of stock

30

BOX GLOVE

GP7-U516P-00-00

1
Out of stock

31

. PLUG

90605-502U2-00

1

$2.46

In stock

32

RIVET, BLIND

90267-489UK-00

1
Out of stock

33

PACKING CASE

GP7-U519D-02-00

1
Out of stock

34

NUT

90179-08967-00

1
Out of stock

35

COVER, SIDE 1

GP7-U377B-20-00

1
Out of stock

36

COVER, SIDE 2

GP7-U377C-20-00

1
Out of stock

37

RIVET, BLIND

90267-48809-00

1

$2.38

In stock

38

PLUG

90338-09828-00

1
Out of stock
