2000 Yamaha GP760 (GP760Y) Exhaust 2 Diagram

← All diagrams

Find the part on the Exhaust 2 diagram for your 2000 Yamaha GP760 (GP760Y), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

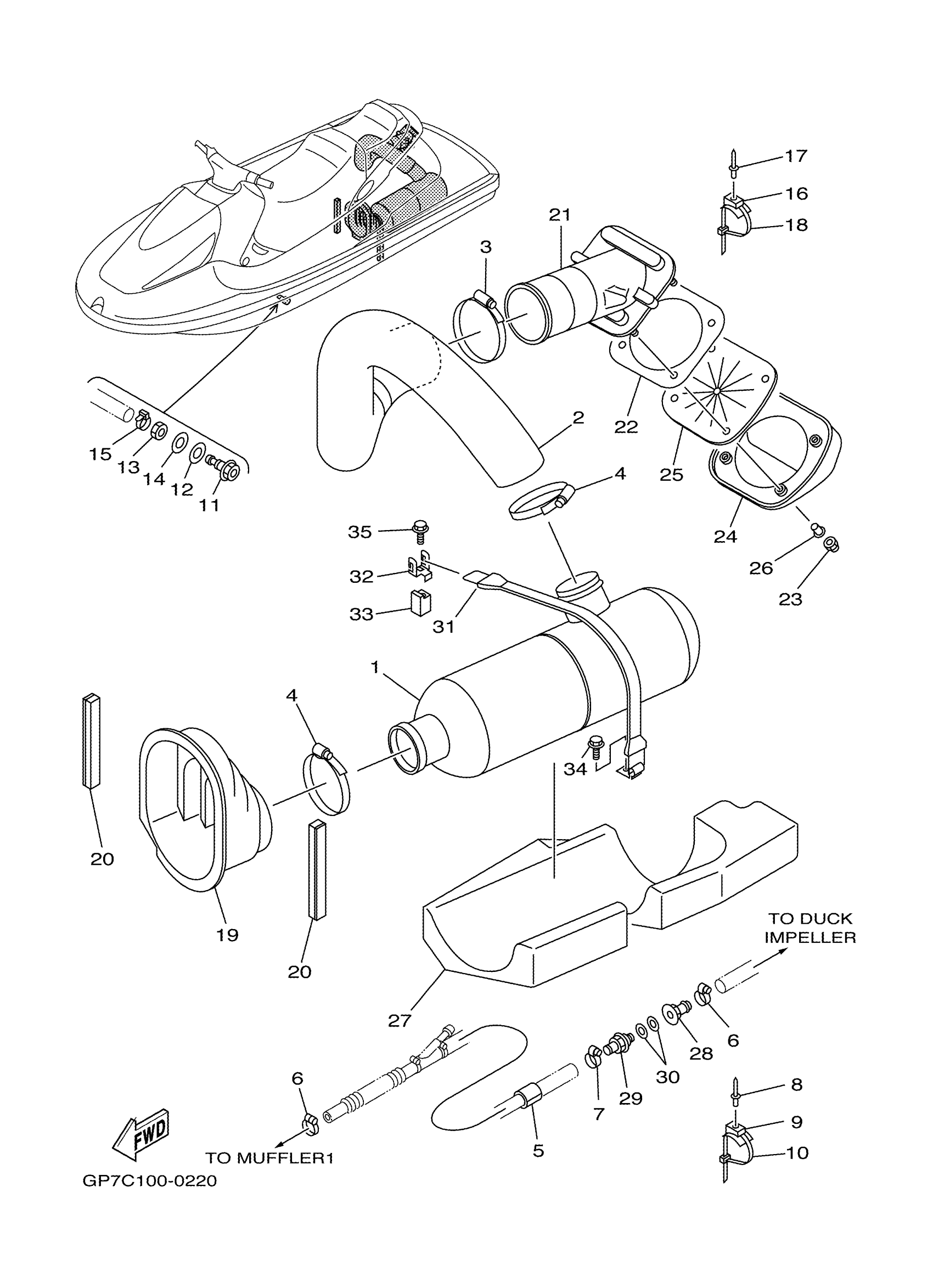

2000 Yamaha GP760 (GP760Y) Exhaust 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WATER LOCK COMP

GP7-U7550-00-00

1
Out of stock

2

HOSE, EXHAUST

GP7-U7555-00-00

1
Out of stock

3

BAND, HOSE 95

90601-195UD-00

1
Out of stock

4

BAND, HOSE 70

90601-170UG-00

1
Out of stock

5

PACKING, HOSE 2

GJ1-U7578-22-00

—
Out of stock

6

BAND, HOSE 18

90601-118UF-00

1
Out of stock

7

BAND, HOSE 11

90601-110UC-00

1
Out of stock

8

RIVET, BLIND

90267-48802-00

1
Out of stock

9

CLAMP COMP (EU0)

90600-91736-00

1
Out of stock

10

CLAMP

90464-32801-00

1
Out of stock

11

PILOT, WATER

GJ1-6753B-02-00

1
Out of stock

12

PACKING

GP3-U1438-00-00

1
Out of stock

13

NUT

GP7-61652-00-00

1
Out of stock

14

WASHER

9299R-14200-00

1
Out of stock

15

CLAMP

90465-10098-00

1
Out of stock

16

CLAMP COMP (EU0)

90600-91736-00

1
Out of stock

17

RIVET, BLIND

90267-489U7-00

1
Out of stock

18

CLAMP

90464-32801-00

1
Out of stock

19

SEAL, BULKHEAD 1

GP7-64536-00-00

1
Out of stock

20

SEAL, BULKHEAD 2

GP7-U4537-00-00

1
Out of stock

21

EXHAUST, THRU-HULL COMP.

GP7-U7560-00-00

1
Out of stock

22

PACKING

GP8-U7525-00-00

1
Out of stock

23

NUT

90179-08978-00

1
Out of stock

24

COVER, EXHAUST

GP7-6751F-00-00

1
Out of stock

25

VALVE, EXHAUST

GP8-6751G-00-00

1
Out of stock

26

COLLAR

90387-08802-00

1
Out of stock

27

BASE FLOATATION 1

GP7-U8921-00-00

1
Out of stock

28

THROUGH HULL CONNECTION 3/8-12

90604-80795-00

1
Out of stock

29

THROUGH HULL CONNECTION 3/8-12

90604-80796-00

1
Out of stock

30

GASKET(GJ1)

90430-16910-00

—
Out of stock

31

C HOOK COMP.

GJ3-U7570-00-00

1
Out of stock

32

HOOK A

EW2-U5772-00-00

1
Out of stock

33

SPACER 2

GP7-U755C-00-00

1
Out of stock

34

BOLT, WITH WASHER

90119-069UJ-00

1
Out of stock

35

BOLT, WITH WASHER

90119-06808-00

1
Out of stock
