2000 Yamaha GP760 (GP760Y) Engine Hatch 2 Diagram

← All diagrams

Find the part on the Engine Hatch 2 diagram for your 2000 Yamaha GP760 (GP760Y), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

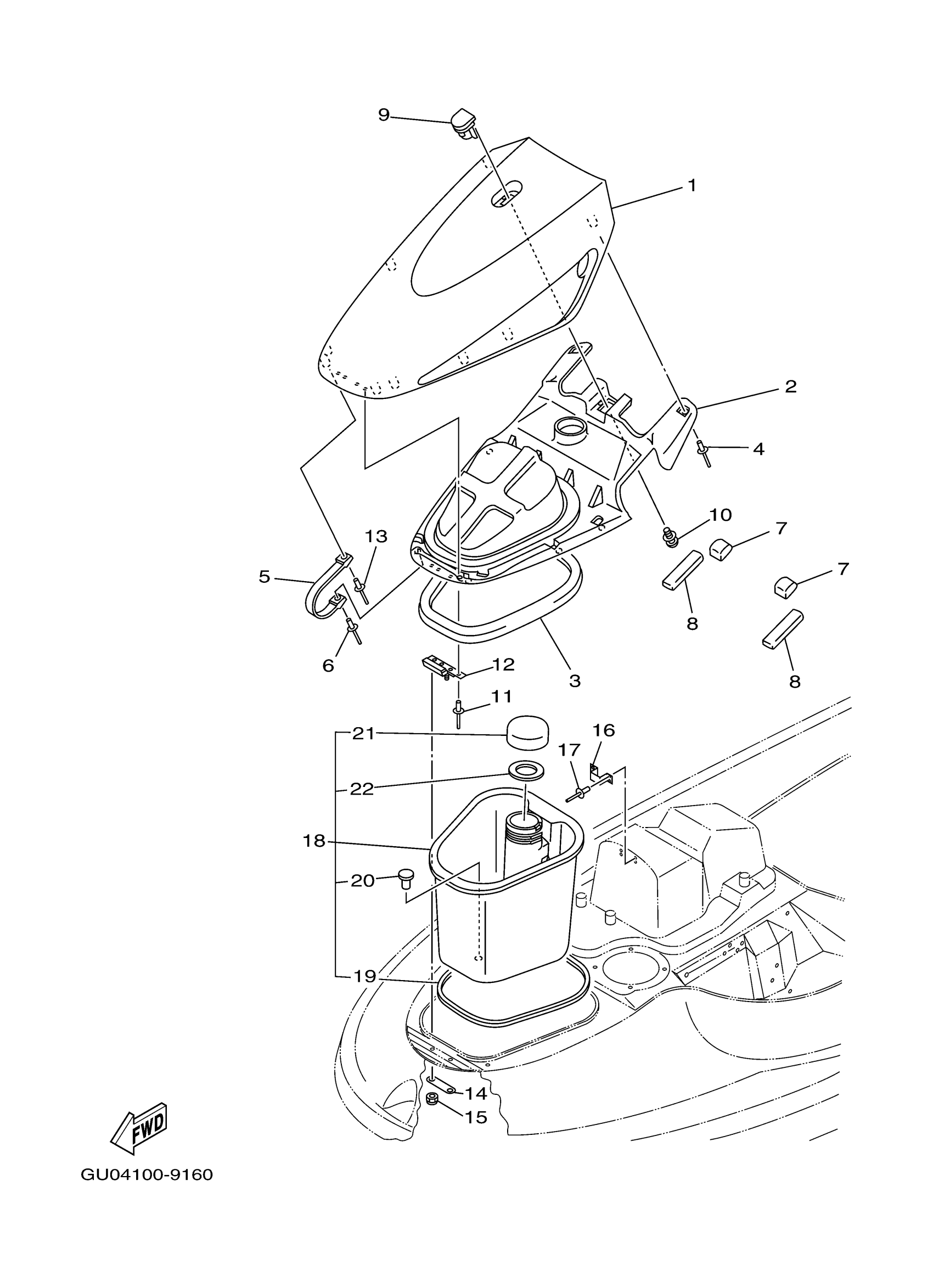

2000 Yamaha GP760 (GP760Y) Engine Hatch 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LID, ENGINE ROOM

GP7-U517B-30-P0

1
Out of stock

2

VENTILATOR COVER COMP., 2

GP7-U2103-00-00

1
Out of stock

3

PACKING 4

GP7-U266C-00-00

1
Out of stock

4

RIVET, BLIND

90267-48809-00

1

$2.38

In stock

5

SUPPORT, LID

GP7-6517P-01-00

1

$3.95

In stock

6

RIVET, BLIND

90267-48809-00

1

$2.38

In stock

7

DAMPER 1

GP7-U515D-02-00

1
Out of stock

8

DAMPER 2

GP7-U515E-00-00

1
Out of stock

9

LOCK, LID

F1K-6517C-00-00

1

$74.99

In stock

10

SCREW, WITH WASHER

90159-059U2-00

1
Out of stock

11

RIVET, BLIND(EU0,USA)

90267-489U9-00

1

$3.32

In stock

12

HINGE, LID

GP7-6517D-10-00

1
Out of stock

13

RIVET, 1

F3J-U516R-00-00

1

$2.69

In stock

14

PLATE, HINGE LID

GP7-U518E-00-00

1
Out of stock

15

NUT, NYLON

9572R-06300-00

1

$3.15

In stock

16

KEEP, LOCK

GP7-6517F-10-00

1

$11.99

In stock

17

RIVET (EU0)

90267-48938-00

1

$5.08

In stock

18

BOW LOCKER ASSY

GP7-U475A-00-00

1
Out of stock

19

. PACKING, 6

GP7-U266E-03-00

1
Out of stock

20

. PLUG, BLIND

90605-502U1-00

1

$2.46

In stock

21

. CAP, CASE

EW2-U5912-01-00

1
Out of stock

22

PACKING, CASE

EW2-U5913-01-00

1
Out of stock
