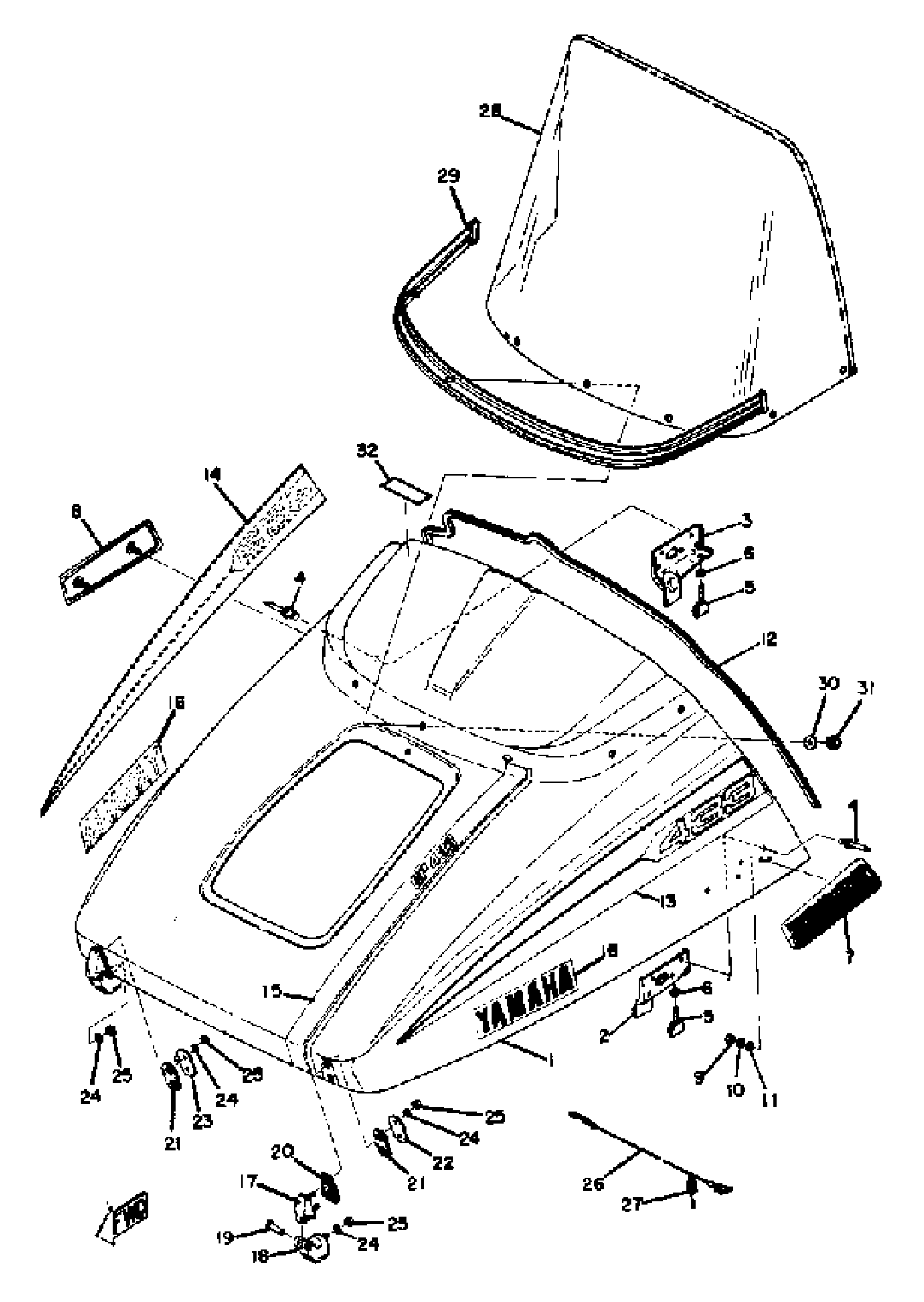

Find the part on the Shroud diagram for your 1974 Yamaha GP433F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1974 Yamaha GP433F Shroud Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHROUD ASSEMBLY

(865-77110-00-00)

1
Out of stock

2

CLAMP 2

(841-77136-00-00)

1
Out of stock

3

CLAMP 4

(841-77138-00-00)

1
Out of stock

4

RIVET, BLIND

90267-40936-00

1

$1.38

In stock

5

BODY, LATCH 1

(841-77171-01-00)

1
Out of stock

6

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

7

LOUVER 1

(838-77131-00-00)

1
Out of stock

8

LOUVER 2

838-77132-00-00

1
Out of stock

9

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

10

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

11

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

12

TRIM 2

(841-77166-00-00)

1
Out of stock

13

ORNAMENT 1

(861-77163-00-00)

1
Out of stock

14

ORNAMENT 2

(861-77164-00-00)

1
Out of stock

15

ORNAMENT 3

(866-77169-00-00)

1
Out of stock

16

EMBLEM 7

(863-77357-00-00)

1
Out of stock

17

HINGEASSEMBLY

(841-77140-00-00)

1
Out of stock

18

HINGE 3

(841-77147-00-00)

1
Out of stock

19

PIN

90243-05003-00

1
Out of stock

20

DAMPER 1

(841-77198-00-00)

1
Out of stock

21

DAMPER 2

841-77199-00-00

1
Out of stock

22

PLATE, BACK UP 1

(841-77153-00-00)

1
Out of stock

23

PLATE, BACK UP 2

(841-77154-00-00)

1
Out of stock

24

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

25

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

26

STOPPER, SHROUD

8E4-77118-00-00

1
Out of stock

27

CLAMP,ROD

838-77159-00-00

—

$3.49

In stock

28

WINDSHIELD

8A1-77210-00-00

1
Out of stock

29

TRIM LOWER ASSEMBLY

(8A1-77220-00-00)

1
Out of stock

30

WASHER, PLATE (4H7)

90201-061A5-00

—

$5.86

In stock

31

NUT, SELF-LOCKING

90185-05028-00

1
Out of stock

32

LABEL, SAFETY

288-21659-00-00

1
Out of stock
