1974 Yamaha GP433F Oil Tank Diagram

← All diagrams

Find the part on the Oil Tank diagram for your 1974 Yamaha GP433F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

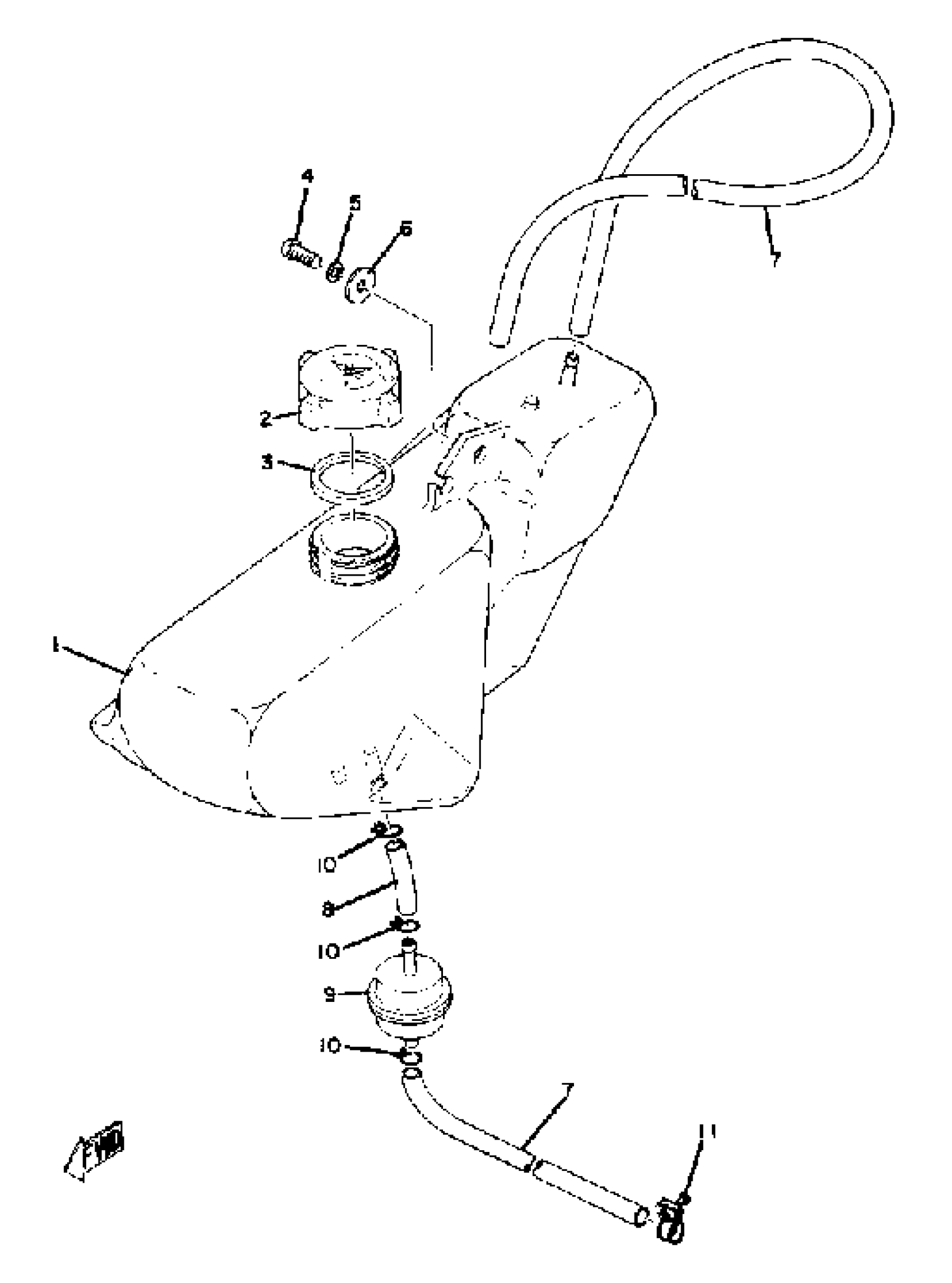

1974 Yamaha GP433F Oil Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK, OIL

867-21751-00-00

1
Out of stock

2

BODY, CAP

8LU-21771-00-00

1
Out of stock

3

GASKET, TANK (867)

90430-31003-00

1
Out of stock

4

SCREW, PAN HEAD(6B0)

97885-05016-00

1
Out of stock

5

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

6

WASHER, PLATE (4H7)

90201-061A5-00

1
Out of stock

7

HOSE (806-24319-00)

90446-09051-00

1
Out of stock

8

HOSE

90446-09052-00

1
Out of stock

9

STRAINER HOUSING ASSEMBLY

J10-13410-00-00

1
Out of stock

10

CLIP (8L2)

90467-08017-00

1
Out of stock

11

CLAMP, HOSE

90460-09001-00

1
Out of stock
