1974 Yamaha GP433F OIL Pump Diagram

← All diagrams

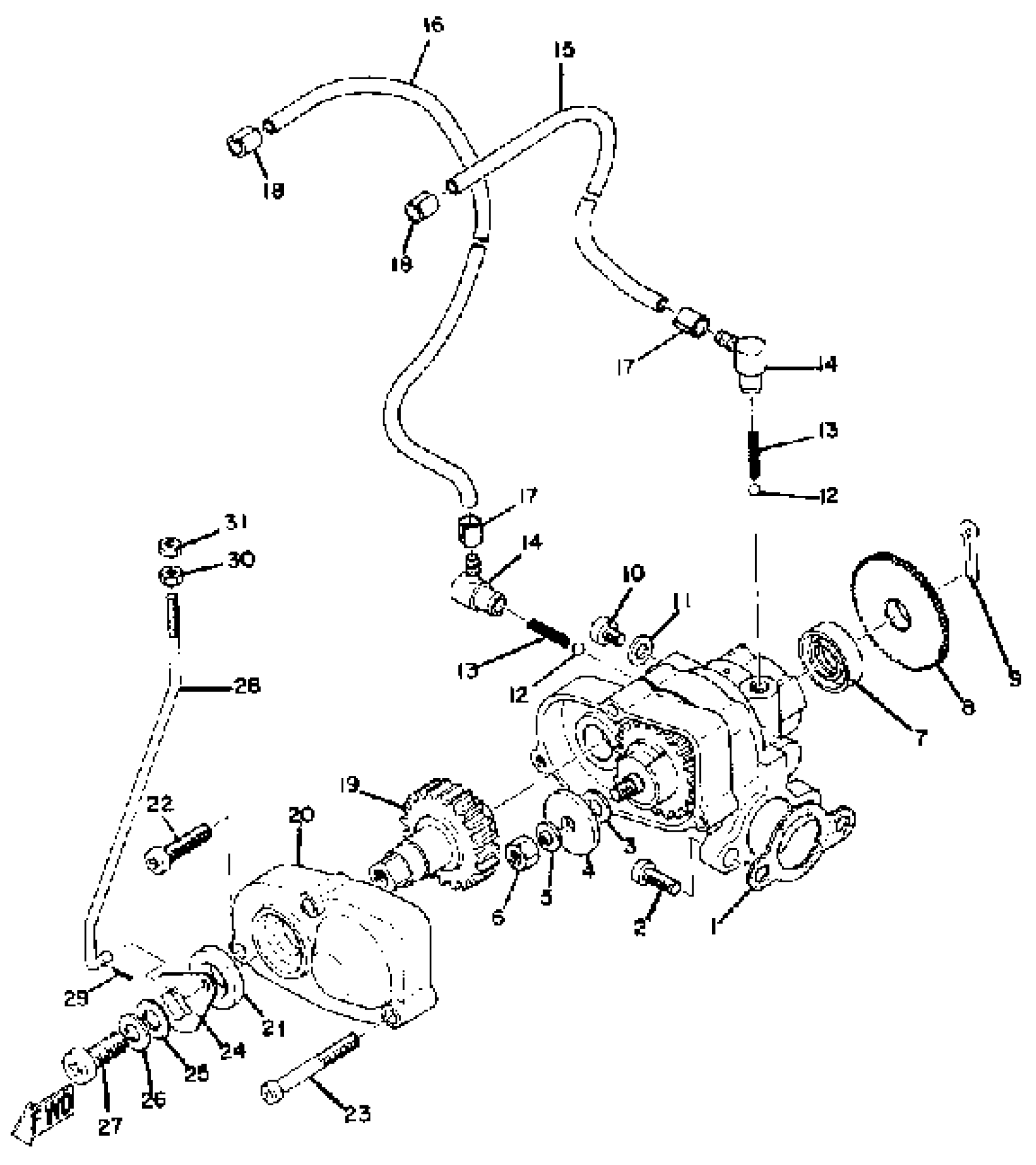

Find the part on the OIL Pump diagram for your 1974 Yamaha GP433F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1974 Yamaha GP433F OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET, PUMP CASE

126-13116-01-00

1
Out of stock

1

OIL PUMP ASSEMBLY

(866-13101-00-00)

1
Out of stock

2

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

3

SHIM,PLUNGER

137-13137-00-03

1

$5.35

In stock

3

SHIM,PLUNGER

137-13137-00-05

1

$5.32

In stock

3

SHIM,PLUNGER

137-13137-00-10

1

$6.43

In stock

4

PLATE, ADJUSTING

137-13138-01-00

—

$12.17

In stock

5

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

6

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

7

OIL SEAL (J10)

93101-10090-00

1

$6.17

In stock

8

PLATE, STARTER

(137-13128-00-00)

1
Out of stock

9

. PIN, COTTER

91401-12018-00

1
Out of stock

10

SCREW, BIND

98980-04008-00

1

$3.26

In stock

11

GASKET 137131870000

90430-04004-00

1
Out of stock

12

BALL

93505-32002-00

1

$2.22

In stock

13

SPRING (278-13169-00)

90501-02018-00

—

$7.69

In stock

14

NOZZLE

353-13552-01-00

—
Out of stock

15

HOSE (L200)

90445-05N13-00

—

$6.17

In stock

16

HOSE (L200)

90445-05N13-00

—

$6.17

In stock

17

CLIP (214-13164-00)

90468-02033-00

—
Out of stock

18

CLIP (214-13164-00)

90468-02033-00

—
Out of stock

19

GEAR, PUMP CONTROL

(838-13154-01-00)

1
Out of stock

20

COVER, AJST PULLEY

(859-13146-00-00)

1
Out of stock

21

OIL SEAL, SO-TYPE (SO-12-20-4)

93104-12043-00

1
Out of stock

22

SCREW, PAN HEAD

98517-04020-00

—

$6.18

In stock

23

SCREW, PAN HEAD(MK5)

98507-04035-00

—

$6.69

In stock

24

LEVER, PUMP CONTROL

(812-13156-00-00)

1
Out of stock

25

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

26

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

27

SCREW, PAN

98507-06014-00

—

$6.18

In stock

28

ROD, PUMP CONTROL

866-13157-01-00

1
Out of stock

29

. PIN, COTTER

91490-12012-00

1

$2.77

In stock

30

NUT, HEXAGON (807-13139-00)

90170-03008-00

1
Out of stock

31

NUT, SELF-LOCKING (838-13139-00)

90185-03007-00

1
Out of stock
