1974 Yamaha GP433F Carburetor Diagram

← All diagrams

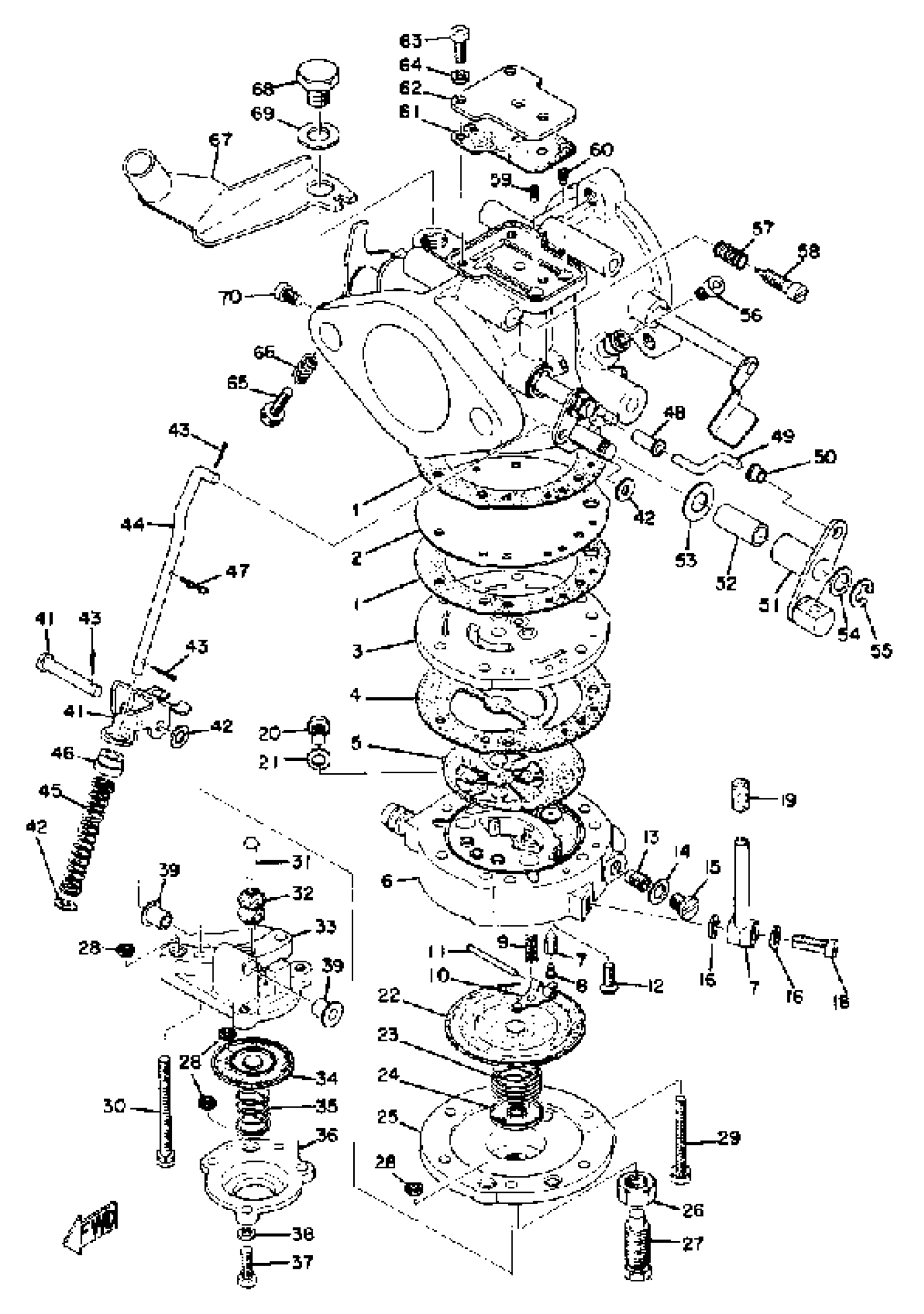

Find the part on the Carburetor diagram for your 1974 Yamaha GP433F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1974 Yamaha GP433F Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET

(865-14536-00-00)

1
Out of stock

1

CARBURETOR ASSEMBLY 1

(866-14501-00-00)

1
Out of stock

2

. DIAPHRAGM, PUMP

865-14541-00-00

1
Out of stock

3

BODY, PUMP 1

(866-14542-00-00)

1
Out of stock

4

GASKET

865-14553-09-00

1

$14.75

In stock

5

VALVE,CHECK

806-14552-01-00

1

$47.25

In stock

6

. BODY, PUMP 2

866-14543-00-00

1
Out of stock

7

VALVE

838-14546-00-00

1

$39.18

In stock

8

. PIN, FLOAT

676-14186-00-00

1

$7.15

In stock

9

. SPRING

810-14556-00-00

1
Out of stock

10

ARM, FLOAT

(810-14547-00-00)

1
Out of stock

11

PIN, FLOAT ARM

(806-14548-00-00)

1
Out of stock

12

SCREW, FLAT

98707-03008-00

1

$5.62

In stock

13

. JET, MAIN #200

866-14517-00-00

1
Out of stock

14

WASHER, PLATE

(90201-06378-00)

1
Out of stock

15

SCREW

(371-14991-60-00)

1
Out of stock

16

. WASHER

806-14559-00-00

1
Out of stock

17

. PIPE, AIRVENT

810-14197-02-00

1
Out of stock

18

. SCREW

8A1-14592-00-00

1
Out of stock

19

. CAP, BLIND

810-24462-01-00

1
Out of stock

20

SCREW

(806-14567-01-00)

1
Out of stock

21

. WASHER

810-14597-00-00

1
Out of stock

22

DIAPHRAGM

810-14545-00-00

—
Out of stock

23

. SPRING, COMPRESSION

90501-06213-00

1
Out of stock

24

SEAT, SPRING

(810-14136-00-00)

1
Out of stock

25

BODY, PUMP 3

(866-14544-00-00)

1
Out of stock

26

. NUT

95380-08700-00

1

$3.07

In stock

27

. SCREW, STOP

824-14565-00-00

1
Out of stock

28

. O-RING

866-14561-00-00

1
Out of stock

29

SCREW

(824-14567-00-00)

1
Out of stock

30

SCREW

(858-14567-00-00)

1
Out of stock

31

. PIN, FLOAT ARM

866-14548-00-00

1
Out of stock

32

COVER

(866-14967-00-00)

1
Out of stock

33

BODY, PUMP 4

(866-14551-00-00)

1
Out of stock

34

DIAPHRAGM

(866-14545-00-00)

1
Out of stock

35

. UNAVAILABLE IN PRICE BOOK

90501-08212-00

1
Out of stock

36

COVER, FUEL

(866-14540-00-00)

1
Out of stock

37

SCREW, PAN HEAD

98511-04012-00

1
Out of stock

38

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock

39

COLLAR

(866-14578-00-00)

1
Out of stock

40

ARM

(866-14528-00-00)

1
Out of stock

41

PIN, LEVER

(866-14554-00-00)

1
Out of stock

42

WASHER, PLATE(3TJ)

90201-08410-00

—
Out of stock

43

. PIN, COTTER

91490-12012-00

1

$2.77

In stock

44

. ROD

866-14577-00-00

1
Out of stock

45

SPRING

(866-14589-00-00)

1
Out of stock

46

COLLAR

(866-14535-00-00)

1
Out of stock

47

SPRING

(866-14579-00-00)

1
Out of stock

48

COLLAR

(865-14535-00-00)

1
Out of stock

49

ROD

(865-14577-00-00)

1
Out of stock

50

. COLLAR

865-14534-00-00

1
Out of stock

51

. LEVER

865-14573-00-00

1
Out of stock

52

COLLAR

(806-14534-00-00)

1
Out of stock

53

. WASHER, PLATE

90202-07055-00

1
Out of stock

54

WASHER, PLATE(3TJ)

90202-06056-00

—
Out of stock

55

CIRCLIP(22K)

99080-05600-00

—

$6.17

In stock

56

JET, MAIN #185

(866-14516-85-00)

1
Out of stock

56

JET, MAIN #190

(866-14516-90-00)

1
Out of stock

56

JET, MAIN #195

(866-14516-95-00)

1
Out of stock

56

. JET, MAIN #200

866-14517-00-00

1
Out of stock

56

JET, MAIN #210

(866-14517-10-00)

1
Out of stock

57

SPRING, COMPRESSION

90501-08214-00

—

$5.74

In stock

58

SCREW, ADJUST

(865-14522-00-00)

1
Out of stock

59

. JET #50 (#50)

865-14515-50-00

1
Out of stock

60

. JET #62 (#62)

865-14515-62-00

1
Out of stock

61

GASKET

(865-14537-00-00)

1
Out of stock

62

PLATE

(865-14527-00-00)

1
Out of stock

63

SCREW, PAN HEAD (E56)

98580-04010-00

—

$6.17

In stock

64

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock

65

SCREW, STOP

(810-14523-00-00)

1
Out of stock

66

SPRING, AJST SCREW

(806-14533-00-00)

1
Out of stock

67

. BRACKET, THROTTLE

865-14571-01-00

1
Out of stock

68

BOLT(62E)

97013-08012-00

—

$2.48

In stock

69

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

70

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock
