1972 Yamaha GP292 Head Lamp GP-292B Diagram

← All diagrams

Find the part on the Head Lamp GP-292B diagram for your 1972 Yamaha GP292, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

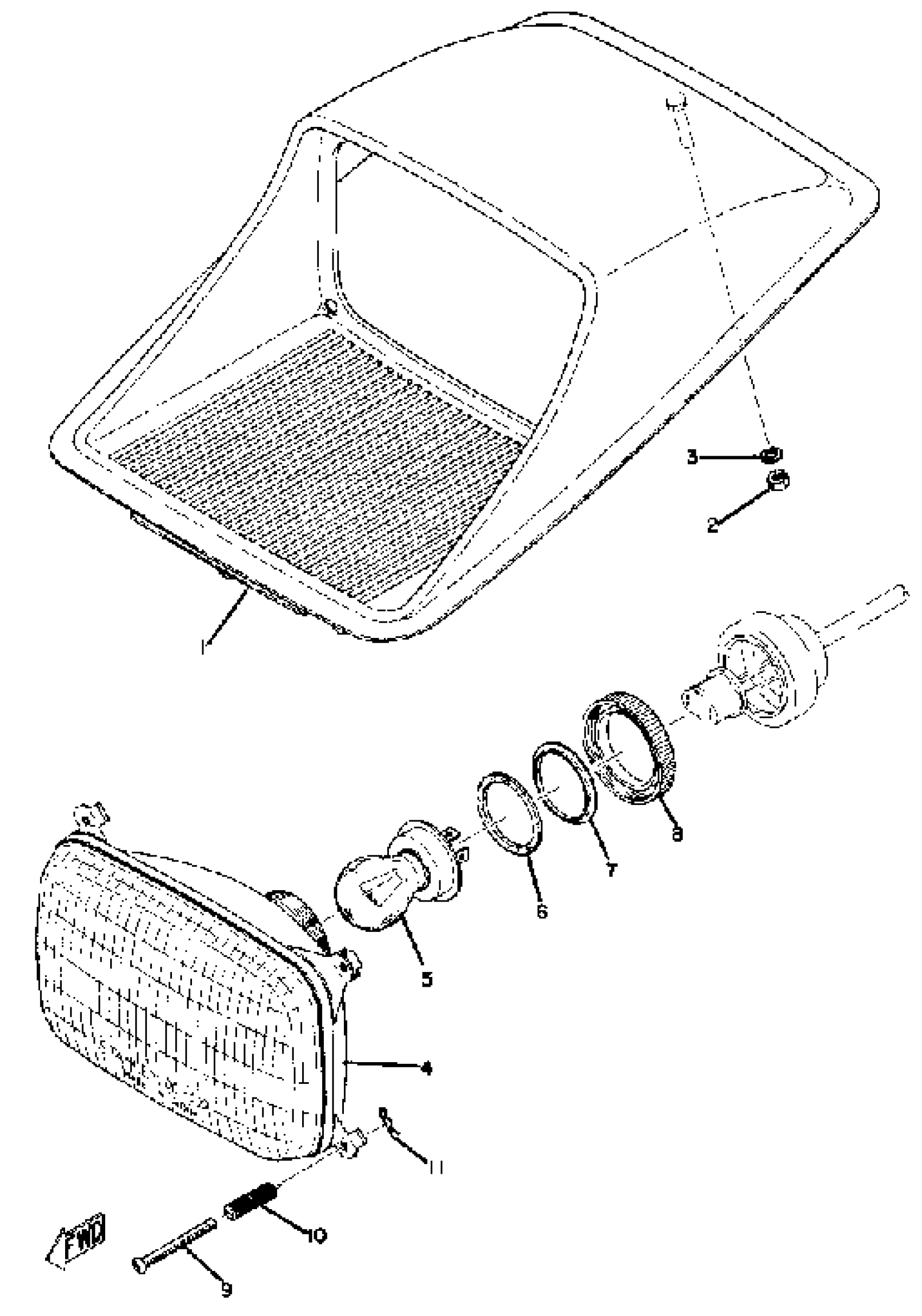

1972 Yamaha GP292 Head Lamp GP-292B Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LENS ASSEMBLY

(838-84320-01-00)

1
Out of stock

1

BODY, HEADLIGHT

(841-84311-00-00)

1
Out of stock

2

NUT, HEXAGON

95317-05600-00

1

$1.10

In stock

3

WASHER(3SX)

92907-05100-00

1

$6.18

In stock

4

LENS ASSEMBLY

(838-84320-01-00)

1
Out of stock

5

. BULB, HEADLIGHT

838-84314-00-00

1
Out of stock

6

. WASHER, SPECIAL

838-84327-00-00

1
Out of stock

7

. SPACER

838-84328-00-00

1
Out of stock

8

. NUT

838-84317-00-00

1
Out of stock

9

SCREW, ADJUSTING

8M6-84331-00-00

1

$14.80

In stock

10

SPRING, ADJUST SCREW

8A5-84332-00-00

1

$7.40

In stock

11

CLAMP, CORD

(807-84351-00-00)

1
Out of stock
← Head Lamp GP-292 Speedometer - Gear Unit →
