1972 Yamaha GP292 Head Lamp GP-292 Diagram

← All diagrams

Find the part on the Head Lamp GP-292 diagram for your 1972 Yamaha GP292, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

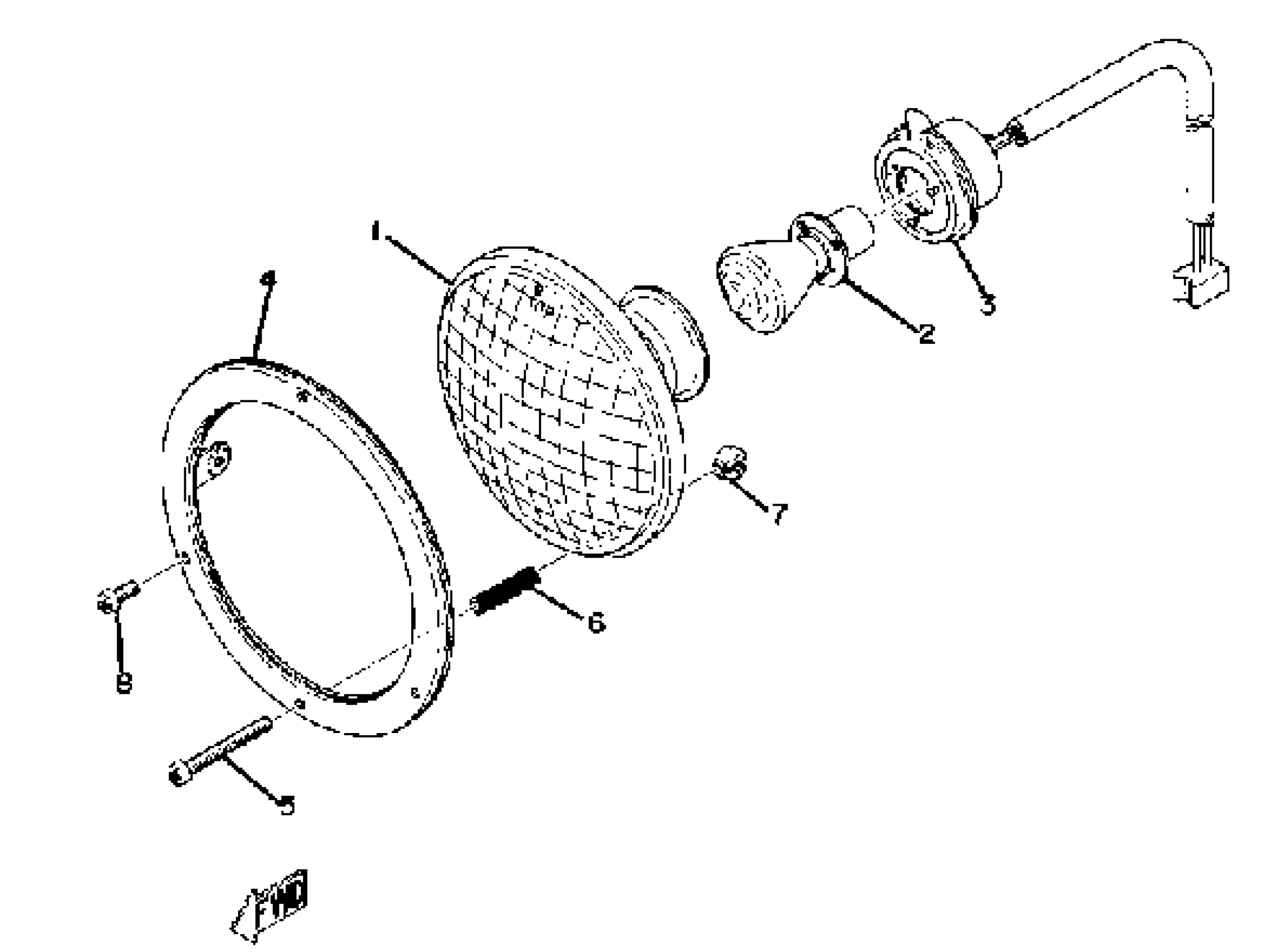

1972 Yamaha GP292 Head Lamp GP-292 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

. LENS ASSEMBLY

817-84320-00-00

1
Out of stock

1

HEADLIGHT UNIT ASSEMBLY

821-84310-00-00

1
Out of stock

2

. BULB, HL12V35/35W

183-84314-60-00

1
Out of stock

3

SOCKET

(821-84312-00-00)

1
Out of stock

4

RIM, HEADLIGHT

(817-84315-00-00)

1
Out of stock

5

. SCREW, RIM ADJUSTING

817-84331-00-00

1
Out of stock

6

SPRING, SCREW

(817-84332-00-00)

1
Out of stock

7

NUT, ADJUSTING

(817-84334-00-00)

1
Out of stock

8

SCREW, PAN HEAD

98517-04020-00

1

$6.18

In stock
← Grip Wiring Head Lamp GP-292B →
