1972 Yamaha GP292 Intake GP-292 Diagram

← All diagrams

Find the part on the Intake GP-292 diagram for your 1972 Yamaha GP292, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

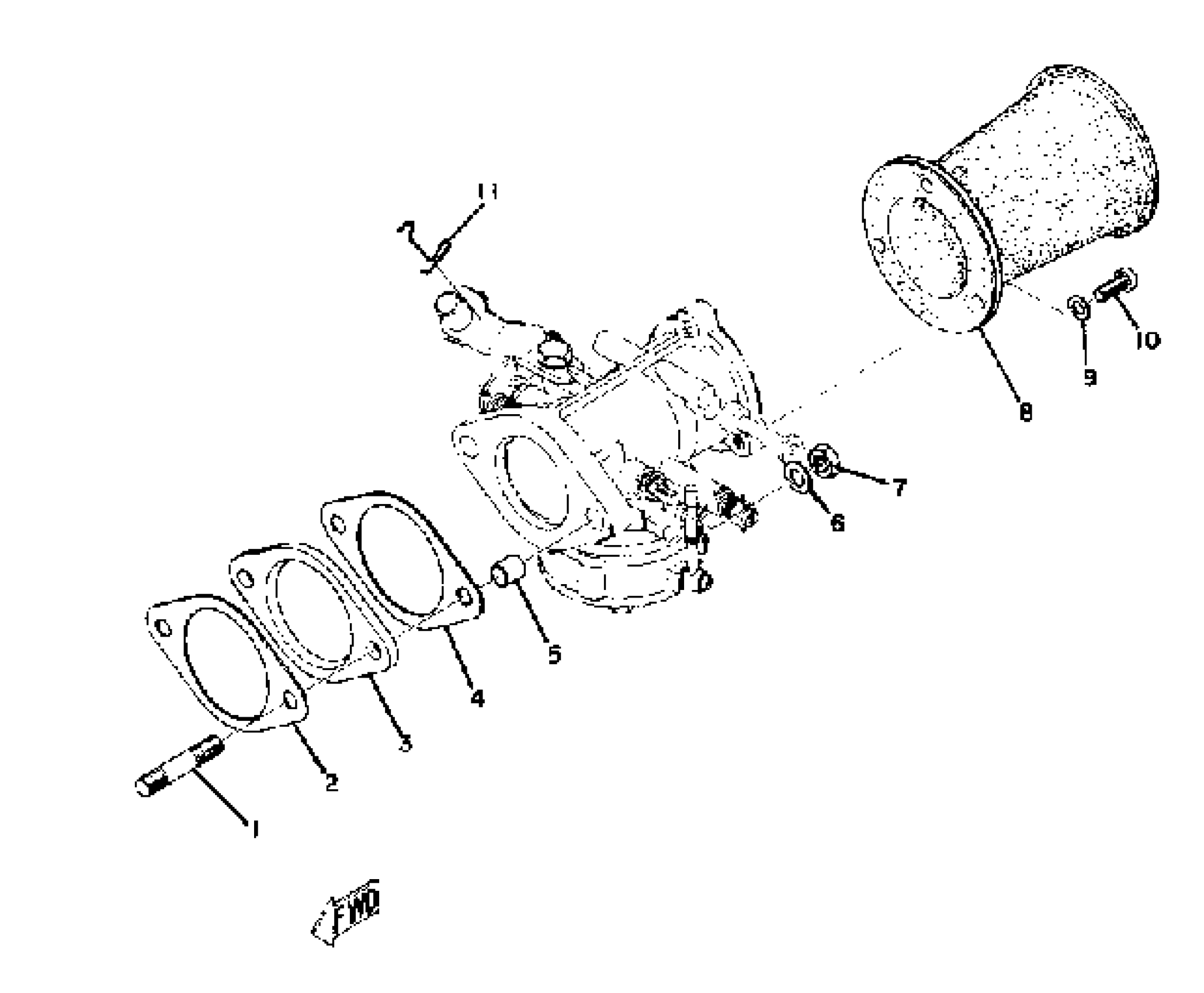

1972 Yamaha GP292 Intake GP-292 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOLT,STUD

90116-08423-00

1
Out of stock

2

GASKET, MANIFOLD

812-13556-09-00

1
Out of stock

3

MANIFOLD, INTAKE

(823-13555-00-00)

1
Out of stock

4

GASKET, MANIFOLD

(823-13556-01-00)

1
Out of stock

5

SPACER

(810-13576-00-00)

1
Out of stock

6

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

7

. NUT

95380-08700-00

1

$3.07

In stock

8

FUNNEL

(823-14479-00-00)

1
Out of stock

9

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

10

SCREW, PAN

98507-06014-00

1

$6.18

In stock

11

CLAMP, THROTTLE

822-41222-00-00

1
Out of stock
← Fuel Tank GP-292B Intake GP-292B →

More Air & Fuel diagrams
