1972 Yamaha GP292 Carburetor GP-292B Diagram

← All diagrams

Find the part on the Carburetor GP-292B diagram for your 1972 Yamaha GP292, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

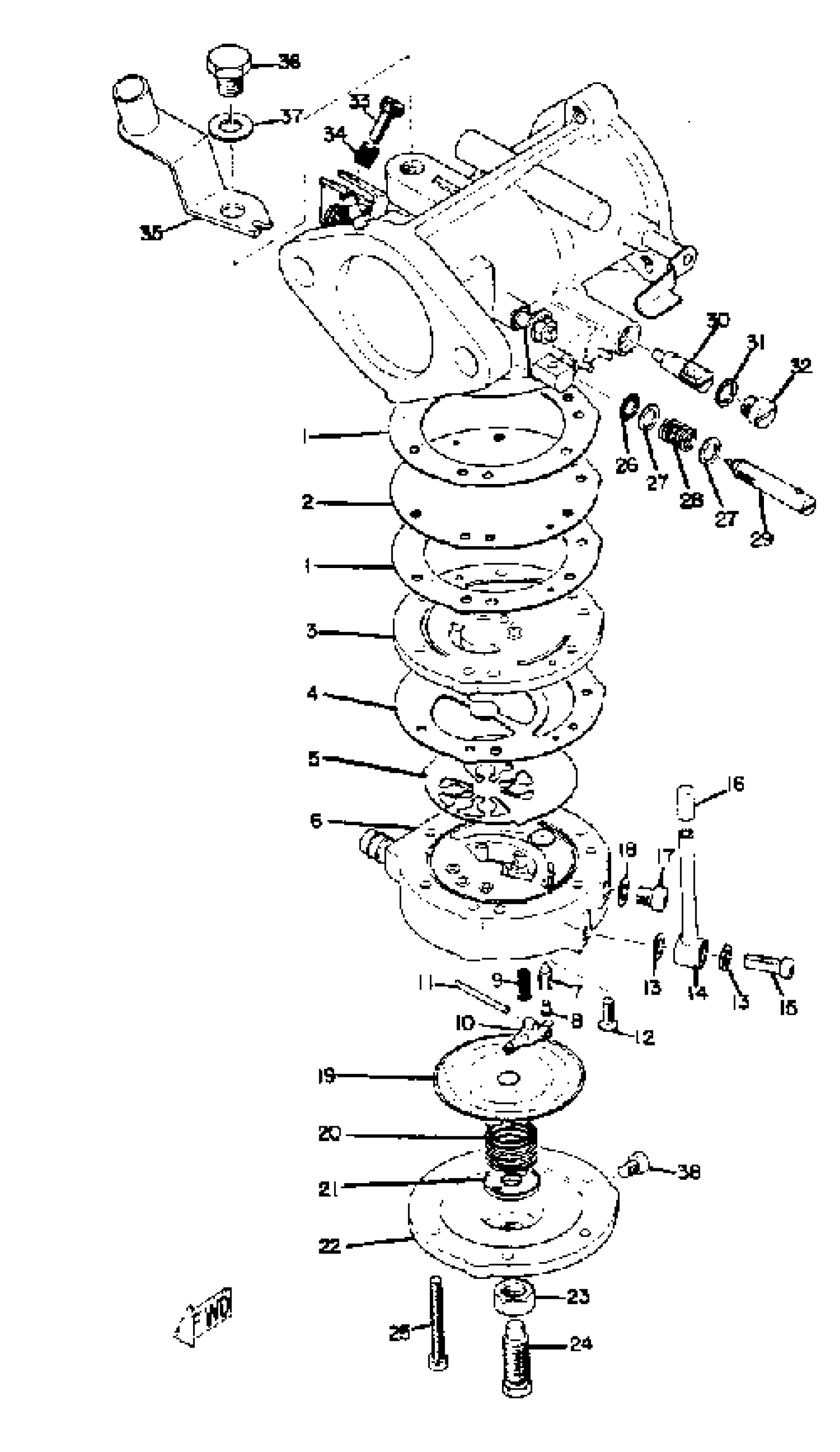

1972 Yamaha GP292 Carburetor GP-292B Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET

838-14536-09-00

1

$11.29

In stock

1

CARBURETOR ASSEMBLY 1

(845-14501-00-00)

1
Out of stock

2

. DIAPHRAGM, PUMP

834-14541-00-00

1
Out of stock

3

BODY, PUMP 1

(838-14542-00-00)

1
Out of stock

4

GASKET

834-14553-09-00

1
Out of stock

5

VALVE,CHECK

806-14552-01-00

1

$47.25

In stock

6

BODY, PUMP 2

(810-14543-00-00)

1
Out of stock

7

VALVE

838-14546-00-00

1

$39.18

In stock

8

. PIN, FLOAT

676-14186-00-00

1

$7.15

In stock

9

. SPRING

810-14556-00-00

1
Out of stock

10

ARM, FLOAT

(810-14547-00-00)

1
Out of stock

11

PIN, FLOAT ARM

(806-14548-00-00)

1
Out of stock

12

SCREW, FLAT

98707-03008-00

1

$5.62

In stock

13

. WASHER

806-14559-00-00

1
Out of stock

14

. PIPE, AIRVENT

810-14197-02-00

1
Out of stock

15

. SCREW

8A1-14592-00-00

1
Out of stock

16

. CAP, BLIND

810-24462-01-00

1
Out of stock

17

SCREW

(806-14567-01-00)

1
Out of stock

18

. WASHER

810-14597-00-00

1
Out of stock

19

DIAPHRAGM

810-14545-00-00

—
Out of stock

20

SPRING

(810-14555-00-00)

1
Out of stock

21

SEAT, SPRING

(810-14136-00-00)

1
Out of stock

22

BODY, PUMP 3

(810-14544-00-00)

1
Out of stock

23

. NUT

95380-08700-00

1

$3.07

In stock

24

. SCREW, STOP

824-14565-00-00

1
Out of stock

25

SCREW

(824-14567-00-00)

1
Out of stock

26

. O-RING

824-14563-00-00

1
Out of stock

27

. WASHER

838-14596-00-00

1
Out of stock

28

SPRING, AJST SCREW

(824-14531-00-00)

1
Out of stock

29

SCREW, ADJUST

(838-14522-00-00)

1
Out of stock

30

. JET, MAIN #135

845-14516-35-00

1
Out of stock

30

. JET, MAIN #140

845-14516-40-00

1
Out of stock

30

JET, MAIN #145

(845-14516-45-00)

1
Out of stock

30

. JET, MAIN #150

845-14516-50-00

1
Out of stock

30

JET, MAIN #155

(845-14516-55-00)

1
Out of stock

31

WASHER

(810-14558-00-00)

1
Out of stock

32

SCREW

(845-14567-00-00)

1
Out of stock

33

SCREW, STOP

(810-14523-00-00)

1
Out of stock

34

SPRING, AJST SCREW

(806-14533-00-00)

1
Out of stock

35

BRACKET, THROTTLE

(823-14571-00-00)

1
Out of stock

36

BOLT(62E)

97013-08012-00

—

$2.48

In stock

37

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

38

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock
