1981 Suzuki GN400T Turn Signal Lamp Diagram

← All diagrams

Find the part on the Turn Signal Lamp diagram for your 1981 Suzuki GN400T, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

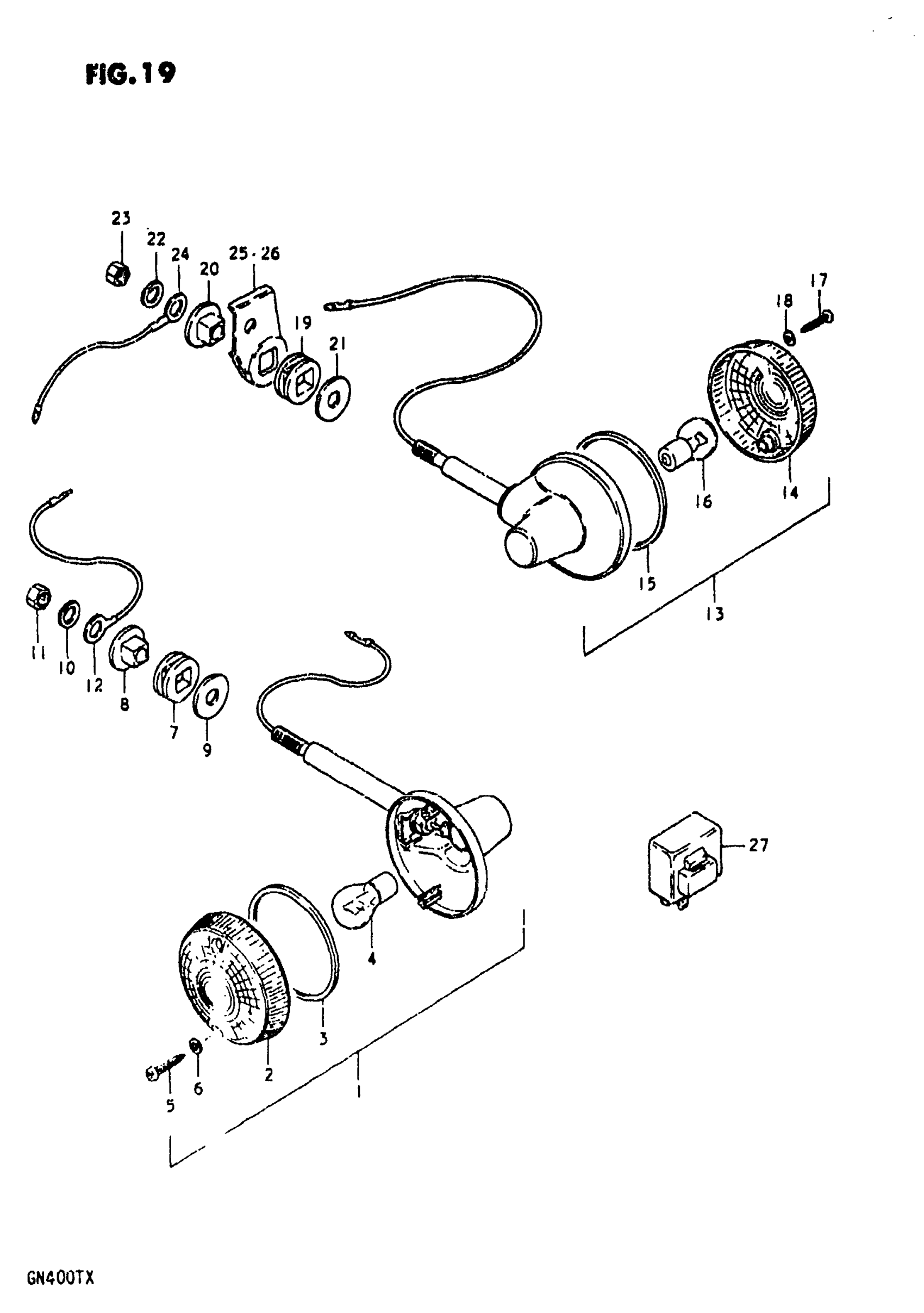

1981 Suzuki GN400T Turn Signal Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP ASSY,FR TR | Includes Item(s) 2 - 6 This part replaces 35601-30531.

35601-39370-999

2
Out of stock

2

LENS

35612-28620

2
Out of stock

3

GASKET

35613-28620

2
Out of stock

4

BULB (6V,21CP)

09471-06011

2
Out of stock

5

SCREW This part replaces 35623-47610.

03211-04207

4
Out of stock

6

GASKET

35627-43010

4
Out of stock

7

RR TURN SIG CUS This part replaces 35690-32200.

35690-32201

2
Out of stock

8

SPACER This part replaces 35695-32400.

35695-32401

2
Out of stock

9

WASHER, UPPER, OUTER This part replaces 09160-10006.

09160-10501

2
Out of stock

10

LOCK WASHER This part replaces 08321-21108.

08321-01107

2
Out of stock

11

NUT This part replaces 08310-11108.

08310-00107

2
Out of stock

12

LEAD WIRE, EARTH

36660-33000

2
Out of stock

13

LAMP RR TURN SI | Includes Item(s) 14 - 18 This part replaces 35603-30531.

35603-32620-999

2
Out of stock

14

LENS

35612-28620

2
Out of stock

15

GASKET

35613-28620

2
Out of stock

16

BULB (6V,21CP)

09471-06011

2
Out of stock

17

SCREW This part replaces 35623-47610.

03211-04207

4
Out of stock

18

GASKET

35627-43010

4
Out of stock

19

RR TURN SIG CUS This part replaces 35690-32200.

35690-32201

2
Out of stock

20

SPACER This part replaces 35695-32400.

35695-32401

2
Out of stock

21

WASHER, UPPER, OUTER This part replaces 09160-10006.

09160-10501

2
Out of stock

22

LOCK WASHER This part replaces 08321-21108.

08321-01107

2
Out of stock

23

NUT This part replaces 08310-11108.

08310-00107

2
Out of stock

24

LEAD WIRE, EARTH

36862-44000

2
Out of stock

25

BRACKET, REAR RH

41580-45000-019

1
Out of stock

26

BRACKET, REAR LH

41590-45000-019

1
Out of stock

27

RELAY ASSY,TRN This part replaces 38610-48600.

38610-05X50

1
Out of stock
