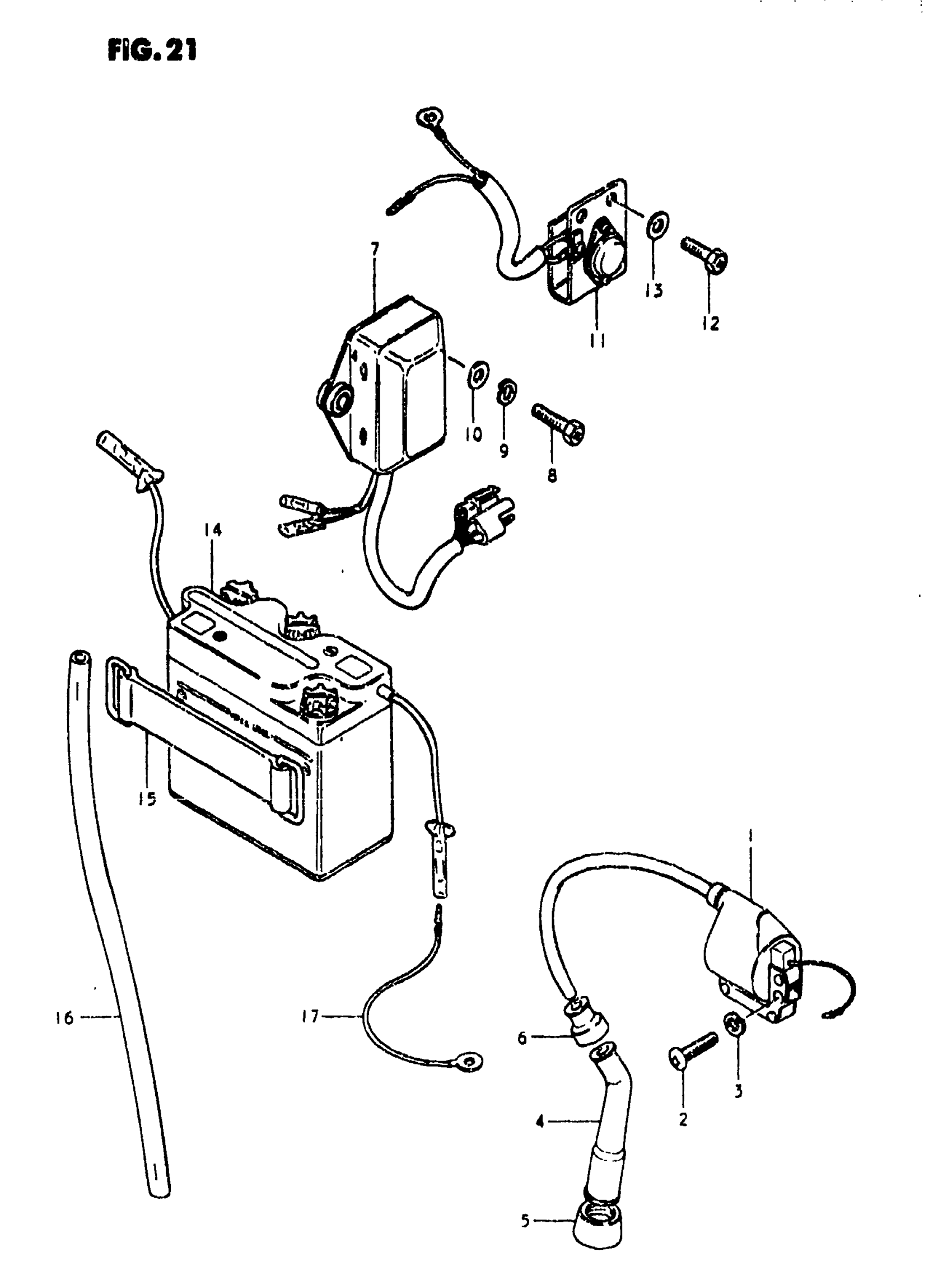

Suzuki GN400T (1981) ELECTRICAL Diagram

#

Description
Price

1

COIL ASSY,IGNIT This part replaces 33410-43010.

33410-43011

Unavailable

2

SCREW This part replaces 02112-06208.

02112-06207

$1.77

3

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.83

4

CAP, SPARK PLUG

33510-45010

$23.52

5

SEAL, SPARK PLUG This part replaces 33541-32410.

33541-38210

$4.40

6

SEAL,HIGH TENSION CORD (SIDE) This part replaces 33542-98000.

33542-38B00

$3.97

7

CDI UNIT

32900-32450

Unavailable

8

BOLT This part replaces 09128-06006.

09128-06057

$1.64

9

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.83

10

WASHER This part replaces 08322-21068.

08322-01067

$1.86

11

REGULATOR, VOLTAGE This part replaces 32500-27600.

32500-25600

Unavailable

12

SCREW This part replaces 09128-06002.

02162-0616B

$2.06

12

FRM CVR,SCREW(6 This part replaces 09128-06025.

09128-06092

$1.91

13

WASHER This part replaces 08322-21068.

08322-01067

$1.86

14

6N4B-2A BATTERY This part replaces 33610-32620.

33610-03611

$85.70

15

BAND

09462-00046

$3.33

16

HOSE,BATTERY EX This part replaces 33680-08401.

33680-16A11

$7.65

17

LEAD WIRE, BATTERY (-)

36862-27690

$5.88
