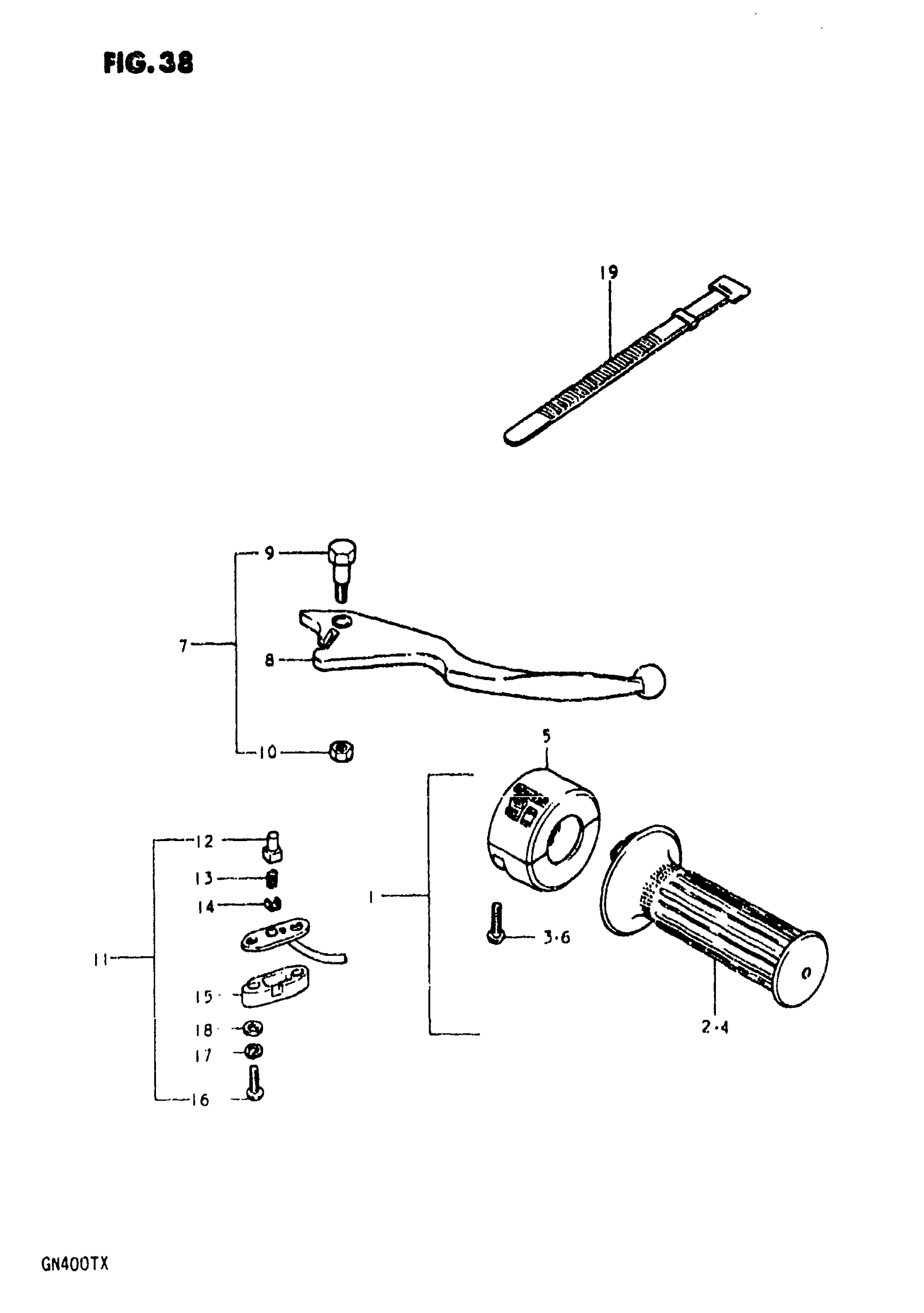

Suzuki GN400T (1981) RIGHT HANDLE SWITCH Diagram

#

Description
Price

1

CASE ASSY, THROTTLE | GN400T; Includes Item(s) 2 - 3 This part replaces 57100-30510.

57100-30540

Unavailable

2

GRIP, THROTTLE | GN400T

57110-30501

$39.63

3

SCREW | GN400T This part replaces 02112-05258.

02112-05257

$1.55

4

GRIP, THROTTLE | GN400TX

57110-30501

$39.63

5

CASE ASSY, THROTTLE | GN400TX; Includes Item(s) 6

57100-30540

Unavailable

6

SCREW | GN400TX This part replaces 02112-05258.

02112-05257

$1.55

7

LEVER, BRAKE | Includes Item(s) 8 - 10 This part replaces 57300-37300.

57420-49101

$32.45

8

LEVER, BRAKE This part replaces 57420-37300.

57420-49101

$32.45

9

BOLT

57431-18621

$9.35

10

.NUT This part replaces 08319-21068.

08319-2106A

$1.97

11

SWITCH ASSY, ST | Includes Item(s) 12 - 18 This part replaces 57460-49100.

57460-45500

$34.66

12

HOLDER This part replaces 57461-18600.

57465-18601

$4.15

13

HOLDER This part replaces 57462-18600.

57465-18601

$4.15

14

HOLDER This part replaces 57463-18600.

57465-18601

$4.15

15

COVER

57481-33010

$5.74

16

SCREW This part replaces 09125-03105.

09125-03105-XC0

$2.08

17

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.22

18

WASHER This part replaces 08322-21038.

08322-01037

$2.01

19

BAND (L:120)

09407-12402

$2.82
