1981 Suzuki GN400T Rear Wheel (GN400XT Diagram

← All diagrams

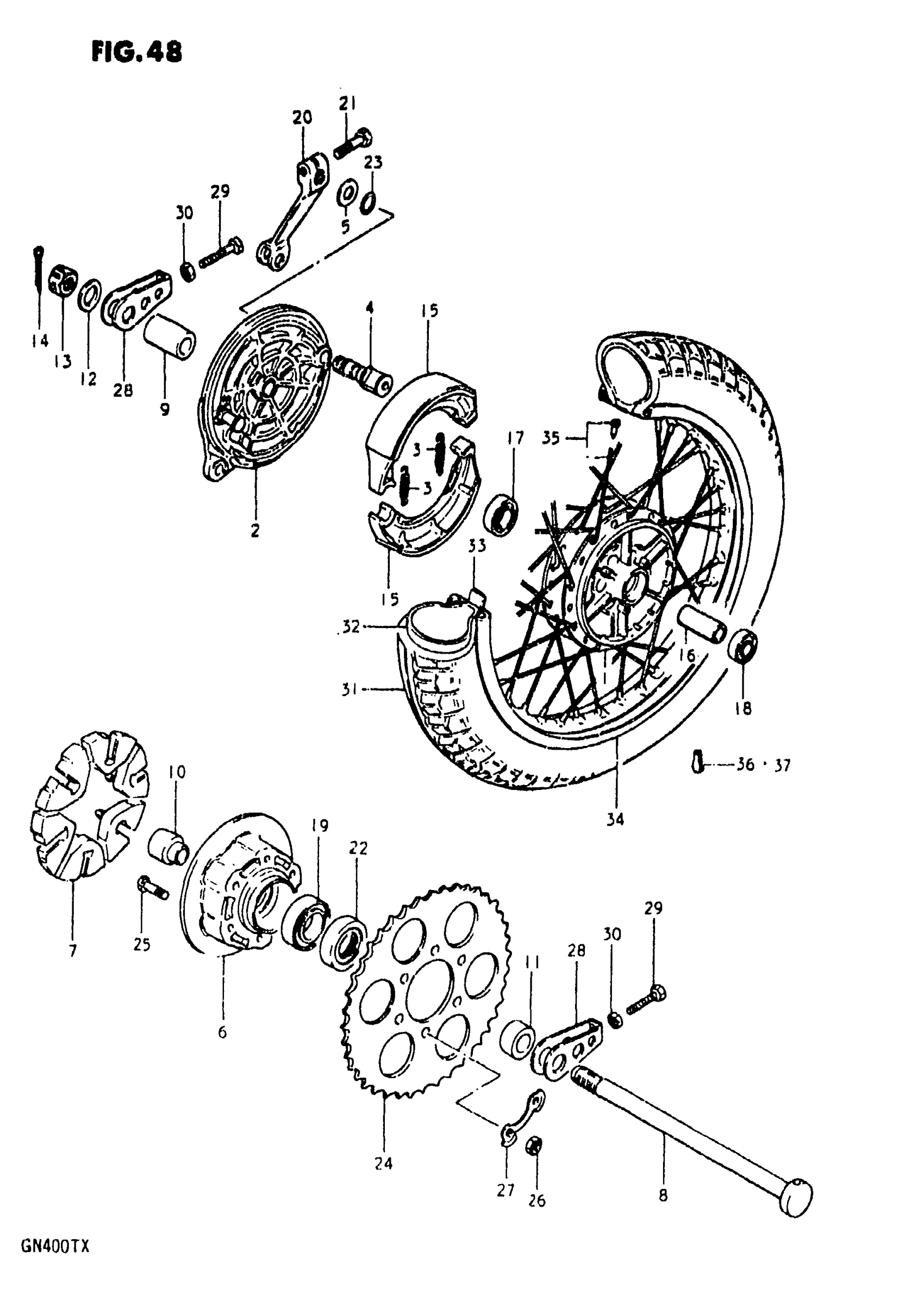

Find the part on the Rear Wheel (GN400XT diagram for your 1981 Suzuki GN400T, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Suzuki GN400T Rear Wheel (GN400XT Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR WHEEL | MODEL T This part replaces 64110-37300.

64110-37301

1
Out of stock

1

HUB, REAR WHEEL | MODEL X

64110-37301

1
Out of stock

2

PANEL

64210-37300

1
Out of stock

3

SPRING

55420-41100

2
Out of stock

4

CAM, REAR BRAKE This part replaces 54440-08003.

54440-08004

1
Out of stock

5

WASHER This part replaces 09160-15001.

09160-15048

1
Out of stock

6

DRUM, SPROCKET MOUNTING

64611-37300

1
Out of stock

7

SHOCK ABSORBER, REAR DRUM

64651-11300

6
Out of stock

8

AXLE, REAR

64711-34001

1
Out of stock

9

SPACER, RH

09180-17057

1
Out of stock

10

RETAINER, SPROCKET DRUM

64733-34000

1
Out of stock

11

SPACER, LH

09180-17042

1
Out of stock

12

WASHER (17X30X3.2) This part replaces 09160-17013.

09160-17050

1
Out of stock

13

NUT

09141-16001

1
Out of stock

14

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

1
Out of stock

15

SHOE SET, BRAKE This part replaces 64410-11301.

64400-11860

2
Out of stock

16

SPACER,17.6X24X This part replaces 09180-17056.

09180-17056-XC0

1
Out of stock

17

BEARING, REAR HUB RH

08143-63037

1
Out of stock

18

BEARING, REAR HUB LH

08143-62037

1
Out of stock

19

BEARING

08113-62057

1
Out of stock

20

LEVER, BRAKE CAM

64451-44001

1
Out of stock

21

BOLT This part replaces 01107-06258.

01500-06257

1
Out of stock

22

SEAL,OIL(30.5X5 This part replaces 09285-30001.

09285-30003

1
Out of stock

23

O RING (ID:14.8,D:2.40) This part replaces 09280-15001.

09280-15003

1
Out of stock

24

SPROCKET, REAR (NT:37)

64511-37310

1
Out of stock

25

BOLT This part replaces 09119-10002.

09105-10001

6
Out of stock

26

NUT This part replaces 08310-12108.

08310-00107

6
Out of stock

27

LOCK WASHER

09169-10007

3
Out of stock

28

ADJUSTER, CHAIN

61420-37300

2
Out of stock

29

BOLT (8X50) This part replaces 09104-08018.

09104-08034

2
Out of stock

30

2

$1.93

In stock
