1981 Suzuki GN400T Rear Wheel (GN400T Diagram

← All diagrams

Find the part on the Rear Wheel (GN400T diagram for your 1981 Suzuki GN400T, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

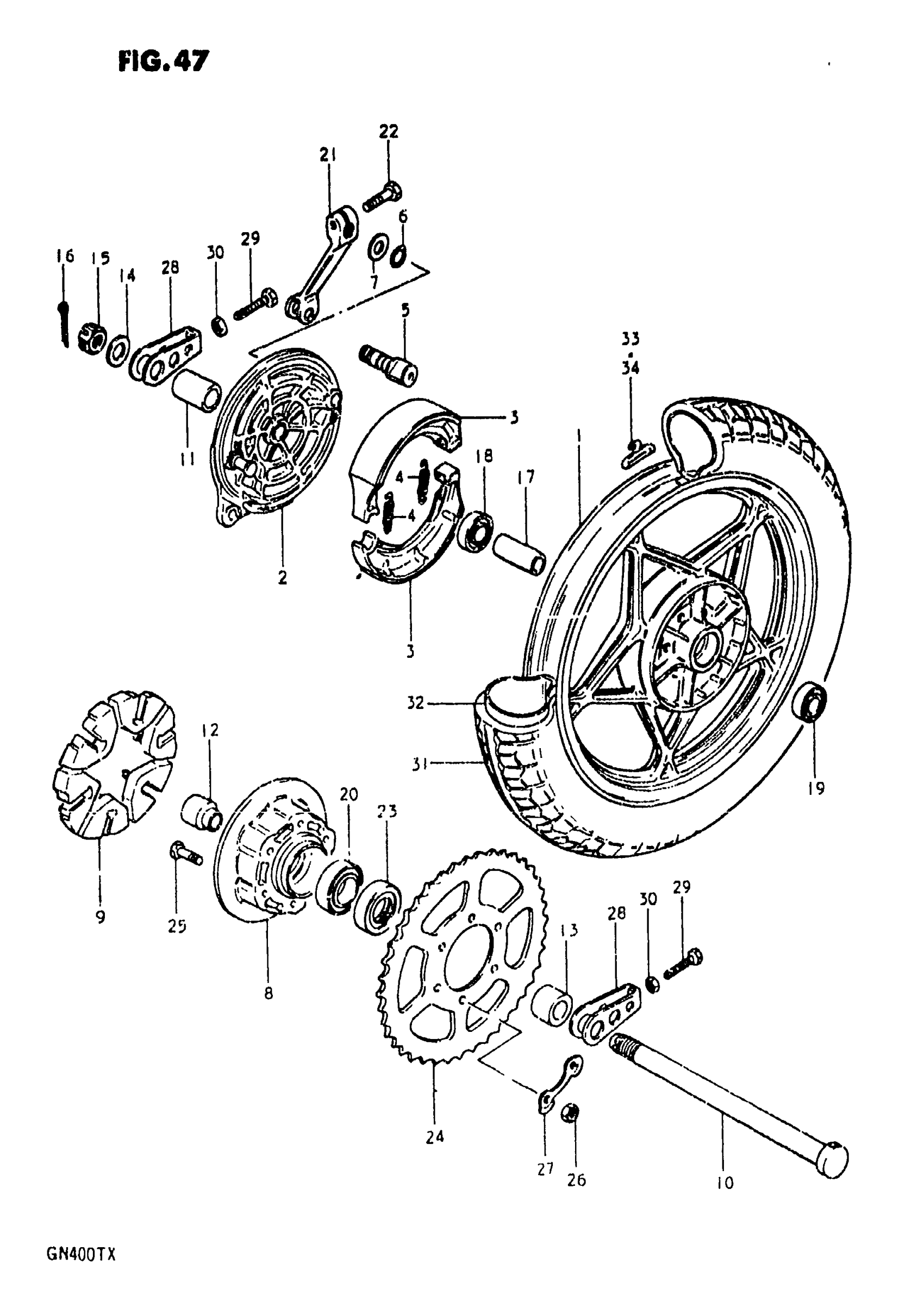

1981 Suzuki GN400T Rear Wheel (GN400T Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE This part replaces 64150-37310.

64150-37300-12V

1
Out of stock

2

PANEL

64210-37300

1
Out of stock

3

SHOE SET, BRAKE This part replaces 64410-11301.

64400-11860

2
Out of stock

4

SPRING

55420-41100

2
Out of stock

5

1

$31.18

In stock

7

1

$2.78

In stock

8

DRUM, SPROCKET

64611-37300

1
Out of stock

9

6

$15.37

In stock

10

AXLE, REAR

64711-34001

1
Out of stock

11

SPACER, RH

09180-17057

1
Out of stock

12

RETAINER, SPROCKET DRUM

64733-34000

1
Out of stock

13

SPACER, LH

09180-17042

1
Out of stock

14

WASHER (17X30X3.2) This part replaces 09160-17013.

09160-17050

1
Out of stock

15

NUT

09141-16001

1
Out of stock

16

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

1
Out of stock

17

SPACER,17.6X24X This part replaces 09180-17056.

09180-17056-XC0

1
Out of stock

18

BEARING, REAR HUB RH

08143-63037

1

$21.98

In stock

19

BEARING, REAR HUB LH

08143-62037

1

$17.89

In stock

20

BEARING

08113-62057

1

$27.83

In stock

21

LEVER, BRAKE CAM

64451-44001

1
Out of stock

22

1

$2.10

In stock

23

1

$26.05

In stock

24

SPROCKET, REAR (NT:37)

64511-37310

1
Out of stock

25

BOLT This part replaces 09119-10002.

09105-10001

6
Out of stock

26

6

$2.35

In stock

27

LOCK WASHER

09169-10007

3
Out of stock

28

ADJUSTER, CHAIN

61420-37300

2
Out of stock

29

BOLT (8X50) This part replaces 09104-08018.

09104-08034

2
Out of stock

30

2

$1.93

In stock

31

TIRE, REAR (4,60S16) BS | IRC This part replaces 65100-37310.

65100-38330

1
Out of stock

31

TIRE, REAR (4 60S16) | BS

65100-37330

1
Out of stock

32

TUBE, INNER REAR

65200-37300

1
Out of stock

34

BALANCER | (0~3)

55412-45100

—
Out of stock
