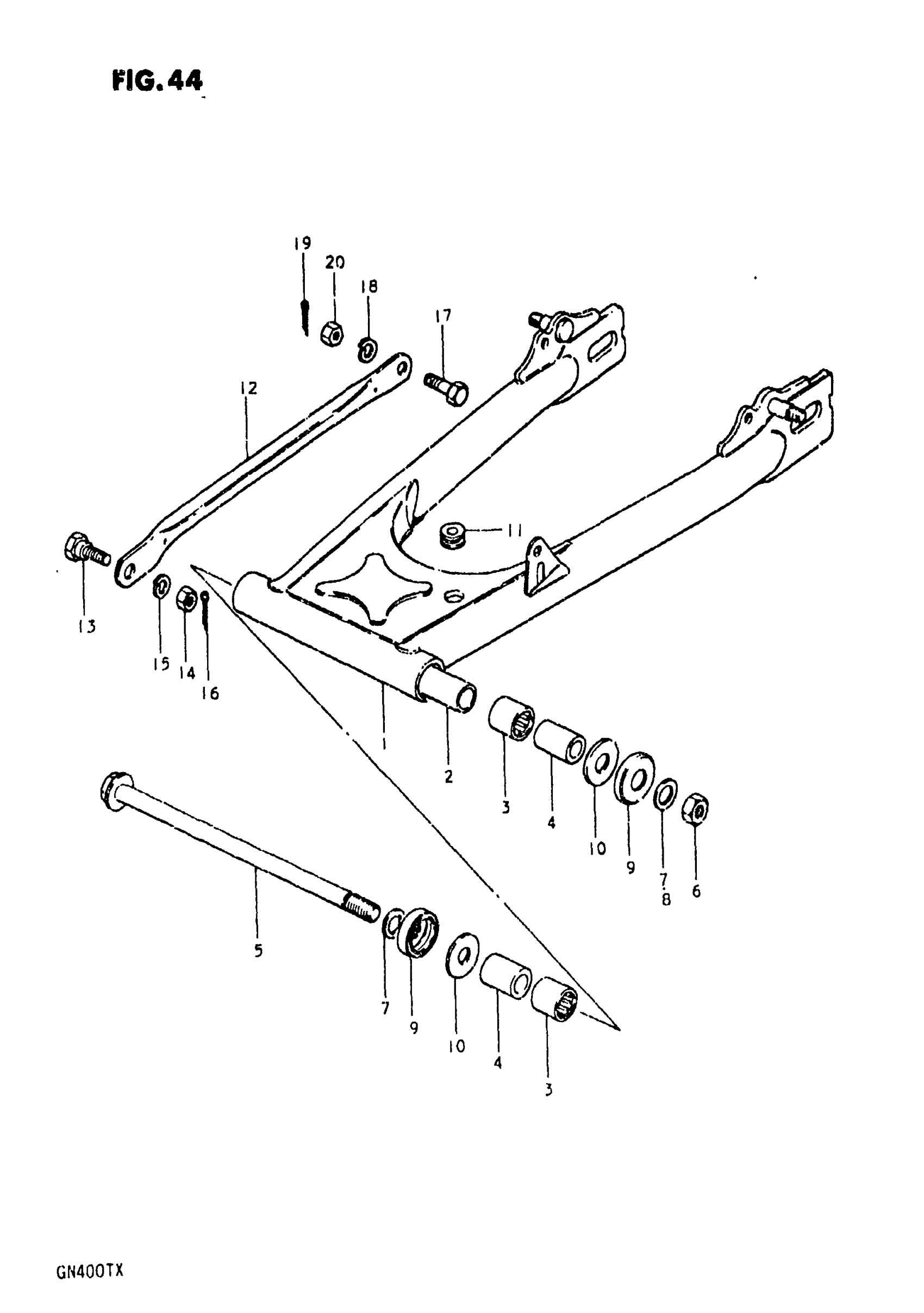

Suzuki GN400T (1981) REAR SWINGING ARM Diagram

#

Description
Price

1

REAR SWINGING ARM SET | Includes Item(s) 2 - 4

61100-37840-019

Unavailable

2

SPACER

09180-16022

Unavailable

3

BEARING

09263-22017

$21.09

4

SPACER, PIVOT This part replaces 61251-37300.

61251-38B00

$14.48

5

SHAFT, PIVOT | MODEL T This part replaces 61211-37300.

61211-37301

Unavailable

5

SHAFT, PIVOT | MODEL X

61211-37301

Unavailable

6

NUT This part replaces 08319-21168.

08319-2116A

$9.78

7

WASHER | MODEL T This part replaces 08322-11167.

08322-01167

$2.43

8

WASHER | MODEL X This part replaces 08322-11167.

08322-01167

$2.43

9

COVER DUST SEAL This part replaces 61262-32410.

61262-32411

$10.97

10

WASHER

08211-16341

$3.05

11

CUSHION

09320-08020

$3.70

12

NO DESCRIPTION AVAILABLE This part replaces 64311-31001.

64311-31001-13L

Unavailable

13

BOLT, FRONT

09111-08012

$4.12

14

NUT, FRONT

09140-08008

$1.49

15

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$1.89

16

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.25

17

BOLT, REAR

09101-10003

Unavailable

18

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.89

19

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.25

20

NUT This part replaces 08310-11108.

08310-00107

$2.25
