1981 Suzuki GN400T Master Cylinder (GN400XT Diagram

← All diagrams

Find the part on the Master Cylinder (GN400XT diagram for your 1981 Suzuki GN400T, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

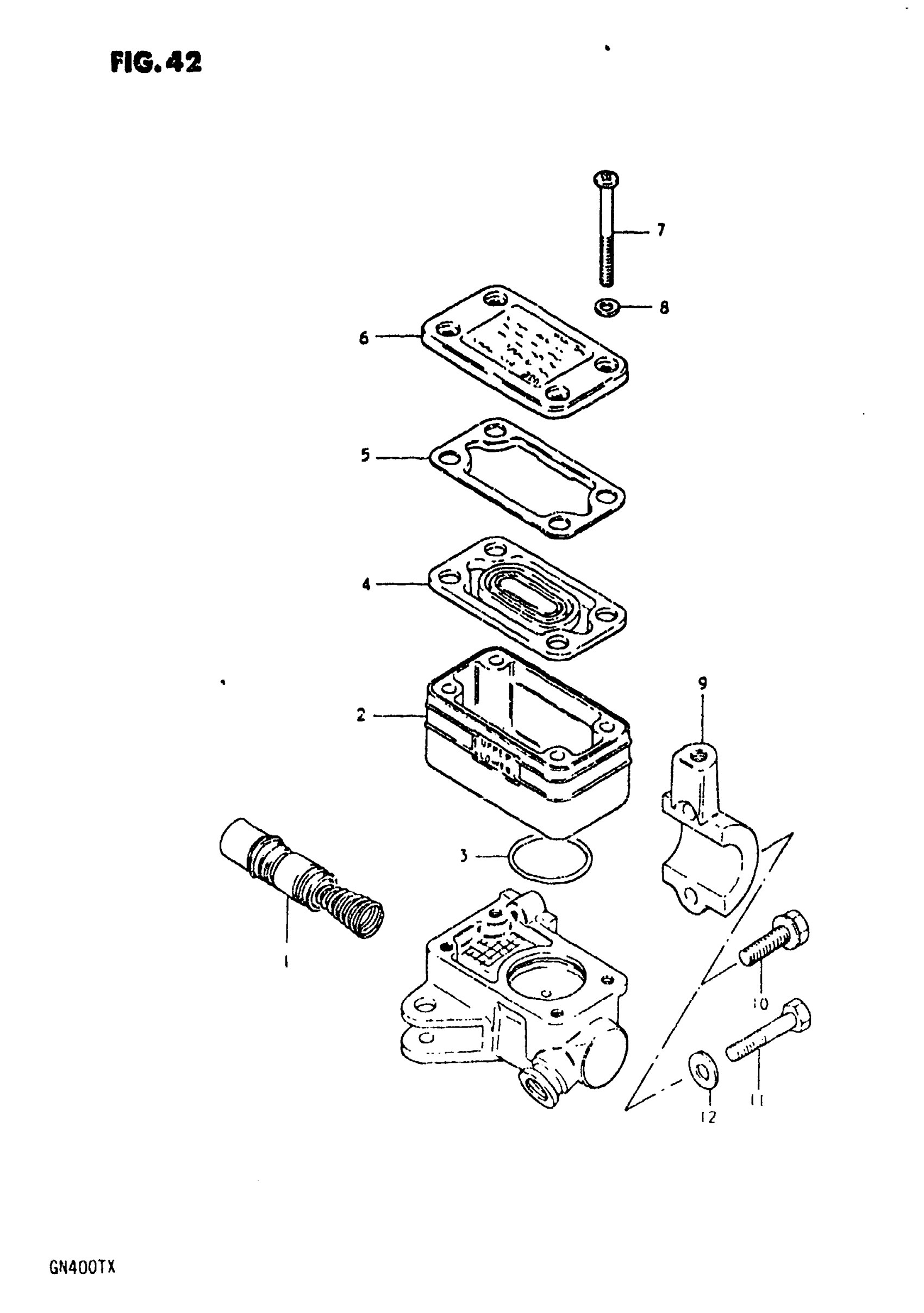

1981 Suzuki GN400T Master Cylinder (GN400XT Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

0

CYLINDER ASSY, MASTER | GN400XT This part replaces 59600-45230.

59600-45231

1
Out of stock

0

CYLINDER ASSY, MASTER | GN400XX; Includes Item(s) 1 - 12

59600-45231

1
Out of stock

1

PISTON & CUP SET | GN400XT This part replaces 59600-45840.

59600-45841

1
Out of stock

1

PISTON & CUP SET | GN400XX

59600-45841

1
Out of stock

2

RESERVOIR

59687-45100

1
Out of stock

3

O RING

59686-45100

1
Out of stock

4

DIAPHRAGM

59667-45100

1
Out of stock

5

PLATE, DIAPHRAGM | GN400XT This part replaces 59668-45100.

59668-45101

1
Out of stock

5

PLATE, DIAPHRAGM | GN400XX

59668-45101

1
Out of stock

6

CAP

59669-45130

1
Out of stock

7

SCREW

59691-45100

4
Out of stock

8

WASHER

59692-45100

4
Out of stock

9

HOLDER

59671-45100

1
Out of stock

10

BOLT | GN400XT This part replaces 59693-45100.

01500-06257

2
Out of stock

11

BOLT | GN400XX This part replaces 01107-06258.

01500-06257

2
Out of stock

12

WASHER | GN400XX This part replaces 08322-21068.

08322-01067

2
Out of stock
