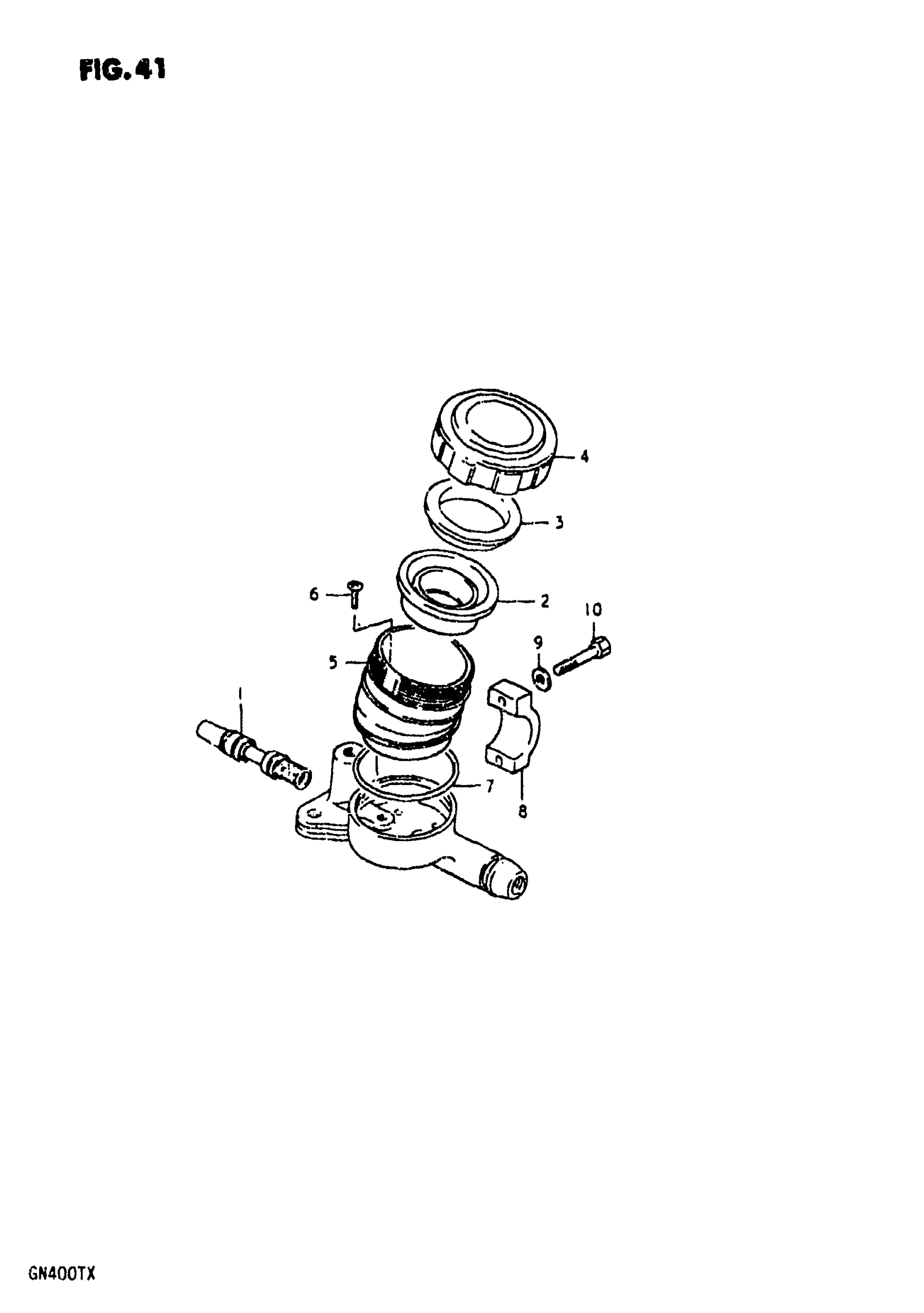

1981 Suzuki GN400T Master Cylinder (GN400T Diagram

← All diagrams

Find the part on the Master Cylinder (GN400T diagram for your 1981 Suzuki GN400T, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Suzuki GN400T Master Cylinder (GN400T Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

0

CYLINDER ASSY, MASTER | Includes Item(s) 1 - 10

59600-45080

1
Out of stock

1

PISTON / CUP SET This part replaces 59600-45820.

59600-45821

1
Out of stock

2

DIAPHRAGM

59667-18441

1
Out of stock

3

PLATE

59668-18441

1
Out of stock

4

1

$35.80

In stock

5

RESERVOIR

59687-45050

1
Out of stock

6

SCREW

59688-33601

2
Out of stock

7

O RING

59686-33600

1
Out of stock

8

HOLDER

59671-18441

1
Out of stock

9

2

$1.84

In stock

10

2

$2.10

In stock
