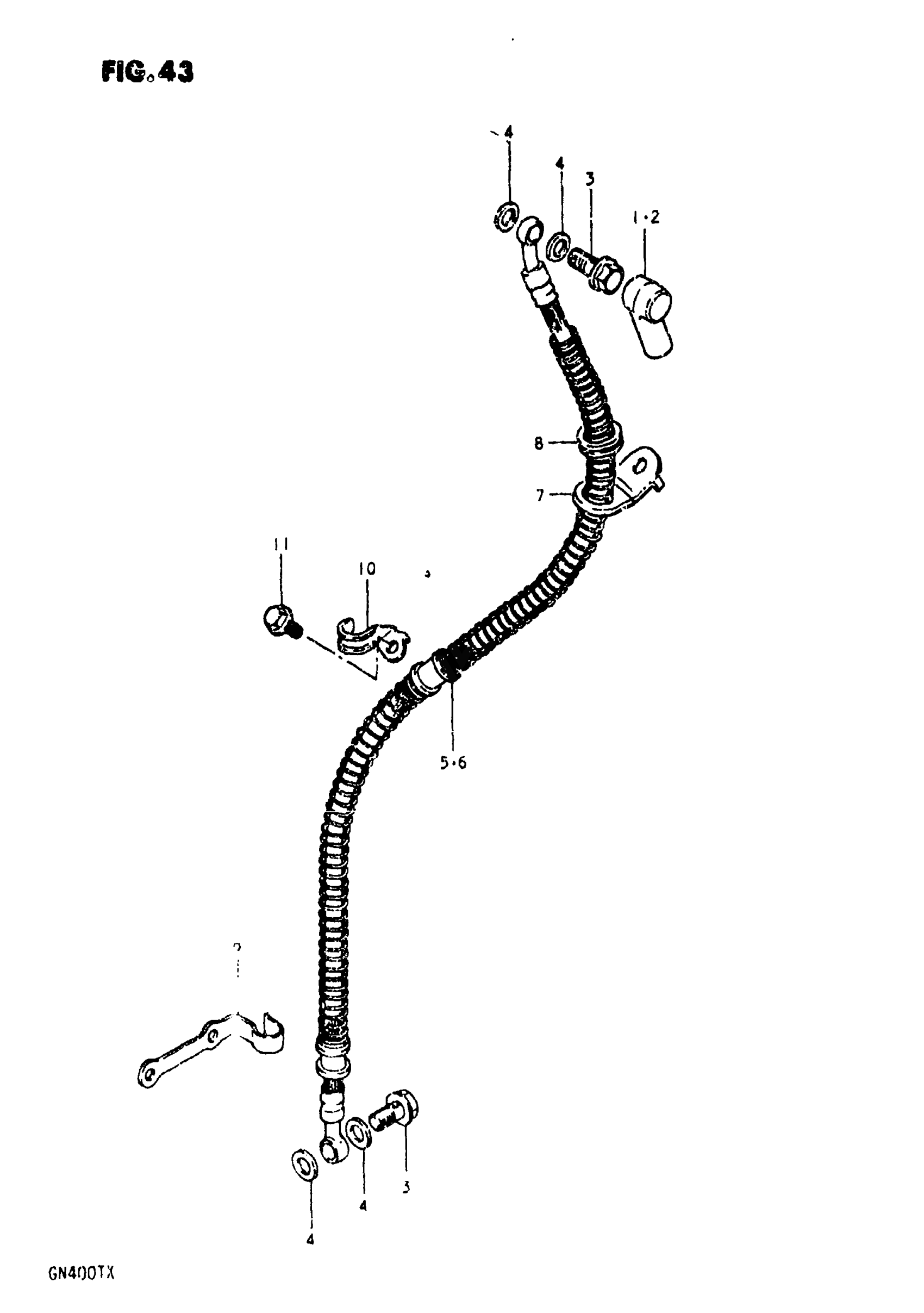

Suzuki GN400T (1981) FRONT BRAKE HOSE Diagram

#

Description
Price

1

BOOT, MASTER CYLINDER | GN400T, GN400TX This part replaces 59711-18400.

59711-49001

$7.07

2

BOOT, MASTER CYLINDER | GN400XT, GN400XX

59711-49001

$7.07

3

UNION This part replaces 09360-10007.

09360-10017

$3.08

4

WASHER (10X15X1.5) This part replaces 09161-10005.

09161-10009

$1.83

5

HOSE, BRAKE NO.1 | GN400T

59480-37300

Unavailable

5

HOSE, BRAKE NO.1 | GN400TX

59480-37320

Unavailable

6

HOSE, BRAKE NO.1 | GN400XT,GN400XX This part replaces 59480-37310.

59480-37320

Unavailable

7

GUIDE This part replaces 59243-45000.

59243-45010

Unavailable

8

GROMMET This part replaces 09308-14007.

09308-14009

Unavailable

9

GUIDE, HOSE NO.2

59268-49001

Unavailable

10

GUIDE

59246-11400

Unavailable

11

BOLT This part replaces 01514-06105.

01550-06107

$3.05
