1988 Suzuki GN250 Chain Case - Shock Absorber Diagram

← All diagrams

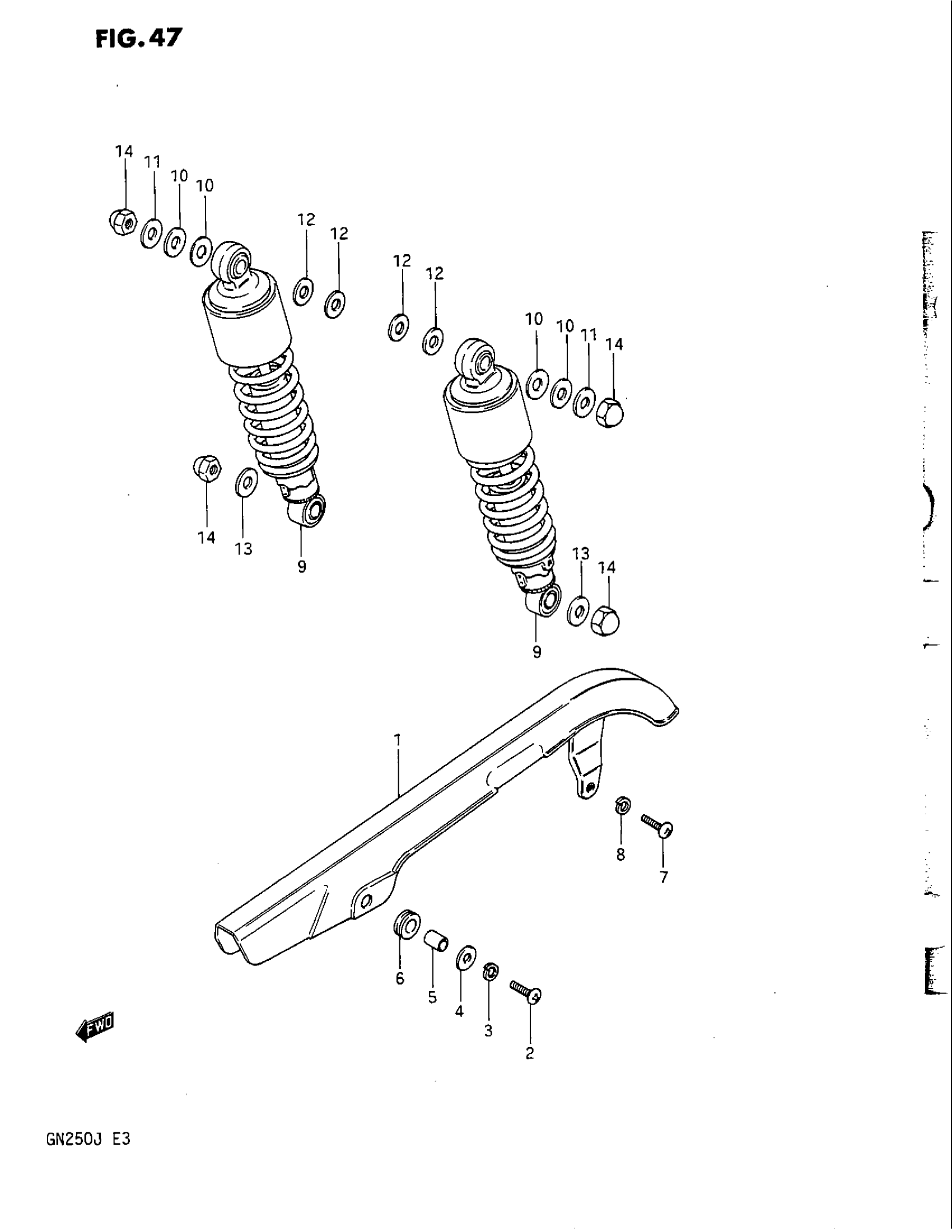

Find the part on the Chain Case - Shock Absorber diagram for your 1988 Suzuki GN250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Suzuki GN250 Chain Case - Shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CHAIN CASE

61310-38300

1
Out of stock

2

SCREW, FRONT

02112-06167

1
Out of stock

3

1

$2.28

In stock

4

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

1
Out of stock

5

SPACER (6.5X9X7) This part replaces 09180-07005.

09180-06259

1
Out of stock

6

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

1
Out of stock

7

SCREW, REAR

02112-06167

1
Out of stock

8

1

$2.28

In stock

9

SHOCK ABSORBER, REAR

62100-38310

2
Out of stock

10

WASHER, LOWER (10.5X24X2.3) This part replaces 09160-10001.

09160-10093

4
Out of stock

11

WASHER This part replaces 09160-10033.

09160-10128-XC0

2
Out of stock

12

WASHER This part replaces 08322-11128.

08322-01127

4
Out of stock

13

WASHER, LOWER (10.5X24X2.3) This part replaces 09160-10001.

09160-10093

2
Out of stock

14

NUT This part replaces 08313-11108.

08313-10107

4
Out of stock
