1988 Suzuki GN250 Gear Shifting Diagram

← All diagrams

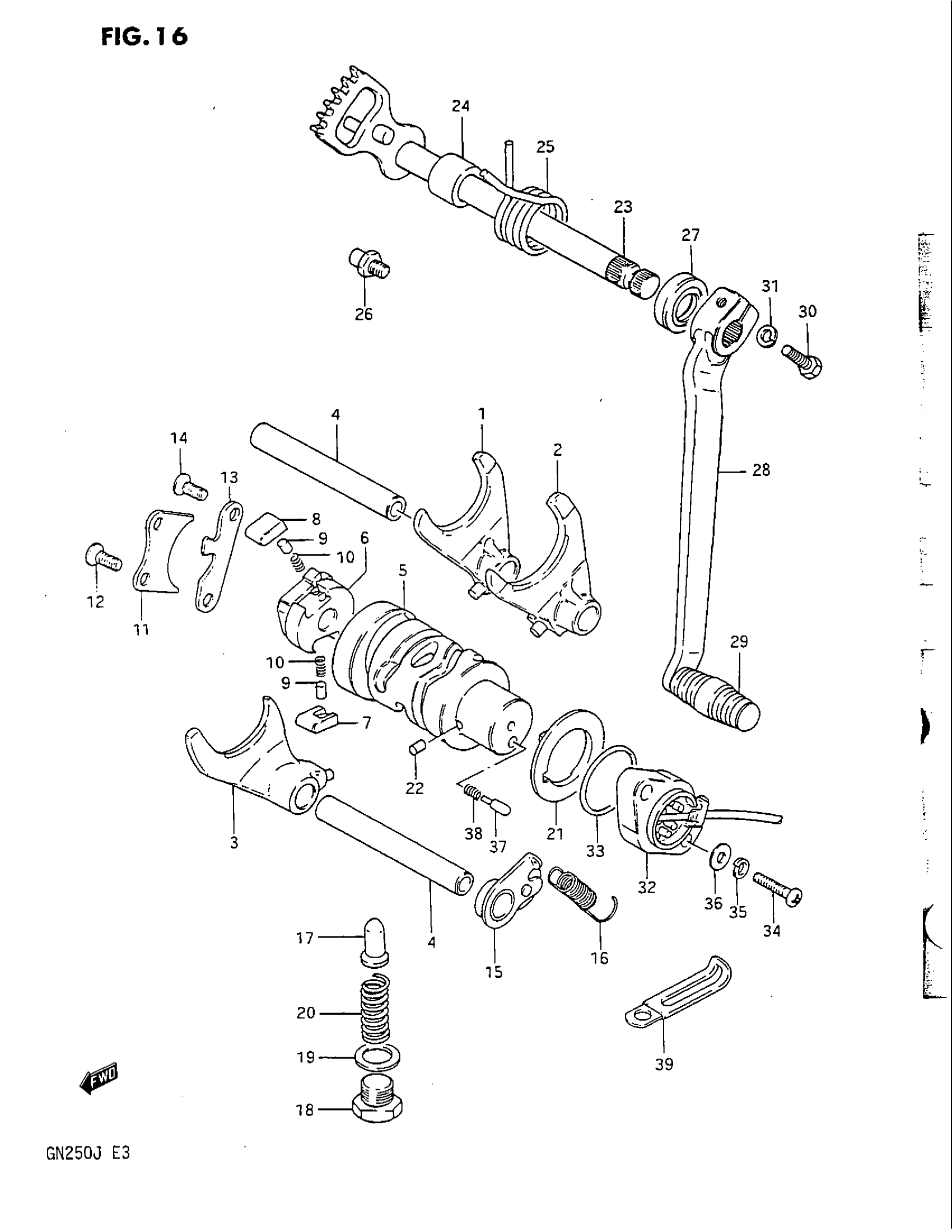

Find the part on the Gear Shifting diagram for your 1988 Suzuki GN250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Suzuki GN250 Gear Shifting Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FORK, GEAR SHIFT NO.1 This part replaces 25211-32401.

25211-32402

1
Out of stock

2

FORK, GEAR SHIFT NO.2 This part replaces 25221-32401.

25221-32403

1
Out of stock

3

FORK, GEAR SHIFT NO.3 This part replaces 25231-32401.

25231-32402

1
Out of stock

4

SHAFT, NO.2 This part replaces 25411-14330.

25411-14331

2
Out of stock

5

CAM, GEAR SHIFTING

25310-38200

1
Out of stock

6

GEAR, GEAR SHIFT CAM DRIVEN This part replaces 25322-31301.

25322-31310

1
Out of stock

7

PAWL, GEAR SHIFT NO.1 | MODEL F This part replaces 25323-34200.

25323-34201

1
Out of stock

7

PAWL, GEAR SHIFT NO.1 | MODEL J

25323-34201

1
Out of stock

8

PAWL, GEAR SHIFT NO.2 | MODEL F This part replaces 25324-34200.

25324-34201

1
Out of stock

8

PAWL, GEAR SHIFT NO.2 | MODEL J

25324-34201

1
Out of stock

9

PIN

09261-05003

2
Out of stock

10

SPRING

09440-04003

2
Out of stock

11

LIFTER, PAWL

25331-38201

1
Out of stock

12

SCREW

02122-06167

2
Out of stock

13

GUIDE, CAM

25341-38200

1
Out of stock

14

SCREW This part replaces 02122-06128.

02122-06127

2
Out of stock

15

STOPPER

25350-34000

1
Out of stock

16

SPRING

09443-08026

1
Out of stock

17

STOPPER, GEAR SHIFT CAM NO.2

25351-30010

1
Out of stock

18

1

$3.63

In stock

19

WASHER

09168-14004

1
Out of stock

20

SPRING

09440-11016

1
Out of stock

21

PLATE, GEAR SHIFT CAM STOPPER

25381-45400

1
Out of stock

22

PIN This part replaces 06211-04063.

04221-04069

1
Out of stock

23

SHAFT, GEAR SHIFTING

25510-38200

1
Out of stock

24

SPACER

09180-12068

1
Out of stock

25

SPRING

09444-26004

1
Out of stock

26

STOPPER, ARM This part replaces 25671-01000.

25671-01011

1
Out of stock

27

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

1
Out of stock

28

LEVER ASSY, GEAR SHIFTING | Includes Item(s) 29

25600-05330

1
Out of stock

29

.RUBBER,GEAR SHIFT PEDAL This part replaces 25652-16500.

25652-16510

1
Out of stock

30

BOLT | MODEL F This part replaces 01107-06208.

01500-06207

1
Out of stock

30

BOLT | MODEL J This part replaces 09100-06091.

01500-06207

1
Out of stock

32

BODY, SWITCH | MODEL F This part replaces 37720-33200.

37720-45100

1
Out of stock

32

TERMINAL BASE ASSY | MODEL J

37720-44700

1
Out of stock

33

O RING (D:2.4,ID:26.2) This part replaces 09280-26003.

09280-26005

1
Out of stock

34

SCREW This part replaces 02112-05206.

02112-0520B

2
Out of stock

35

LOCK WASHER This part replaces 08321-21056.

08321-0105A

2
Out of stock

36

2

$1.97

In stock

37

CONTACT

09209-05011

1
Out of stock

38

SPRING

09440-04010

1
Out of stock

39

CLAMP This part replaces 09404-06402.

09404-06039

1
Out of stock
