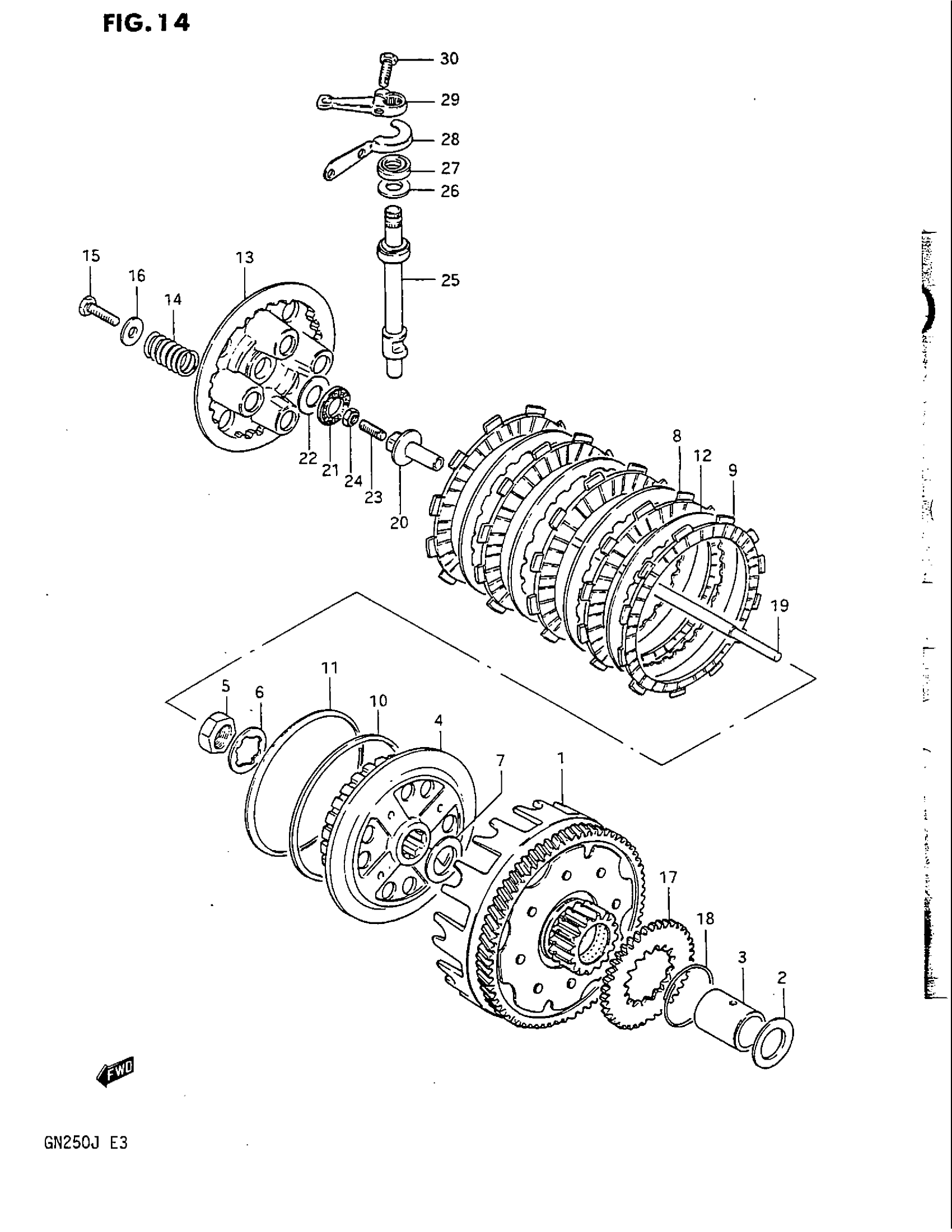

Suzuki GN250 (1988) CLUTCH Diagram

#

Description
Price

1

GEAR ASSY,PRI D | NT:68/16 This part replaces 21200-38200.

21200-38202

$315.23

2

WASHER

08211-22363

$4.35

3

SPACER

09180-22024

Unavailable

4

HUB, CLUTCH SLEEVE This part replaces 21411-38200.

21411-38201

$136.77

5

NUT

09140-22005

$4.20

6

LOCK WASHER

09167-22010

$3.58

7

WASHER

08211-22363

$4.35

8

PLATE, CLUTCH DRIVE NO.1 This part replaces 21441-40402.

21441-37400

$16.59

9

PLATE, CLUTCH DRIVE NO.2 This part replaces 21442-37400.

21442-37401

$17.09

10

SEAT, WAVE WASHER (T:1.4)

21471-37400

$8.95

11

WAVE WASHER

09164-00004

$10.39

12

PLATE, CLUTCH DRIVEN (T:1.6) This part replaces 21451-37400.

21451-14A00

$8.71

13

DISK, CLUTCH PRESSURE This part replaces 21462-38200.

21462-27A00

$65.10

14

SPRING

09440-19007

$2.42

15

BOLT, CANISTER This part replaces 01107-06167.

01500-06167

$1.97

16

WASHER (6.5X20X1.6) This part replaces 09160-06020.

09160-06066

$1.89

17

GEAR, ENGINE OIL PUMP DRIVE This part replaces 16321-38200.

16321-38210

Unavailable

18

CIRCLIP

09380-50001

Unavailable

19

ROD, PUSH

23110-38201

$20.33

20

PIECE, CLUTCH PUSH This part replaces 23121-38200.

23121-38201

$30.18

21

THRUST BEARING

09263-15003

$7.49

22

WASHER, CLUTCH PUSH This part replaces 09160-15015.

09160-15045

$3.52

23

SCREW

09134-06010

$2.81

24

.NUT This part replaces 08310-22067.

08310-00067

$1.83

25

CAM SHAFT

23122-38200

Unavailable

26

WASHER (14.5X22X1) This part replaces 09160-14003.

09160-14054

$2.25

27

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$5.70

28

PLATE, OIL SEAL

23117-38200

$6.22

29

ARM, RELEASE

23271-45400

Unavailable

30

BOLT This part replaces 01107-06207.

01500-06207

$1.99
