1988 Suzuki GN250 Fuel Tank Diagram

← All diagrams

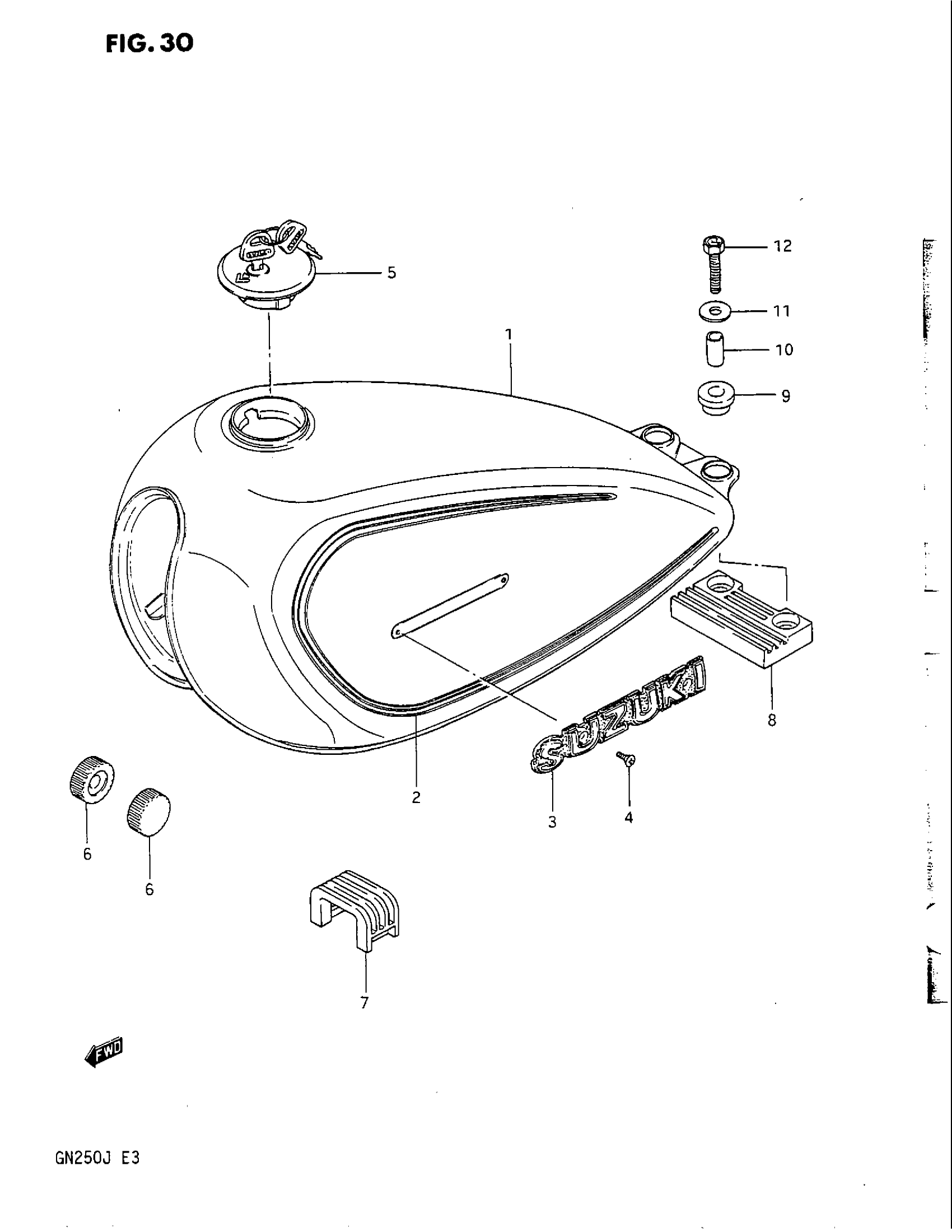

Find the part on the Fuel Tank diagram for your 1988 Suzuki GN250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Suzuki GN250 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | MODEL F This part replaces 44100-38310-13Z.

44100-38371-13Z

1
Out of stock

1

NO DESCRIPTION AVAILABLE | MODEL J; Includes Item(s) 2 - 2 This part replaces 44100-38310-19A.

44100-38371-19A

1
Out of stock

2

TAPE SET, FUEL TANK | MODEL F

68110-38310-62F

1
Out of stock

2

TAPE SET, FUEL TANK | MODEL J

68110-38310-9WE

1
Out of stock

3

EMBLEM | MODEL F

68111-37300

2
Out of stock

3

EMBLEM | MODEL J

68111-15500

2
Out of stock

4

SCREW This part replaces 02132-03065.

02122-0306B

4
Out of stock

5

1

$105.35

In stock

6

CUSHION, FRONT

09329-10016

2
Out of stock

7

CUSHION, UPPER FRONT

44541-38200

1
Out of stock

8

CUSHION, UPPER REAR

44542-38300

1
Out of stock

9

CUSHION REAR, NO.2

09320-10022

2

$2.92

In stock

10

SPACER

09180-06067

2

$2.82

In stock

11

2

$1.73

In stock

12

2

$1.75

In stock
