1983 Suzuki GN250 Crankshaft Diagram

← All diagrams

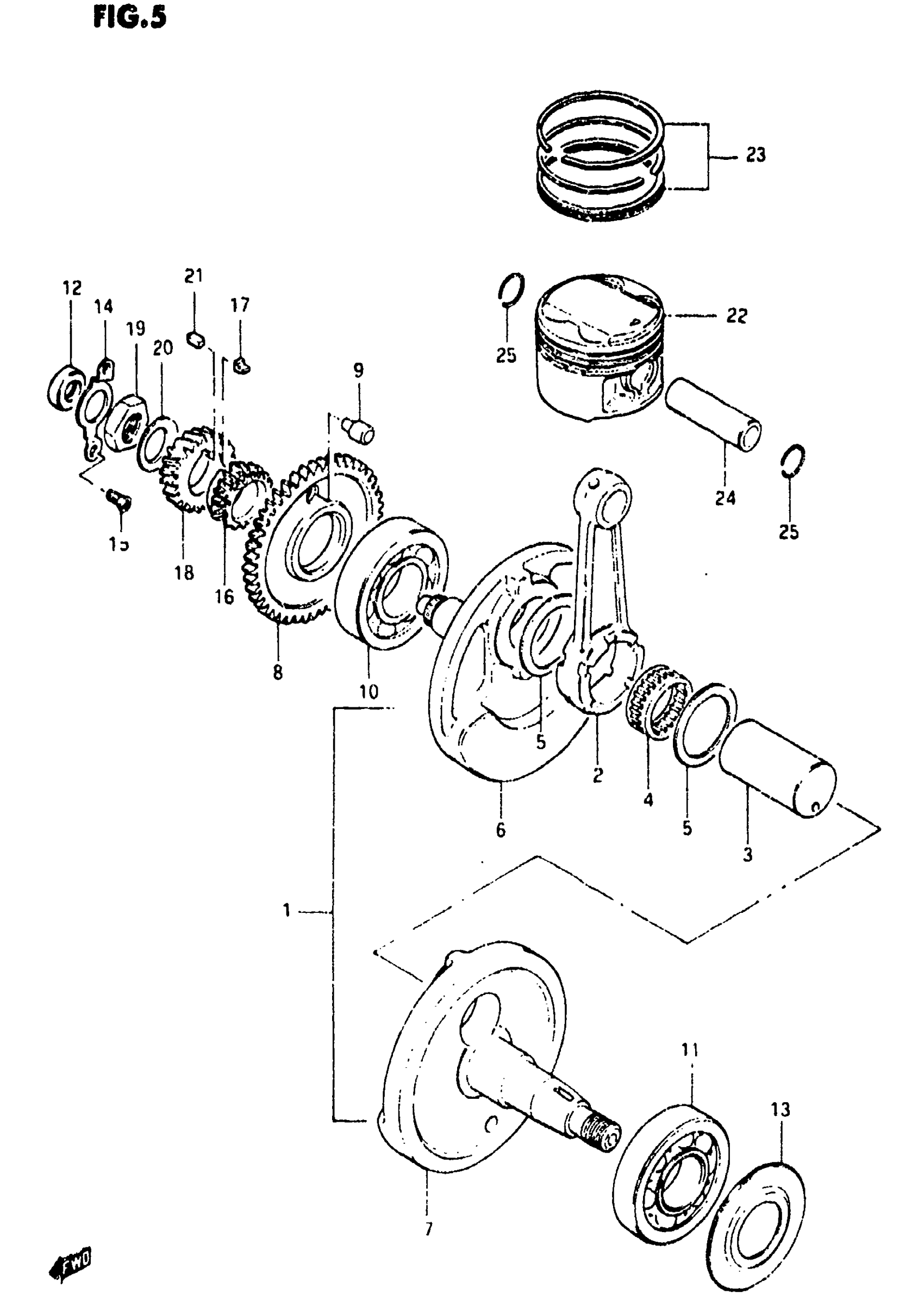

Find the part on the Crankshaft diagram for your 1983 Suzuki GN250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Suzuki GN250 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSY | Includes Item(s) 2 - 9 This part replaces 12200-38300.

12200-38320

1
Out of stock

2

ROD, CONNECTING This part replaces 12161-38200.

12161-38201

1
Out of stock

3

PIN, CRANK This part replaces 12211-38200.

12211-38211

1
Out of stock

4

1

$70.22

In stock

5

WASHER

09160-31002

2

$8.50

In stock

6

CRANKSHAFT, RH

12221-38200

1
Out of stock

7

CRANKSHAFT, LH

12261-38300

1
Out of stock

8

GEAR, CRANK BALANCER DRIVE This part replaces 12661-38201.

12661-38202

1
Out of stock

9

PIN

09209-12006

1
Out of stock

11

BEARING (35X80X21) This part replaces 09262-35011.

09262-35028

1
Out of stock

12

OIL SEAL, RH

09282-14001

1
Out of stock

13

WASHER

12521-38300

1
Out of stock

14

PLATE, RH

12548-38200

1
Out of stock

15

2

$1.48

In stock

16

SPROCKET, DRIVE (NT:21)

12731-38200

1
Out of stock

17

KEY

12749-32400

1
Out of stock

18

GEAR, PRIMARY DRIVE (NT:21)

21111-38200

1
Out of stock

19

1

$4.21

In stock

20

LOCK WASHER

09164-20003

1

$4.18

In stock

21

KEY, GEAR

09421-07002

1
Out of stock

22

1

$103.20

In stock

22

PISTON SET (OS:1.0) | OPT This part replaces 12111-38201-100.

12100-38200-100

1
Out of stock

23

1

$45.44

In stock

23

1

$63.46

In stock

23

RING SET, PISTON (OS:1.0) | OPT This part replaces 12140-49220-100.

12140-49221-100

1
Out of stock

24

1

$19.60

In stock

25

CIRCLIP

09381-18002

2
Out of stock
