1983 Suzuki GN250 Crank Balancer Diagram

← All diagrams

Find the part on the Crank Balancer diagram for your 1983 Suzuki GN250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

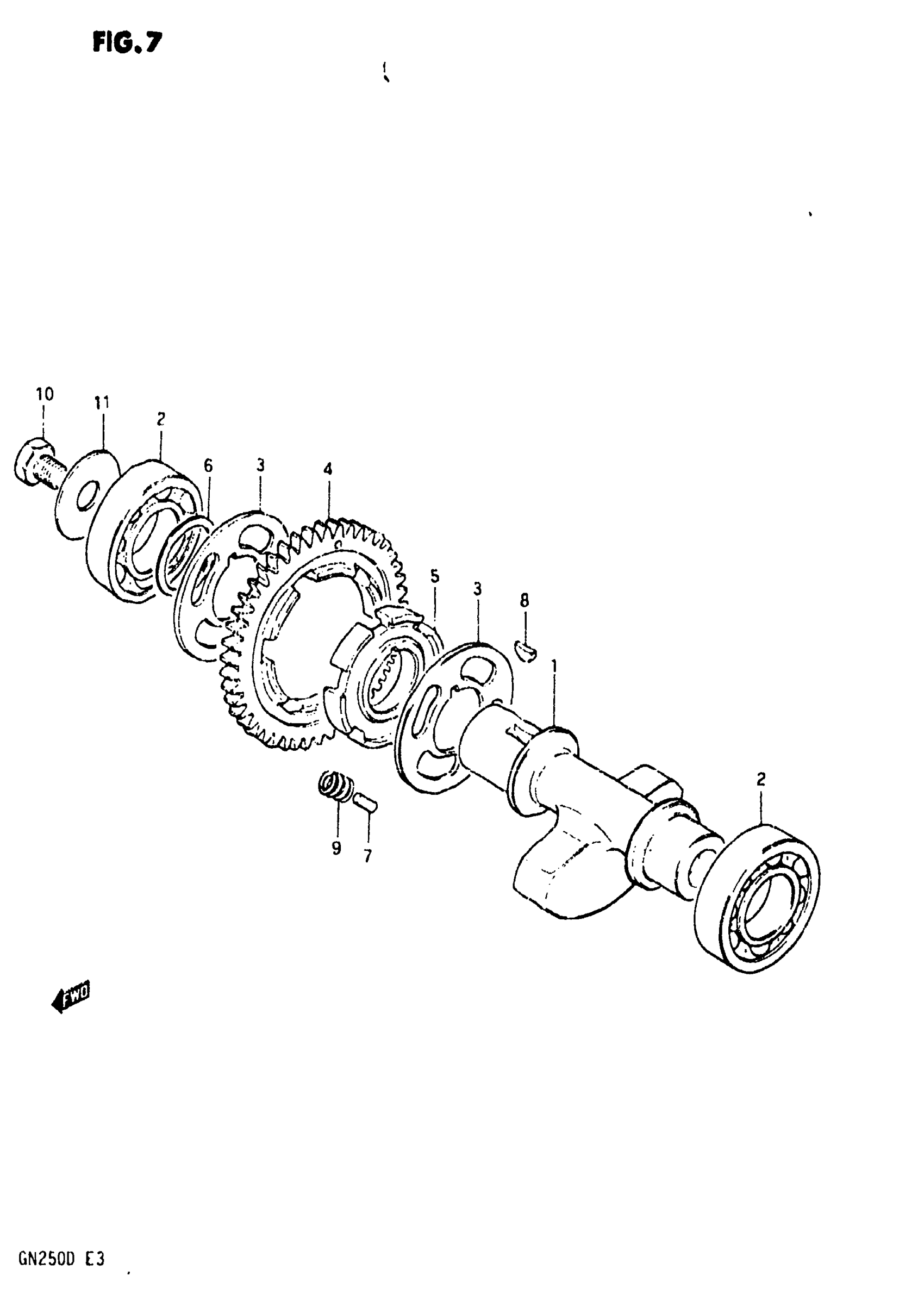

1983 Suzuki GN250 Crank Balancer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT, CRANK BALANCER This part replaces 12651-38200.

12651-38202

1
Out of stock

3

WASHER, DRIVEN GEAR

12663-38200

2
Out of stock

4

GEAR, DRIVEN (NT:46)

12666-38200

1
Out of stock

5

INNER RACE, DRIVEN GEAR

12669-38200

1
Out of stock

6

1

$4.28

In stock

7

PIN This part replaces 09202-04013.

09202-04017

3
Out of stock

8

KEY This part replaces 08341-31049.

09420-04008

1
Out of stock

9

SPRING

09440-09015

6
Out of stock

10

1

$4.22

In stock

11

WASHER This part replaces 09160-12034.

09160-12076

1
Out of stock
