1983 Suzuki GN125Z Wiring Harness Diagram

← All diagrams

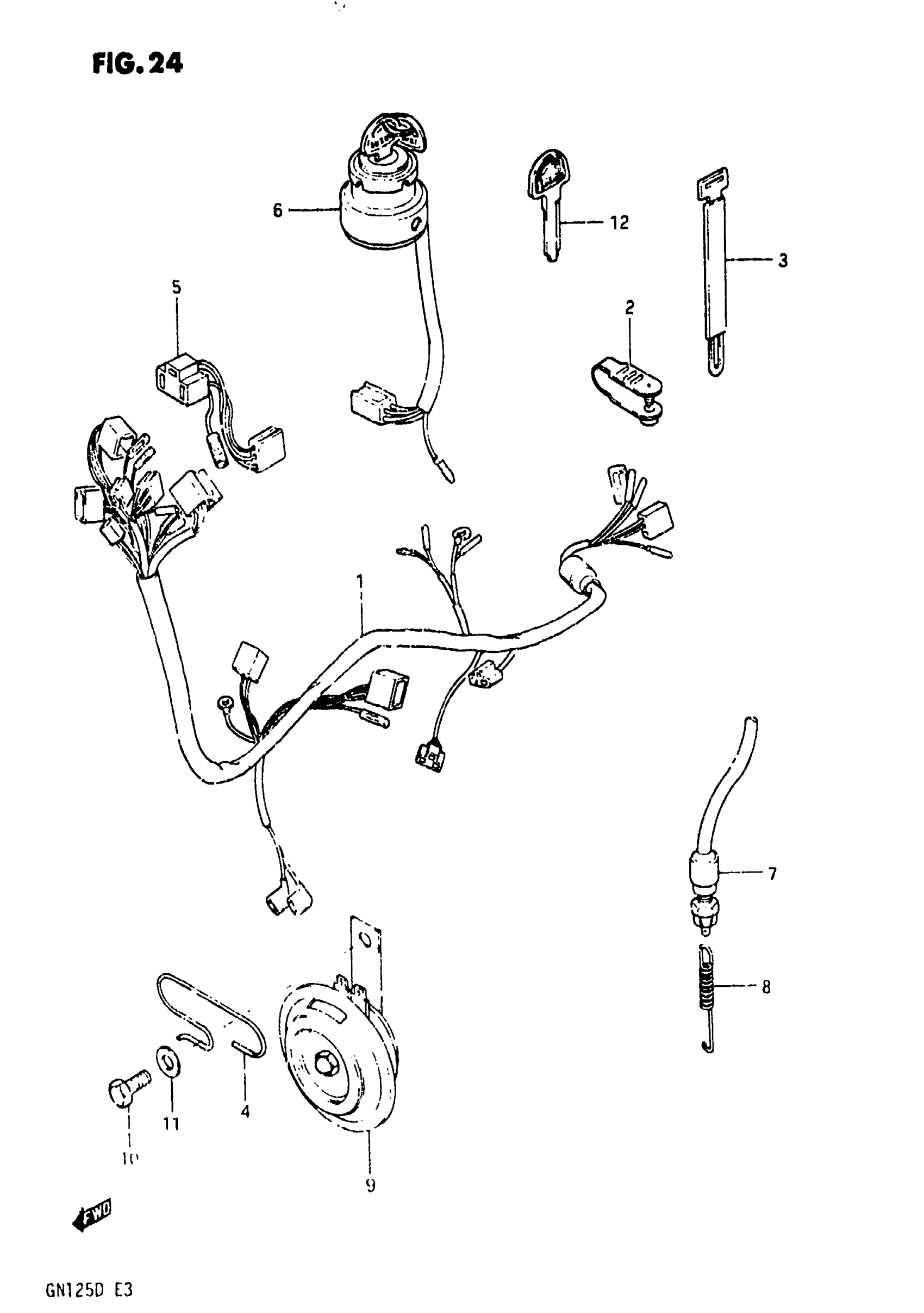

Find the part on the Wiring Harness diagram for your 1983 Suzuki GN125Z, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Suzuki GN125Z Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WIRING HARNESS

36610-05320

1
Out of stock

2

CLAMP

09407-05403

1
Out of stock

3

CLAMP This part replaces 09407-18301.

09407-18302

4
Out of stock

3

CLAMP(L:250) This part replaces 09407-25301.

09407-25302

1
Out of stock

4

NO DESCRIPTION AVAILABLE This part replaces 36619-37300.

36619-05300

1
Out of stock

5

LEAD WIRE, HOAD LAMP

36853-30500

1
Out of stock

6

SWITCH ASSY, IGNITION This part replaces 37110-33020.

37110-33021

1
Out of stock

7

SWITCH, REAR BRAKE LAMP This part replaces 37740-04571.

37740-48071

1
Out of stock

8

SPRING

09443-09003

1
Out of stock

9

HORN This part replaces 38500-38360.

38500-38361

1
Out of stock

10

1

$2.68

In stock

11

WASHER This part replaces 08322-11088.

08322-01087

1
Out of stock

12

KEY, BLANK | OPT This part replaces 37145-19710.

37146-49300

1
Out of stock
