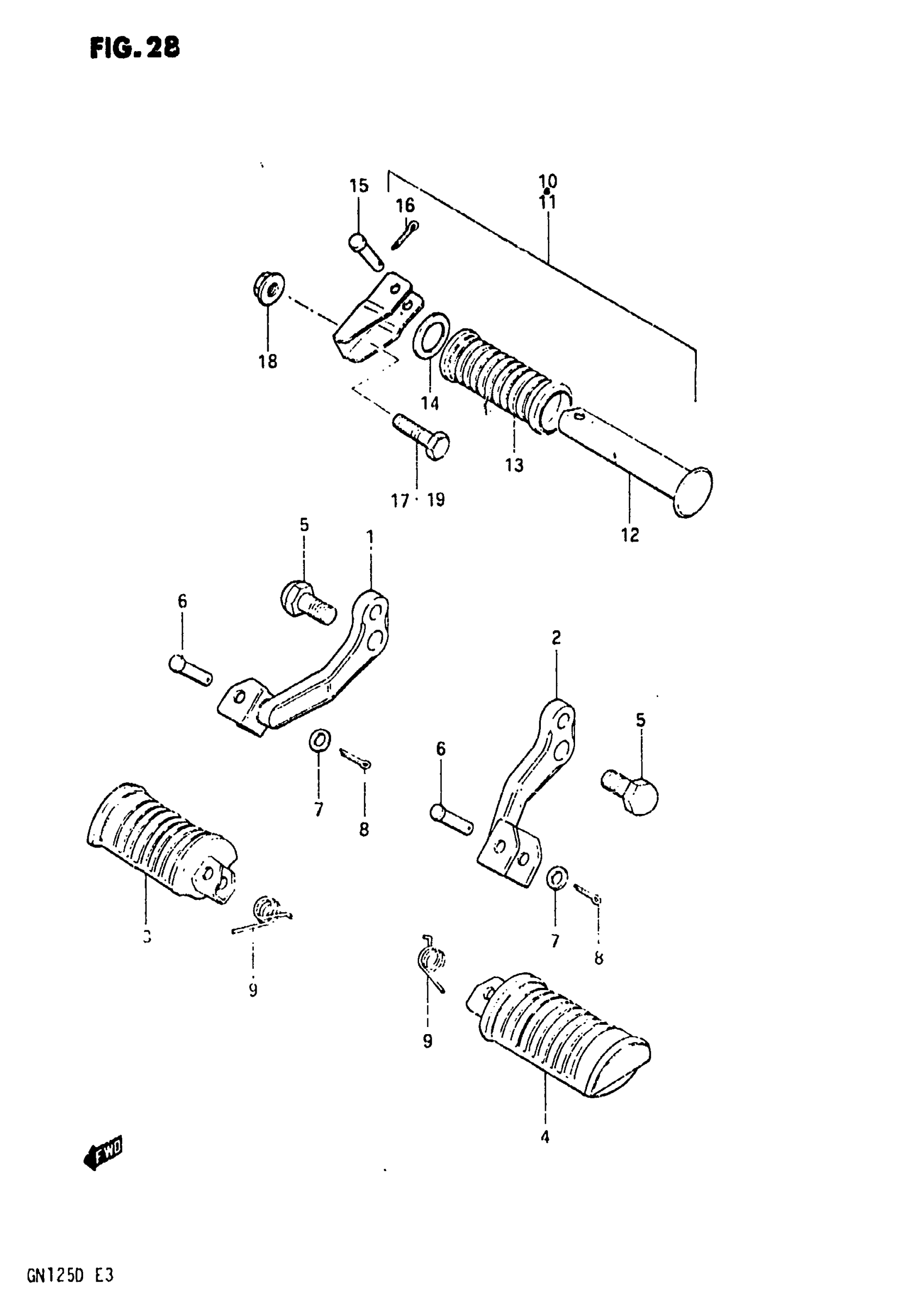

Suzuki GN125Z (1983) FOOTREST Diagram

#

Description
Price

1

BAR, FOOTREST RH

43510-05330

Unavailable

2

BAR, FOOTREST LH

43520-05330

Unavailable

3

RUBBER,PILLION This part replaces 43550-37301.

43550-37310

$23.98

4

FOOTREST LH This part replaces 43560-37301.

43560-37310

$30.19

5

BOLT This part replaces 01527-12257.

01550-12257

Unavailable

6

PIN

09200-08002

$1.97

7

WASHER This part replaces 08322-11088.

08322-01087

$1.86

8

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.22

9

SPRING

09448-14012

$2.80

10

FOOTREST ASSY, PILLION RH | MODEL Z

43600-05301

$35.78

10

FOOTREST ASSY, PILLION RH | MODEL D

43600-05310

Unavailable

11

FOOTREST ASSY, PILLION LH | MODEL Z

43700-05301

Unavailable

11

FOOTREST ASSY, PILLION LH | MODEL D; Includes Item(s) 12 - 16

43700-05310

Unavailable

12

BAR, PILLION FOOTREST | MODEL Z

43610-03001

$6.14

12

BAR, PILLION FOOTREST | MODEL D

43610-38300

Unavailable

13

RUBBER, PILLION FOOTREST This part replaces 43612-33200.

43612-33210

$6.60

14

WASHER This part replaces 09160-19006.

09160-19024

$2.76

15

PIN

09200-06010

$1.87

16

COTTER PIN | MODEL Z This part replaces 04111-20208.

04111-2020A

$1.22

16

.COTTER PIN | MODEL D This part replaces 04111-20158.

04111-2015A

$1.22

17

BOLT This part replaces 01517-10458.

01550-1045B

$5.17

18

NUT, WHEEL SET This part replaces 08316-16108.

08316-10107

$2.38

19

BOLT (10X20) This part replaces 01517-10258.

01550-1025A

$2.80
