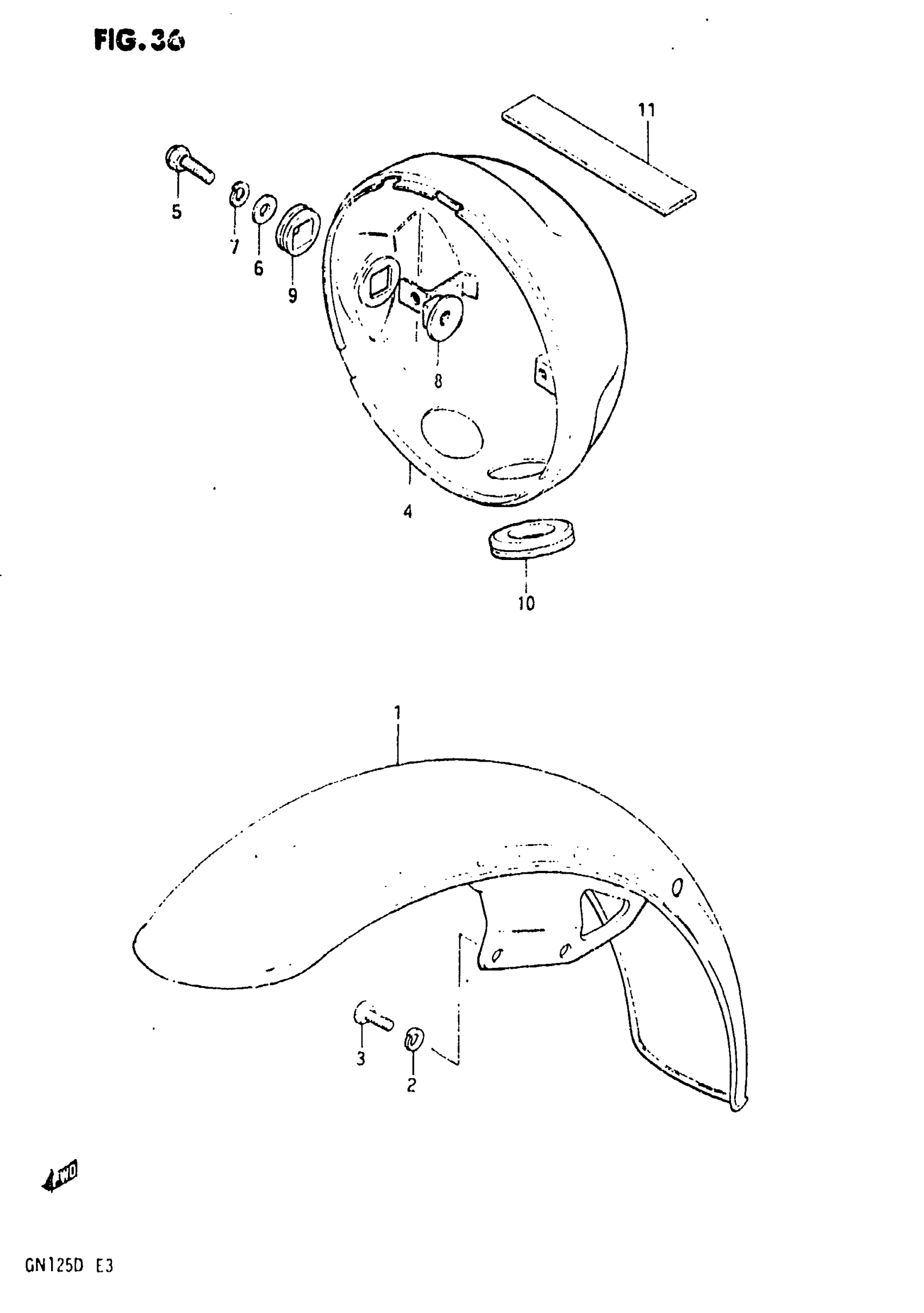

Suzuki GN125Z (1983) FRONT FENDER - HEADLAMP HOUSING Diagram

#

Description

Price

1

FENDER, FRONT

53110-05311

Unavailable

2

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$1.83

3

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

4

HOUSING, HEADLAMP This part replaces 51810-44200.

51810-44201

Unavailable

5

BOLT

01204-08207

$2.50

6

WASHER This part replaces 08322-11088.

08322-01087

$1.86

7

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$1.83

8

SPACER,HEADLAMP This part replaces 51821-36200.

51821-36210

$6.85

9

CUSHION,HEADLAM This part replaces 51827-27302.

51827-27303

$3.45

10

GROMMET

51845-31031

$4.26

11

CUSHION

51827-05300

Unavailable
