1996 Suzuki GN125ET Front Damper Diagram

← All diagrams

Find the part on the Front Damper diagram for your 1996 Suzuki GN125ET, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

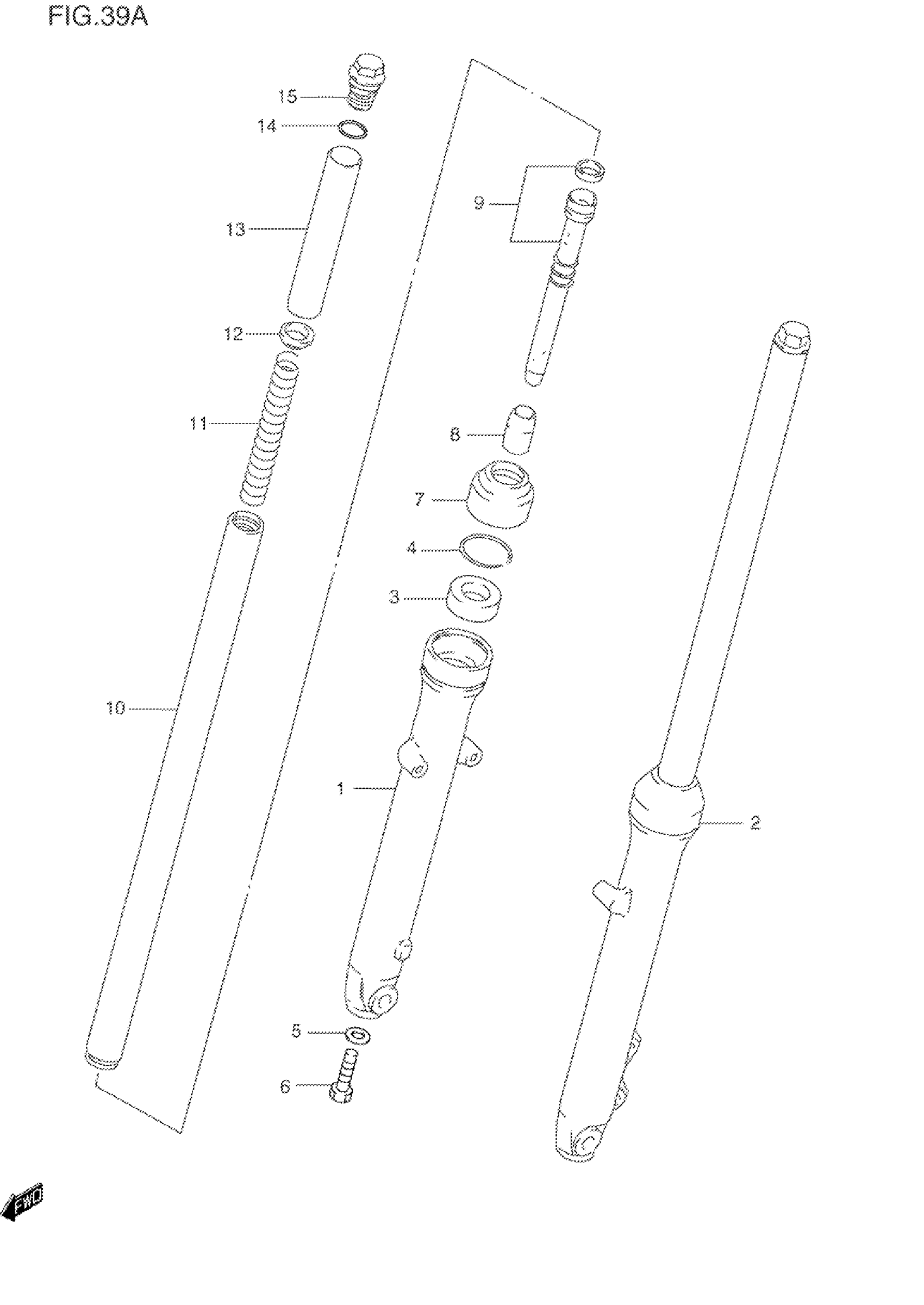

1996 Suzuki GN125ET Front Damper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

DAMPER ASSY, FRONT RH

51103-05301

1
Out of stock

DAMPER ASSY, FRONT LH | Includes Item(s) 1 - 15

51104-05301

1
Out of stock

1

TUBE, OUTER RH

51130-05300

1
Out of stock

2

TUBE, OUTER LH

51140-05300

1
Out of stock

3

OIL SEAL

51153-05300

2
Out of stock

4

RING, STOPPER

51156-41603

2
Out of stock

5

GASKET

51148-41310

2
Out of stock

6

BOLT

51147-16510

2
Out of stock

7

DUST SEAL

51173-41603

2
Out of stock

8

PIECE, OIL LOCK

51195-36220

2
Out of stock

9

CYLINDER

51146-05300

2
Out of stock

10

TUBE, INNER

51110-05300

2
Out of stock

11

SPRING

51171-05300

2
Out of stock

12

GUIDE, SPRING

51172-18630

2
Out of stock

13

SPACER

51176-05300

2
Out of stock

14

O RING This part replaces 51181-29400.

51181-29401

2
Out of stock

15

CAP

51351-41603

2
Out of stock
