1996 Suzuki GN125ET Rear Wheel Diagram

← All diagrams

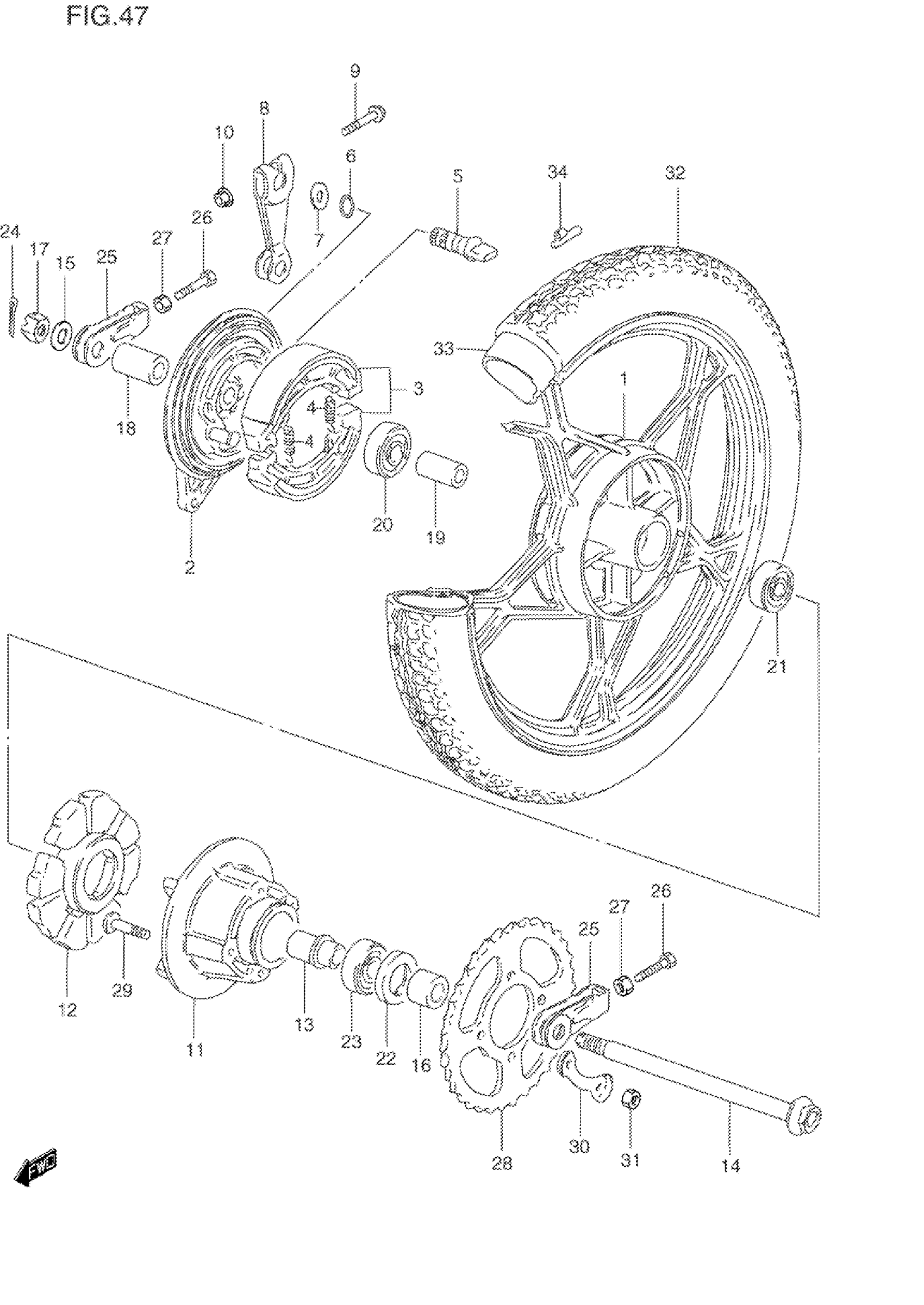

Find the part on the Rear Wheel diagram for your 1996 Suzuki GN125ET, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Suzuki GN125ET Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WHEEL, REAR (2.15X16)(BLACK) | MODEL M/N/P This part replaces 64150-38300-12V.

64150-38300-291

1
Out of stock

1

WHEEL, REAR (2.15X16)(BLACK) | MODEL R/S/T

64150-38300-291

1
Out of stock

2

PANEL, REAR BRAKE ANCHOR

64210-39104

1
Out of stock

3

SHOE SET, BRAKE | MODEL M/N/P->54401-07810 This part replaces 54410-07004.

54401-07810

2
Out of stock

3

SHOE SET, BRAKE | MODEL R/S->54400-07870 This part replaces 54410-07040.

54400-07870

2
Out of stock

3

SHOE SET, BRAKE | MODEL M/N/P

54401-07810

1
Out of stock

3

SHOE SET, BRAKE | MODEL R/S/T

54400-07870

1
Out of stock

4

SPRING This part replaces 09443-07001.

09443-07025

2
Out of stock

5

CAME, BRAKE

54441-29305

1
Out of stock

6

O RING (D:2.5,ID:13.8) This part replaces 09280-14003.

09280-14011

1
Out of stock

7

WASHER This part replaces 09160-14001.

09160-14055

1
Out of stock

8

LEVER, REAR BRAKE CAME

64451-48000

1
Out of stock

9

BOLT | MODEL M/N/P This part replaces 01517-06358.

01550-06357

1
Out of stock

9

BOLT | MODEL R/S/T This part replaces 01550-06353.

01550-0635A

1
Out of stock

10

NUT | MODEL M/N/P This part replaces 09159-06017.

08319-31067

1
Out of stock

10

NUT | MODEL R/S/T This part replaces 08316-10063.

08316-1006B

1
Out of stock

11

DRUM, MOUNTING

64610-05301

1
Out of stock

12

SHOCK ABSORBER, REAR HUB

64651-38300

1
Out of stock

13

RETAINER, DRUM

64733-05301

1
Out of stock

14

AXLE, REAR | MODEL M/N This part replaces 64711-05300.

64711-48001

1
Out of stock

14

AXLE, REAR | MODEL P/R/S/T

64711-48001

1
Out of stock

15

WASHER | MODEL M/N/P This part replaces 08322-11148.

08322-01147

1
Out of stock

15

WASHER | MODEL R/S/T This part replaces 08322-01143.

08322-0114A

1
Out of stock

16

SPACER, LH (15X28X19)

09180-15042

1
Out of stock

17

NUT

09141-14001

1
Out of stock

18

SPACER, RH (15.2X23X33)

09180-15002

1
Out of stock

19

SPACER (15.3X21.7X63)

09180-15011

1
Out of stock

20

BEARING, RH

08144-63027

1

$25.48

In stock

21

BEARING, LH

08143-62027

1
Out of stock

22

SEAL,OIL (27X47X7) This part replaces 09285-28001.

09285-28004

1
Out of stock

23

BEARING

09262-20069

1
Out of stock

24

PIN This part replaces 04111-30308.

04111-3030A

1
Out of stock

25

ADJUSTER, CHAIN

61410-36002

2
Out of stock

26

BOLT (8X50) | ->09104-08034 This part replaces 09104-08006.

09104-08034

2
Out of stock

26

BOLT (8X50)

09104-08034

2
Out of stock

27

2

$1.93

In stock

27

NUT | MODEL R/S/T

08310-00087

2

$1.93

In stock

28

SPROCKET, REAR (NT:42) | ->64511-12B01 This part replaces 64511-39300.

64511-12B02

1
Out of stock

28

SPROCKET, REAR (NT:42) This part replaces 64511-12B01.

64511-12B02

1
Out of stock

29

BOLT

09119-08043

4
Out of stock

30

WASHER

09169-08012

2
Out of stock

31

4

$1.93

In stock

31

NUT | MODEL R/S/T This part replaces 08310-00083.

08310-0008A

4
Out of stock

32

TIRE, REAR 3.50-16 (IRC)

65100-05320

1
Out of stock

33

TUBE ASSY, INNER

65200-26700

1
Out of stock

34

BALANCER, WHEEL (10G) | MODEL M

55411-00A00

1
Out of stock

34

BALANCER, WHEEL NO.2 | MODEL M This part replaces 55412-00A00.

55412-17G00

1
Out of stock

34

BALANCER (30G) | MODEL M This part replaces 55413-00A00.

55413-00A01

1
Out of stock

34

BALANCER | MODEL N/P/R This part replaces 55411-47002.

55411-47001

1
Out of stock

34

BALANCER, WHEEL (30G) | MODEL N/P/R

55412-47002

—
Out of stock

34

BALANCER (10G) | MODEL N/P/R/S This part replaces 55413-47002.

55413-47001

1
Out of stock
