1996 Suzuki GN125ET Rear Brake Diagram

← All diagrams

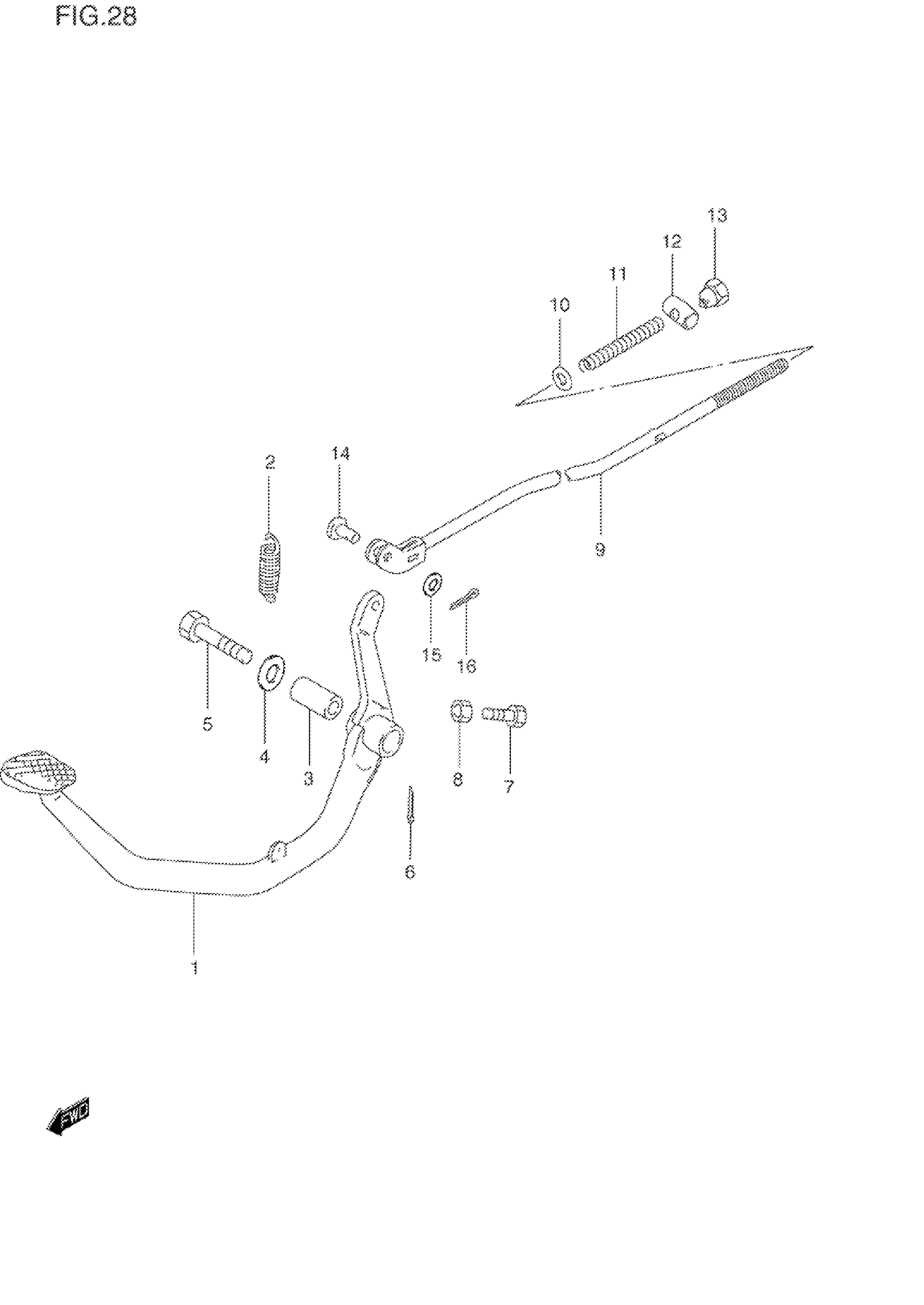

Find the part on the Rear Brake diagram for your 1996 Suzuki GN125ET, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Suzuki GN125ET Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$56.38

In stock

2

SPRING

09443-14015

1

$2.92

In stock

3

SPACER

43231-05302

1
Out of stock

4

WASHER | MODEL M/N/P/R

08322-01107

1
Out of stock

5

BOLT | MODEL M/N

09101-10020

1
Out of stock

5

BOLT | MODEL P/R/S/T

09116-10121

1
Out of stock

6

COTTER PIN This part replaces 04111-20208.

04111-2020A

1
Out of stock

7

BOLT | MODEL M/N

09128-06028

1

$2.17

In stock

7

BOLT | MODEL P/R/S/T

09100-06009

1

$2.07

In stock

8

.NUT | MODEL M/N/P/R

08310-00067

1

$1.82

In stock

8

NUT | MODEL S/T This part replaces 08310-00063.

08310-0006A

1
Out of stock

9

1

$23.37

In stock

10

1

$1.84

In stock

10

.WASHER | MODEL S/T This part replaces 08322-01063.

08322-0106B

1
Out of stock

11

SPRING

09440-09004

1
Out of stock

12

PIN

09209-11002

1
Out of stock

13

.NUT This part replaces 09150-06009.

09150-06010

1
Out of stock

14

PIN

09200-06013

1

$2.38

In stock

15

.WASHER | MODEL S/T This part replaces 08322-01063.

08322-0106B

1
Out of stock

16

COTTER PIN This part replaces 04111-20208.

04111-2020A

1
Out of stock
