1996 Suzuki GN125ET Handle Lever Diagram

← All diagrams

Find the part on the Handle Lever diagram for your 1996 Suzuki GN125ET, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

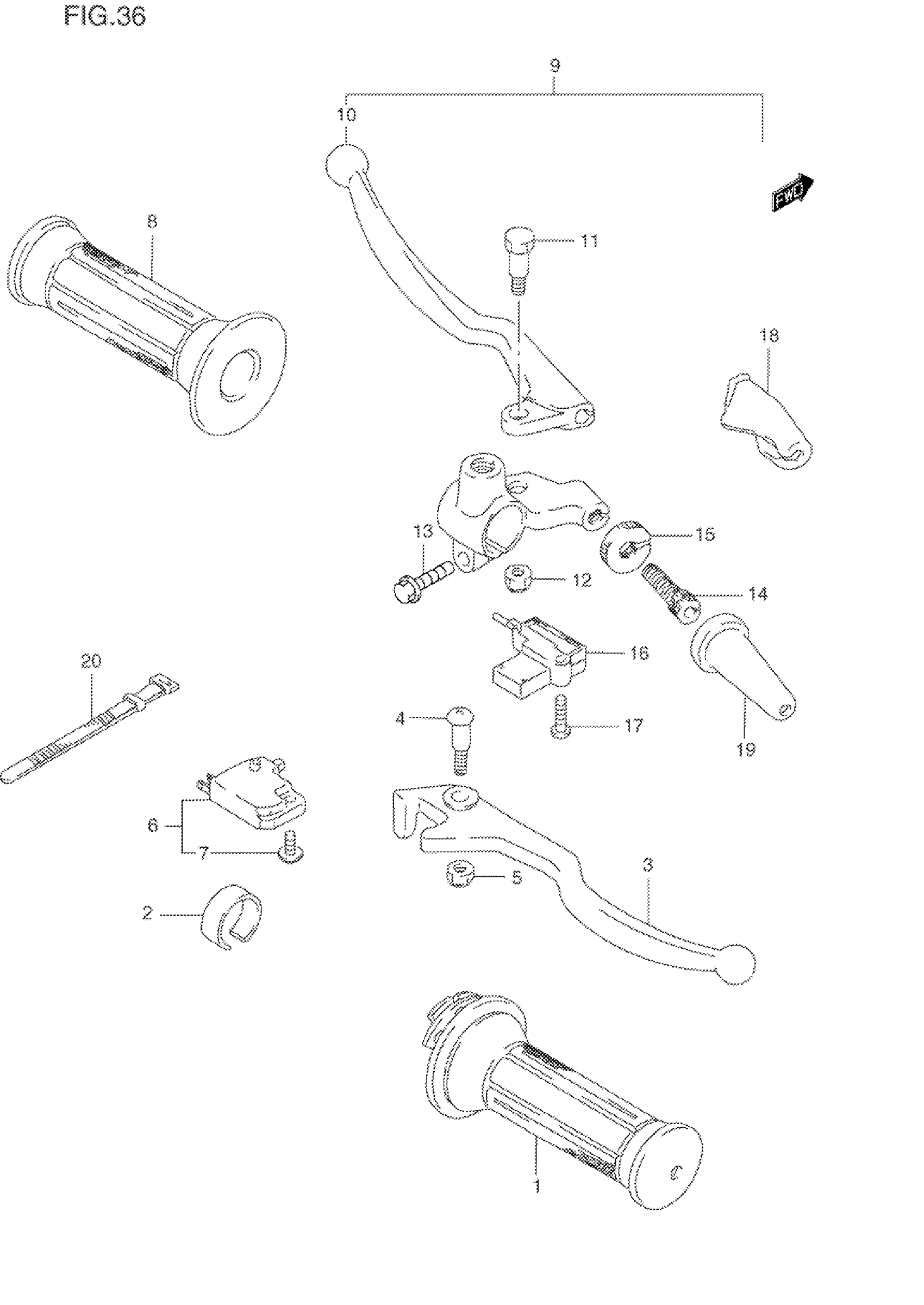

1996 Suzuki GN125ET Handle Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRIP, THROTTLE

57110-34300

1
Out of stock

2

SPACER, HANDLE RH

56115-05300

1
Out of stock

3

LEVER, BRAKE (BLACK)

57421-13001

1
Out of stock

4

SCREW | MODEL M This part replaces 57431-13010.

09139-06114

1
Out of stock

4

BOLT | MODEL N/P/R/S/T This part replaces 57431-13030.

09111-06075

1
Out of stock

5

.NUT This part replaces 08319-21065.

08319-2106B

1
Out of stock

6

SWITCH ASSY,FR BRAKE | Includes Item(s) 7 This part replaces 57460-17C00.

57460-14J02

1
Out of stock

7

SCREW

57465-17C00

1
Out of stock

8

GRIP, LH

57211-34300

1
Out of stock

9

LEVER ASSY,CLUT | Includes Item(s) 10 - 17 This part replaces 57500-05390.

57500-05392

1
Out of stock

10

LEVER, CLUTCH

57620-05390

1
Out of stock

11

..BOLT,LEVER PIVOT This part replaces 57431-45C00.

57431-21D11

1
Out of stock

12

.NUT This part replaces 08319-21065.

08319-2106B

1
Out of stock

13

..BOLT This part replaces 01547-06205.

01547-0620B

1
Out of stock

14

.ADJUSTER, WIRE This part replaces 57441-45C00.

57441-45C01

1
Out of stock

15

.NUT, LOCK This part replaces 57442-45C00.

57442-45C01

1
Out of stock

16

.SWITCH,CLUTCH

57560-05A00

1
Out of stock

17

SCREW

02132-03208

1
Out of stock

18

COVER, CLUTCH LEVER

57661-31000

1
Out of stock

19

BOOT, CLUTCH CABLE This part replaces 58273-31000.

58273-31001

1
Out of stock

20

CLAMP (L:120)

09407-12402

4
Out of stock
