1993 Suzuki GN125E AIR Cleaner Diagram

← All diagrams

Find the part on the AIR Cleaner diagram for your 1993 Suzuki GN125E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

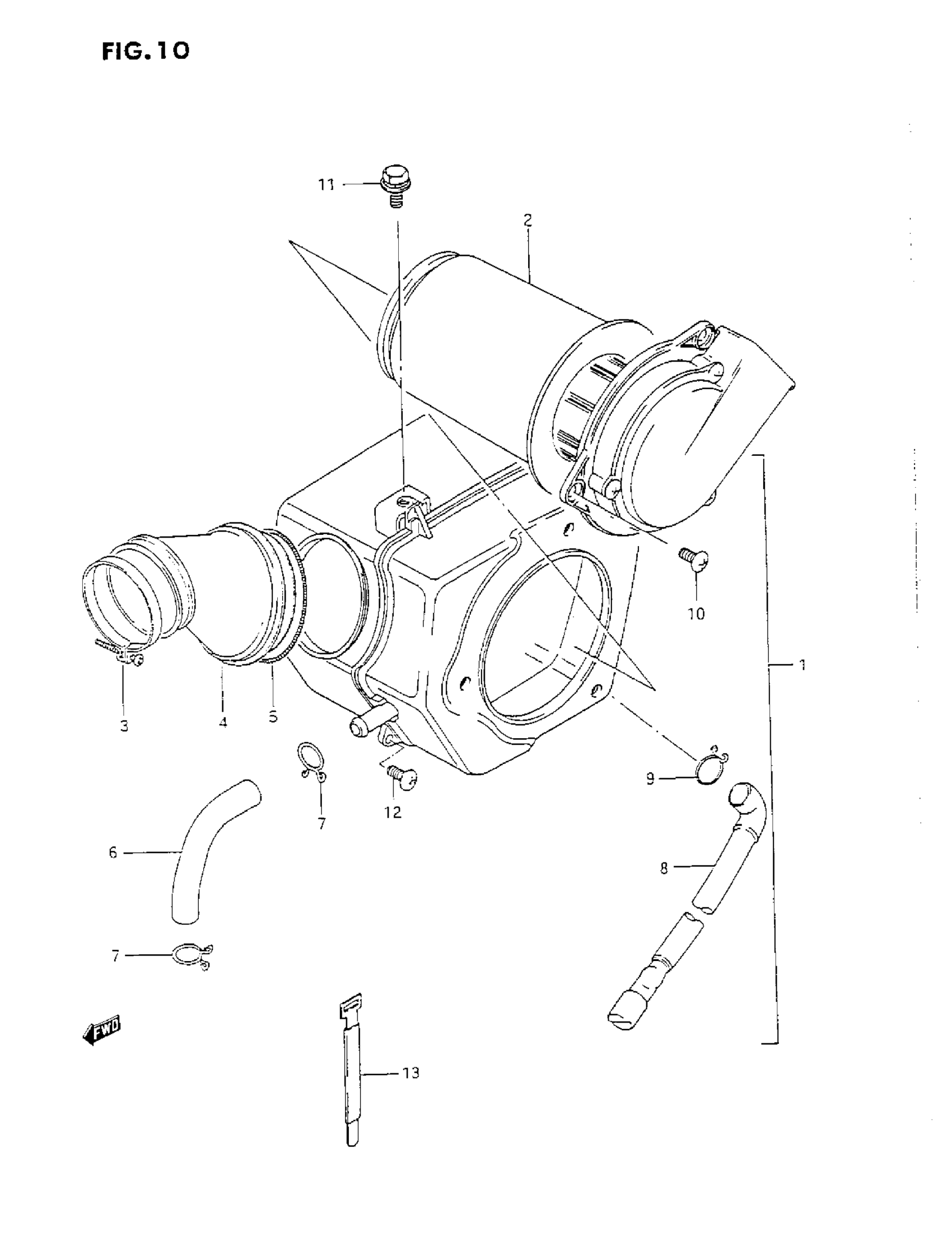

1993 Suzuki GN125E AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLEANER ASS'Y

13700-05302

1
Out of stock

2

FILTER

13780-38301

1
Out of stock

3

CLAMP This part replaces 09402-56208.

09402-56901

1
Out of stock

4

TUBE, OUTLET

13881-05300

1
Out of stock

5

CLAMP

13826-38300

1
Out of stock

6

TUBE, BREATHER

13853-05300

1
Out of stock

7

CLIP This part replaces 13828-00020.

09401-14401

2
Out of stock

8

TUBE,DRAIN | MODEL M/N/P This part replaces 13870-21291.

13870-21309

1
Out of stock

8

TUBE,DRAIN | MODEL R This part replaces 13870-21308.

13870-21309

1
Out of stock

9

CLIP This part replaces 13824-00A00.

09401-13409

1
Out of stock

10

SCREW This part replaces 02142-05128.

02142-05127

3
Out of stock

11

BOLT (6X16)

09118-06017

2
Out of stock

12

SCREW

02142-06167

1
Out of stock

13

CLAMP This part replaces 09407-11301.

09407-18302

1
Out of stock
