1993 Suzuki GN125E Fuel Tank Diagram

← All diagrams

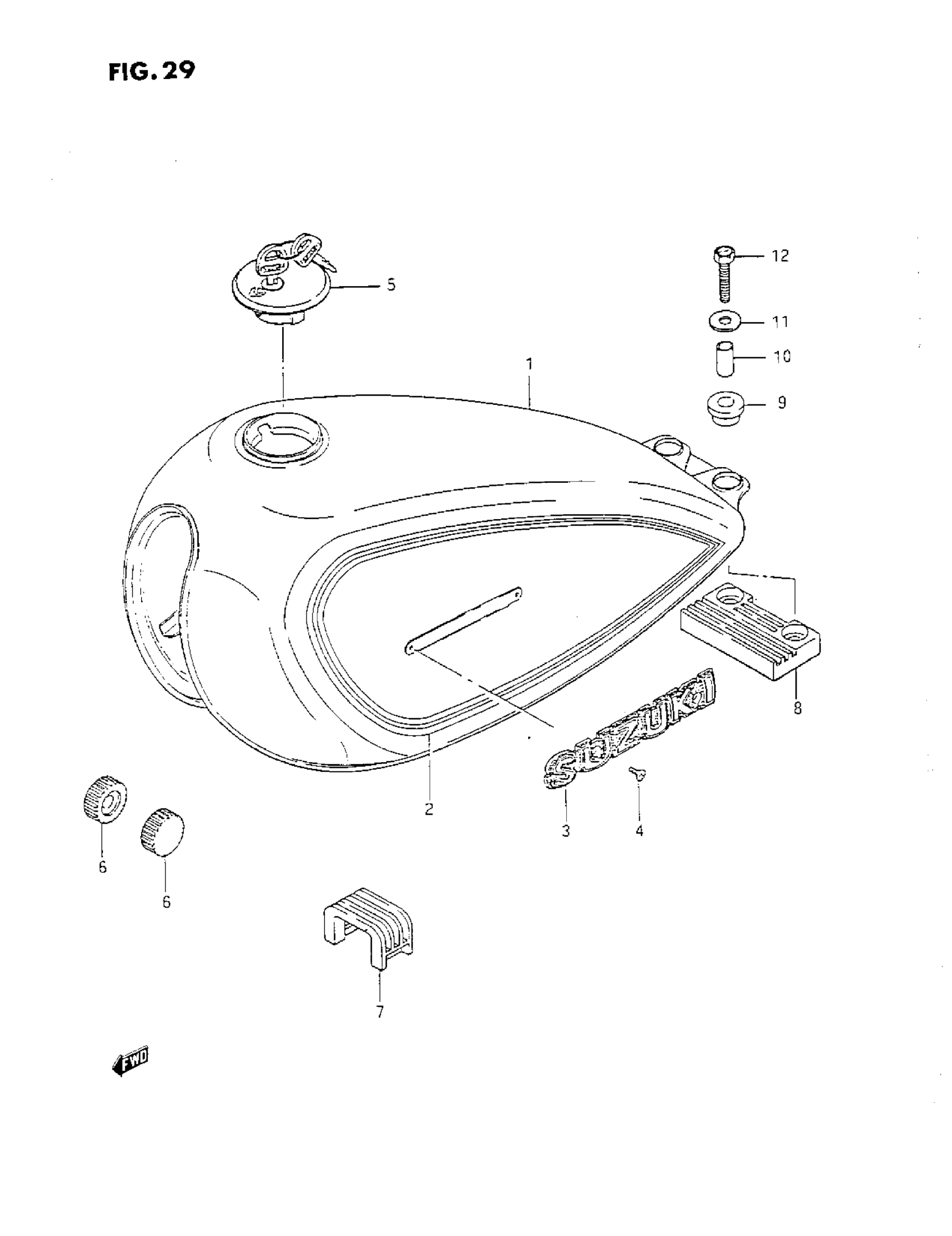

Find the part on the Fuel Tank diagram for your 1993 Suzuki GN125E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Suzuki GN125E Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | MODEL M This part replaces 44100-38320-12F.

44110-38302-YD8

1
Out of stock

1

NO DESCRIPTION AVAILABLE | MODEL M This part replaces 44100-38320-13Z.

44100-38321-13Z

1
Out of stock

1

TANK ASSY, FUEL | MODEL M This part replaces 44100-38320-24D.

44100-38321-24D

1
Out of stock

1

NO DESCRIPTION AVAILABLE | MODEL N/P This part replaces 44100-38320-19A.

44100-38390-19A

1
Out of stock

1

NO DESCRIPTION AVAILABLE | MODEL R This part replaces 44100-38321-19A.

44100-38390-19A

1
Out of stock

1

TANK ASSY, FUEL (RED) | MODEL N/P, CALIFORNIA ONLY This part replaces 44100-38360-19A.

44100-38361-19A

1
Out of stock

1

TANK ASS'Y, FUEL (RED) | MODEL R, CALIFORNIA ONLY

44100-38361-19A

1
Out of stock

2

TAPE SET, FUEL TANK | FOR 12F

68110-38320-67N

1
Out of stock

2

TAPE SET, FUEL TANK | FOR 019, 24D

68110-38320-69K

1
Out of stock

2

TAPE SET, FUEL TANK | FOR 19A

68110-38320-G29

1
Out of stock

3

EMBLEM

68111-37300

2
Out of stock

4

SCREW | MODEL M/N/P This part replaces 02132-03065.

02122-0306B

4
Out of stock

4

SCREW | MODEL R This part replaces 02122-03063.

02122-0306B

4
Out of stock

5

CAP SET,FUEL TA This part replaces 44200-30830.

44200-30832

1
Out of stock

5

CAP, FUEL | CALIFORNIA ONLY

44200-14830

1
Out of stock

6

CUSHION, FRONT

09329-10016

2

$3.00

In stock

7

CUSHION, UPPER FRONT

44541-05300

1
Out of stock

8

CUSHION, UPPER REAR

44542-38300

1
Out of stock

9

CUSHION REAR, NO.2

09320-10022

2
Out of stock

10

SPACER

09180-06067

2
Out of stock

11

WASHER | MODEL M/N/P This part replaces 09160-06012.

09160-06054

2
Out of stock

11

WASHER | MODEL R

09160-06054

2
Out of stock

12

BOLT This part replaces 09100-06033.

64455-07L00

2
Out of stock
