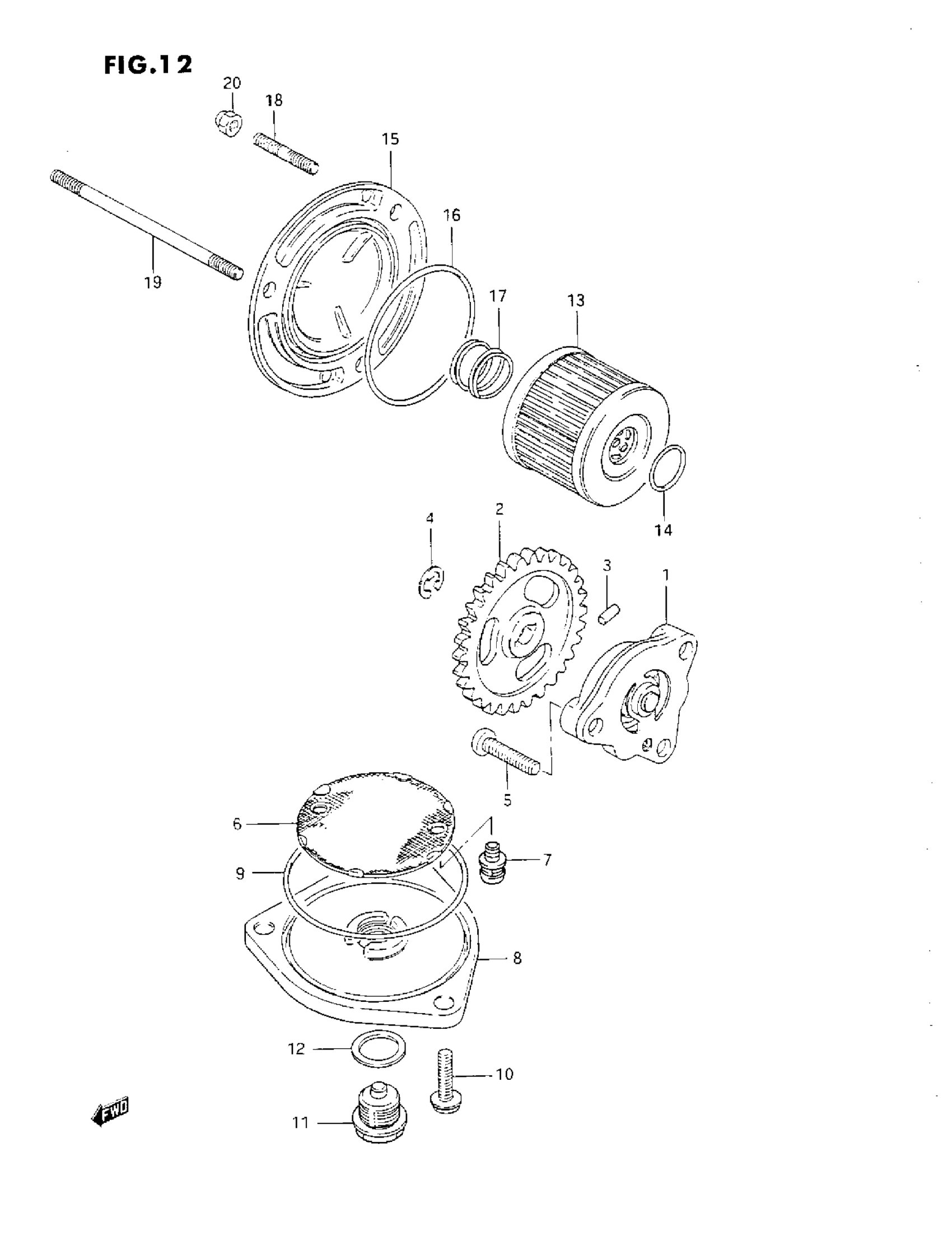

Suzuki GN125E (1993) OIL PUMP Diagram

#

Description
Price

1

PUMP ASSY, ENGINE OIL

16400-05201

Unavailable

2

GEAR, DRIVEN (NT:30)

16331-05200

Unavailable

3

PIN

09261-02008

$1.48

4

CIRCLIP This part replaces 08332-11066.

08332-1106A

$1.43

5

SCREW This part replaces 02112-16256.

02142-0625A

$1.43

6

STRAINER, ENGINE OIL

16520-05202

$5.46

7

SCREW This part replaces 02112-75126.

02112-7512A

$2.43

8

CAP, OIL STR

16523-05200

$13.43

9

.O RING (D:2.4,ID:60.5)

09280-60005

$2.87

10

BOLT

01547-06207

$2.01

11

PLUG (MAGNETO) | MODEL M/N/P This part replaces 09247-14001.

09247-14002

$4.73

11

PLUG, DRAIN | MODEL R

09247-14026

$3.38

12

GASKET

09168-14004

$1.69

13

FILTER, ENGINE OIL

16510-05240

$5.39

14

O RING

09280-13004

$2.19

15

CAP, OIL FILTER | MODEL M/N/P This part replaces 16512-05211.

16512-05212

Unavailable

15

CAP, OIL FILTER | MODEL R

16512-05212

Unavailable

16

O RING

09280-54001

$3.38

17

SPRING This part replaces 48281-85000.

09440-18002

$1.09

18

STUD BOLT This part replaces 01421-06128.

09108-06128

$2.15

19

BOLT,STUD This part replaces 01421-06858.

01421-0685A

$4.62

20

NUT, LICENSE HOLDER | MODEL M/N/P This part replaces 08313-11067.

08313-10067

$1.83

20

NUT | MODEL R This part replaces 08313-10063.

08313-1006A

$1.83
