1993 Suzuki GN125E Fuel Cock Diagram

← All diagrams

Find the part on the Fuel Cock diagram for your 1993 Suzuki GN125E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

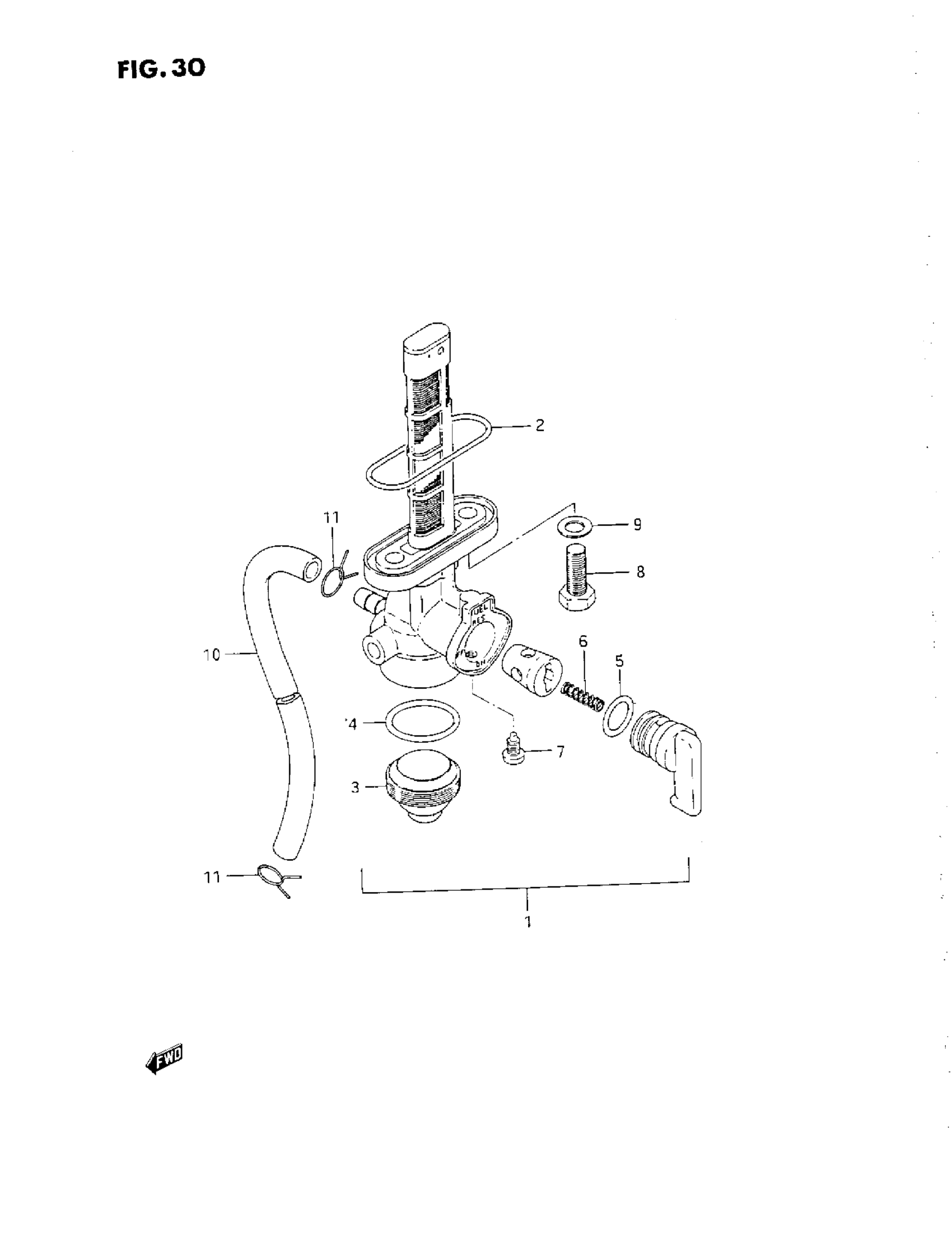

1993 Suzuki GN125E Fuel Cock Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$55.02

In stock

2

1

$5.04

In stock

3

CUP

44347-28071

1

$10.15

In stock

4

1

$2.71

In stock

5

1

$7.41

In stock

6

SPRING

44357-32470

1

$2.57

In stock

7

SCREW

44343-41370

1

$2.50

In stock

8

2

$1.77

In stock

9

GASKET

09168-06026

2

$3.00

In stock

10

1

$9.88

In stock

11

CLIP

09401-08401

2

$1.76

In stock
