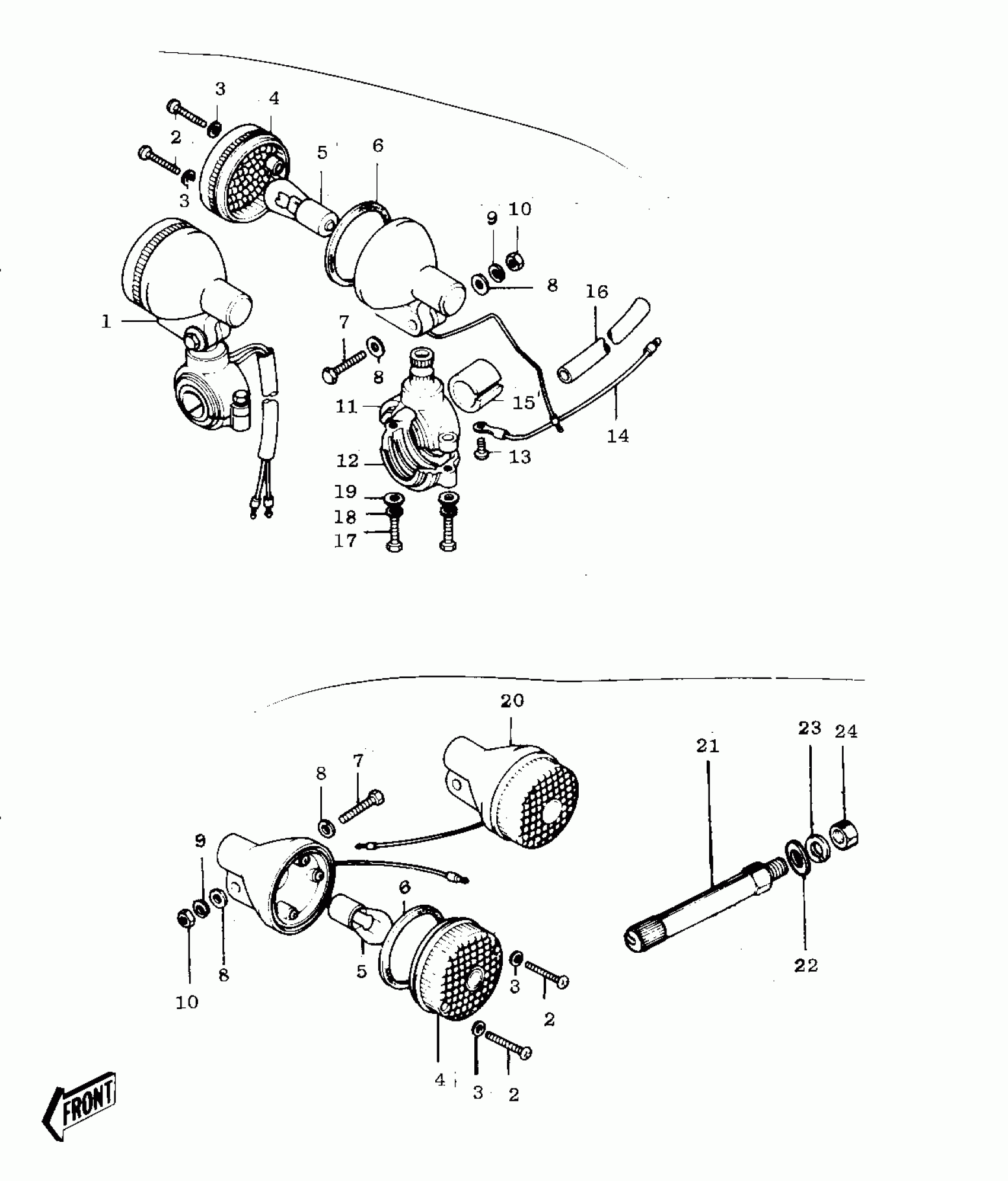

Kawasaki G3SS-D TURN SIGNALS ('74-'75) Diagram

#

Description
Price

1

LAMP ASY-FR TURN SIG

23037-005

Unavailable

2

SCREW-PAN HEAD,4X20

220E0420A

$2.25

3

WASHER,PLAIN,4MM

23058-002

$1.77

4

LENS-SIGNAL LAMP,"045-6588"

23048-1001

$8.05

5

BULB,6V 21CP

92069-056

$4.86

6

GASKET,SIGNAL LAMP

23050-003

$4.39

7

BOLT-UPSET

112G0630

Unavailable

8

WASHER-PLAIN,6MM

411D0600

$1.49

9

WASHER SPRING 6MM

461F0600

Unavailable

10

NUT 6MM

311B0600

Unavailable

11

BRACKET-SIGNAL LAMP,FR

23051-1004

Unavailable

12

BRACKET-SIGNAL LAMP,FR

23051-1013

$20.88

13

SCREW PAN HEAD 3X5

220B0305A

$0.54

14

WIRE-LEAD,SIGNAL LAMP

26011-061

Unavailable

15

DAMPER

23066-003

$7.58

16

COVER-WIRING HARNESS

26009-004

Unavailable

17

BOLT

110N0516

Unavailable

18

WASHER SPRING 5MM

461F0500

Unavailable

19

WASHER-PLAIN-SMALL,5MM

410D0500

$1.20

20

LAMP ASSY,TURN SIGNAL

23040-038

Unavailable

21

BRACKET,TURN SIGNAL

23051-047

$100.63

22

WASHER PLAIN 12MM

411B1200

Unavailable

23

WASHER-SPRING,12MM

461F1200

Unavailable

24

NUT,12MM

311B1200

$2.42
